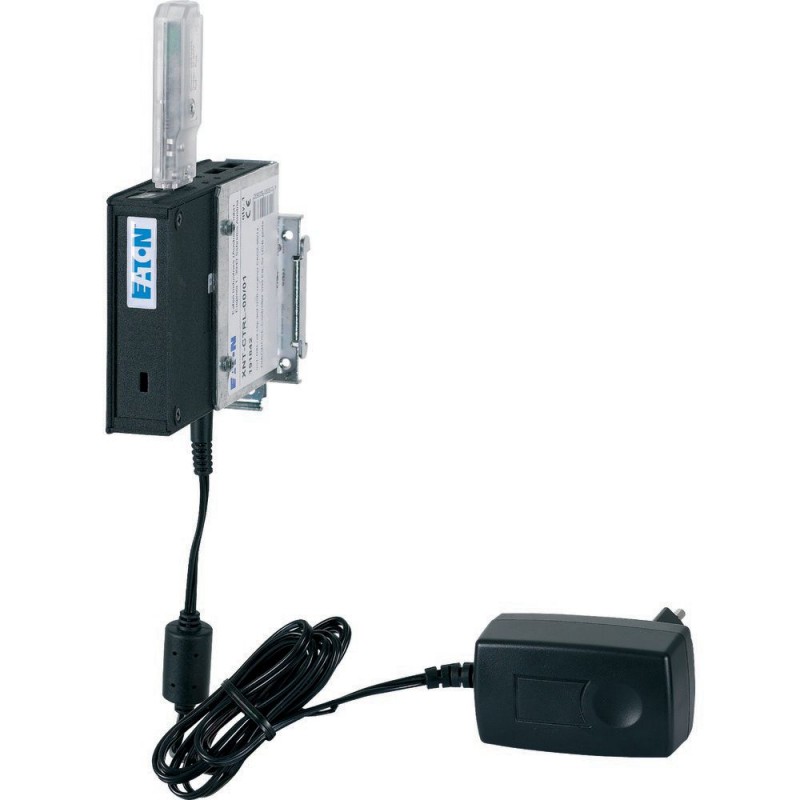

XNT-CTRL-00/01 191842 Y7-191842 EATON ELECTRIC Контроллер для мониторинга температуры
XNT-CTRL-00/01
191842
Y7-191842
EATON-MOELLER
Контроллер для мониторинга температуры
СНТ-CTRL-00/01
Контроллер
Промышленный компьютер для определения температуры окружающего звука и температуры шины с помощью ДИАГНОСТИЧЕСКИХ датчиков, в том числе USB приемника CZOZ-00/14 для диапазона частот 868 МГц; USB автомагнитола XNT-REC в комплект поставки не входит!
Программируемые логические контроллеры (ПЛК) > Промышленный ПК
Промышленные ящики и шкафы
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами EATON-MOELLER
Best sellers
▲Описание
▲Контроллер
Технические характеристики согласно ETIM 7.0
PLC's (EG000024) / Industrial PC (EC001413)
Компьютеры. Радио-, теле-, видео-, фототехника / Computer system for industrial use / Industrial PC / Industrial PC (floor model) ([email protected] [ACM009011])
Supply voltage AC 50 Hz
220 - 230 V
Supply voltage AC 60 Hz
220 - 230 V
Supply voltage DC
10 - 15 V
Voltage type of supply voltage
DC
Number of HW-interfaces industrial Ethernet
0
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
1
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
5
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
1
Number of HW-interfaces other
0
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
Suitable for operating system Windows 9x
No
Suitable for operating system Windows 2000
No
Suitable for operating system Windows XP
No
Suitable for operating system Windows ME
No
Suitable for operating system Windows CE
No
Suitable for operating system Linux
Yes
Suitable for operating system Windows Vista
No
Suitable for operating system Windows 2003 Server
No
Suitable for operating system Windows 7
Yes
Suitable for operating system Windows 8
Yes
Suitable for other operating system
No
Preinstalled operating system
None
Max. main memory
8000 MB
Degree of protection (IP)
IP30
Degree of protection (NEMA)
Operation temperature
-20 - +70 °C
Construction type housing
Other
With hard disc
Yes
Processor type
Other
Processor clock rate
2.2 GHz
With graphic card
Yes
With sound card
Yes
With optical drive
Yes
With floppy disc drive
No
Number of free AGP-slots
0
Number of free PCI-slots
0
With other storage media
No
Number of free ISA-slots
0
Number of free PCMCIA-slots
0
Number of other free slots
0
Rail mounting possible
Yes
Wall mounting/direct mounting
No
Front build in possible
No
Rack-assembly possible
No
Number of storage media bays
1
Suitable for safety functions
No
Width
45 mm
Height
85 mm
Depth
125 mm
Memory capacity hard disc
0.12 TB
| Характеристика | Значение |
|---|---|
| Supply voltage AC 50 Hz (EF007532) | 220 V |
| Supply voltage AC 60 Hz (EF007533) | 220 V |
| Supply voltage DC (EF007534) | 10 V |
| Voltage type (supply voltage) (EF002991) | DC |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 1 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces USB (EF003025) | 5 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces wireless (EF006933) | 1 |
| Number of HW-interfaces other (EF003027) | 0 |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for EtherCAT (EF017564) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for Modbus (EF003057) | Yes |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | Yes |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for other bus systems (EF003062) | No |
| Radio standard Bluetooth (EF007178) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Radio standard GPRS (EF008523) | No |
| Radio standard GSM (EF008524) | No |
| Radio standard UMTS (EF008525) | No |
| IO link master (EF007298) | No |
| Suitable for operating system Windows 9x (EF003041) | No |
| Suitable for operating system Windows 2000 (EF003043) | No |
| Suitable for operating system Windows XP (EF003044) | No |
| Suitable for operating system Windows ME (EF003045) | No |
| Suitable for operating system Windows CE (EF003046) | No |
| Suitable for operating system Linux (EF003047) | Yes |
| Suitable for operating system Windows Vista (EF007091) | No |
| Suitable for operating system Windows 2003 Server (EF007090) | No |
| Suitable for operating system Windows 7 (EF008526) | Yes |
| Suitable for operating system Windows 8 (EF009923) | Yes |
| Suitable for other operating system (EF003048) | No |
| Preinstalled operating system (EF007535) | None |
| Max. main memory (EF003123) | 8000 MB |
| Degree of protection (IP) (EF005474) | IP30 |
| Degree of protection (NEMA) (EF011959) | Other |
| Operating temperature (EF002393) | -20 °C |
| Construction type housing (EF004008) | Other |
| With hard disc (EF002000) | Yes |
| Processor type (EF003122) | Other |
| Processor clock rate (EF011957) | 2.2 GHz |
| With graphic card (EF003130) | Yes |
| With sound card (EF003131) | Yes |
| With optical drive (EF012515) | Yes |
| With floppy disc drive (EF003128) | No |
| Number of free AGP-slots (EF003133) | 0 |
| Number of free PCI-slots (EF003134) | 0 |
| With other storage media (EF003129) | No |
| Number of free ISA-slots (EF003135) | 0 |
| Number of free PCMCIA-slots (EF003136) | 0 |
| Number of other free slots (EF003137) | 0 |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | No |
| Rack-assembly possible (EF007018) | No |
| Number of storage media bays (EF011958) | 1 |
| Suitable for safety functions (EF001597) | No |
| Width (EF000008) | 45 mm |
| Height (EF000040) | 85 mm |
| Depth (EF000049) | 125 mm |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| XNT-CTRL-00/01 Y7-191842 191842 RU_191842.pdf | 156 Kbytes |
|
