EATON - MOELLER XLSD5S163 193076 Y7-193076 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

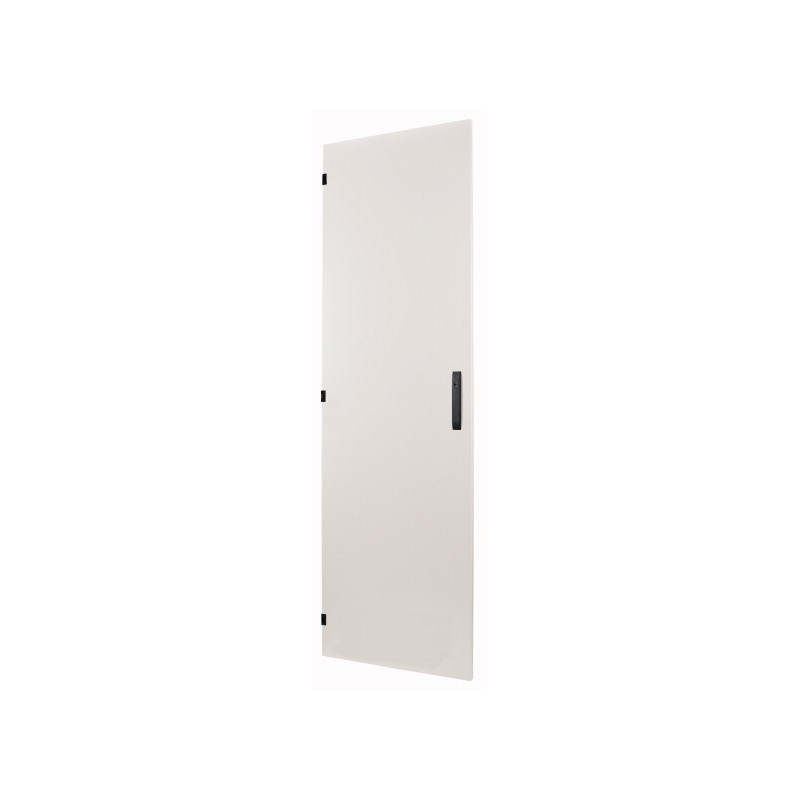

XLSD5S163 193076 Y7-193076 EATON ELECTRIC Door, closed IP55, left or right hinges, HxW 1600 x 300mm, grey

Reference: XLSD5S163

Code: 193076

Catalog Number: Y7-193076

Manufacturer: EATON - MOELLER

Description:

Door, closed IP55, left or right hinges, HxW = 1600 x 300mm, grey
XLSD5S163
Section door, closed IP55, left or right-hinged, HxW = 1600 x 300mm, grey
Section door, left or right-hinged, closed IP55, foam gasket, locking with two way keybit 3mm, powder painting in RAL 7035 structured finish, Height 1600mm, Width 300mm

Categories:

  • Cabinet enclosures > Door/operating panel (switchgear cabinet)
  • EATON - MOELLER > Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by EATON - MOELLER

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 176,47 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

EL-Nummer (Norway)
2456864
Section door, closed IP55, left or right-hinged, HxW = 1600 x 300mm, grey
Section door, left or right-hinged, closed IP55, foam gasket, locking with two way keybit 3mm, powder painting in RAL 7035 structured finish, Height 1600mm, Width 300mm

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Door/operating panel (switchgear cabinet) (EC000747)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Door (electrical cabinet) / Door/operating panel (enclosure) (ecl@ss10.0.1-27-18-22-04 [ACN614011])
Model
Stop door
Version as glazed door
No
Version as door for disconnecting switch interlocking
No
Width
292 mm
Height
1540 mm
Depth
27 mm
EMC-version
Yes
Material
Steel
Surface finishing
Powder coating
Colour
Grey
Degree of protection (IP)
IP55
Degree of protection (NEMA)

ETIM for 193076 Cabinets and enclosures (EC000747)

Feature nameModel (EF000010)
Feature valueStop door
Feature nameVersion as glazed door (EF006966)
Feature valuefalse
Feature nameVersion as door for disconnecting switch interlocking (EF006967)
Feature valuefalse
Feature nameWidth (EF000008)
Feature value292 mm
Feature nameHeight (EF000040)
Feature value1540 mm
Feature nameDepth (EF000049)
Feature value27 mm
Feature nameEMC-version (EF001062)
Feature valuetrue
Feature nameMaterial (EF002169)
Feature valueSteel
Feature nameSurface finishing (EF006569)
Feature valuePowder coating
Feature nameColour (EF000007)
Feature valueGrey
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP55
Feature nameDegree of protection (NEMA) (EF011959)
Feature value4X

DATASHEET - PDF
