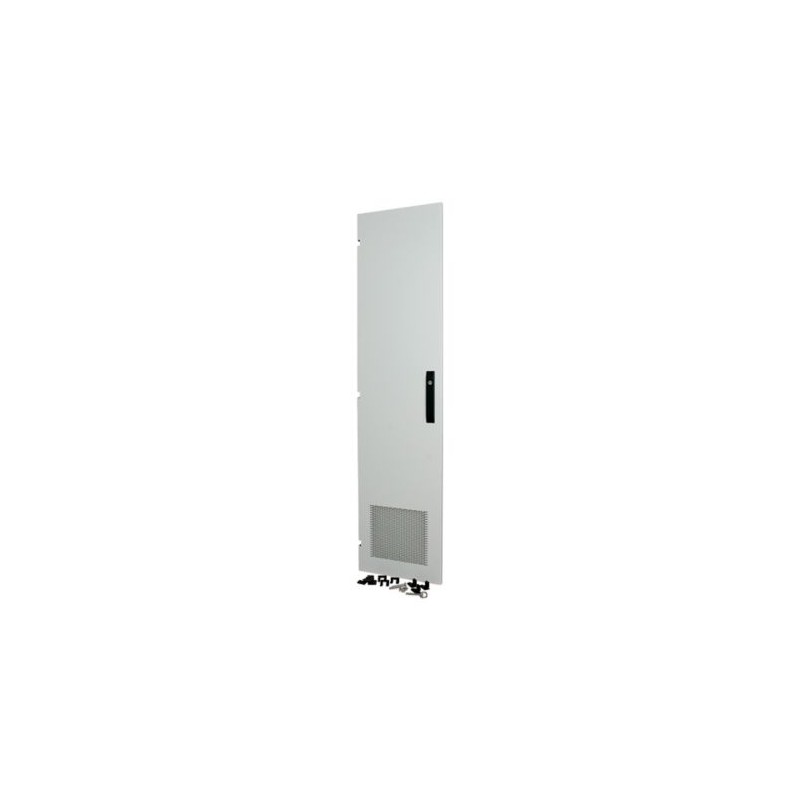

EATON - MOELLER XLSD3L166 188002 Y7-188002 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

XLSD3L166 188002 Y7-188002 EATON ELECTRIC Door, ventilated IP31, hinges on the left, HxW 1600 x 600mm, grey

Reference: XLSD3L166

Code: 188002

Catalog Number: Y7-188002

Manufacturer: EATON - MOELLER

Description:

Door, ventilated IP31, hinges on the left, HxW = 1600 x 600mm, grey
XLSD3L166
Section door, ventilated IP31, hinges left, HxW = 1600 x 600mm, grey
Section door, hinges left, ventilated IP31, foam gasket, locking with two way keybit 3mm, powder painting in RAL 7035 structured finish, Height 1600mm, Width 600mm

Categories:

  • Cabinet enclosures > Door/operating panel (switchgear cabinet)
  • EATON - MOELLER > Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by EATON - MOELLER

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 232,72 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

General specifications

Product Name
Eaton xEnergy Light LV systems LV switchgear
Catalog Number
188002
Model Code
XLSD3L166
EAN
4015081856879
Product Length/Depth
25 mm
Product Height
1540 mm
Product Width
592 mm
Product Weight
18.1 kg
Compliances
RoHS conform

Product specifications

Features
EMC-version
Surface finishing
Powder coating
Color
Gray
Degree of protection
IP31
NEMA Other
Material
Steel
Model
Stop door

ETIM for 188002 Cabinets and enclosures (EC000747)

Feature nameModel (EF000010)
Feature valueStop door
Feature nameVersion as glazed door (EF006966)
Feature valueNo
Feature nameVersion as door for disconnecting switch interlocking (EF006967)
Feature valueNo
Feature nameWidth (EF000008)
Feature value592 mm
Feature nameHeight (EF000040)
Feature value1540 mm
Feature nameDepth (EF000049)
Feature value25 mm
Feature nameEMC-version (EF001062)
Feature valueYes
Feature nameMaterial (EF002169)
Feature valueSteel
Feature nameSurface finishing (EF006569)
Feature valuePowder coated
Feature nameColour (EF000007)
Feature valueGrey
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP31

DATASHEET - PDF
