EATON - MOELLEREnclosures XPMMB0603 166239 Y7-166239 EATON ELECTRIC Partition, devices-/devices area, for W 600mm

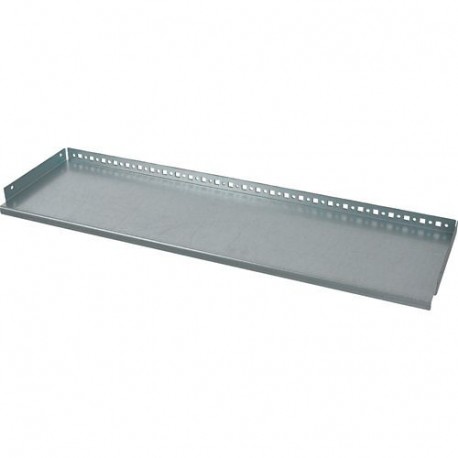

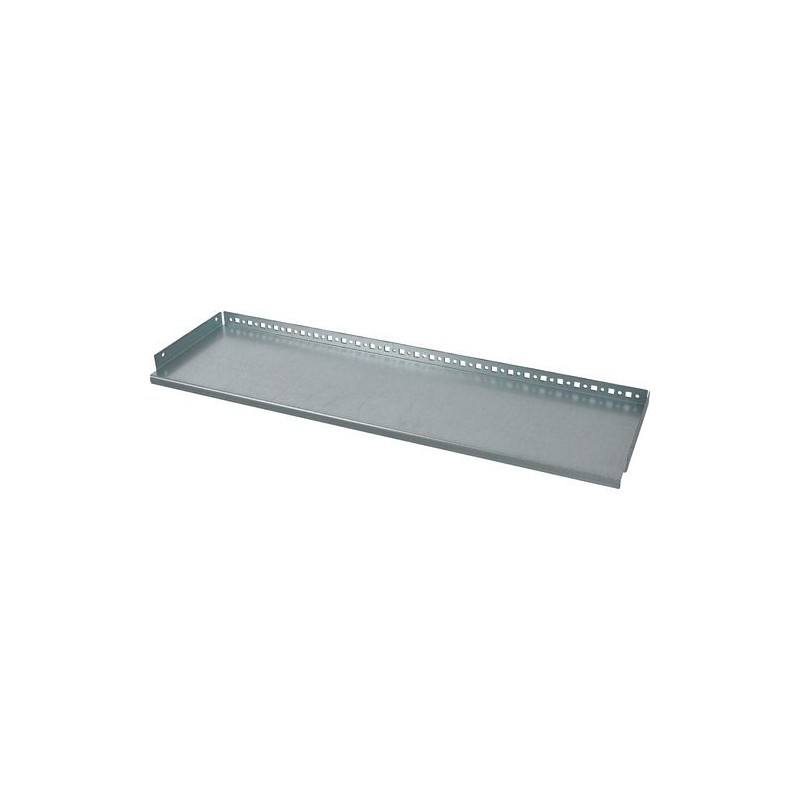

EATON - MOELLER XPMMB0603 166239 Y7-166239 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

XPMMB0603 166239 Y7-166239 EATON ELECTRIC Partition, devices-/devices area, for W 600mm

Reference: XPMMB0603

Code: 166239

Catalog Number: Y7-166239

Manufacturer: EATON - MOELLER

Description:

Partition, devices-/devices area, for W=600mm
XPMMB0603
Eaton xEnergy Main LV systems LV switchgear. Partition, devices-/devices area, for W=600mm
Accessory for XP sections, internal Partitions, component mounting area/component mounting area partition (for IZMX40), EVEN/OPPO/Fest + is used, withdrawable only if there is a section depth of 800 mm, shape 4 in OPPO for section depths of 600 mm, section width 600 mm

Categories:

  • Cabinet enclosures > Divider panel (switchgear cabinet)
  • EATON - MOELLER > Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by EATON - MOELLER

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 22,61 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
166239
Model Code
XPMMB0603
EAN
4015081627660
Product Length/Depth
510 mm
Product Height
40 mm
Product Width
254 mm
Product Weight
1.15 kg
Compliances
Contact Manufacturer
RoHS conform

Product specifications

Construction type
Assembly kit
Surface finishing
Galvanized
Color
Stainless steel
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
600 mm
Material
Steel
Suitable for
Internal separation form 3b
Internal separation form 3a
Internal separation form 4b
Internal separation form 4a

ETIM for 166239 Cabinets and enclosures (EC002525)

Feature nameModular spacing (EF000394)
Feature value12.5 mm
Feature nameSuitable for enclosure building width (EF000326)
Feature value600 mm
Feature nameSuitable for enclosure building depth (EF000327)
Feature value0 mm
Feature nameWidth (EF000008)
Feature value254 mm
Feature nameHeight (EF000040)
Feature value40 mm
Feature nameMaterial (EF002169)
Feature valueSteel
Feature nameSurface finishing (EF006569)
Feature valueGalvanised
Feature nameColour (EF000007)
Feature valueStainless steel
Feature nameRAL-number (EF000116)
Feature value0
Feature nameWith cable entry (EF000325)
Feature valueNo
Feature nameNumber of height units (EF003561)
Feature value0
Feature nameWith lock (EF006306)
Feature valueNo
Feature nameConstruction type (EF000767)
Feature valueAssembly kit
Feature nameFor internal separation form 2a (EF009586)
Feature valueNo
Feature nameFor internal separation form 2b (EF009587)
Feature valueNo
Feature nameFor internal separation form 3a (EF009588)
Feature valueYes
Feature nameFor internal separation form 3b (EF009589)
Feature valueYes
Feature nameFor internal separation form 4a (EF009590)
Feature valueYes
Feature nameFor internal separation form 4b (EF009591)
Feature valueYes

DATASHEET - PDF

Title
Size
Type
XPMMB0603 Y7-166239 166239 EN_166239.pdf
128 Kbytes
PDF CATALOGUE EATON EN
38 Mbytes
