M22-I2-M1

216529

Y7-216529

EATON-MOELLER

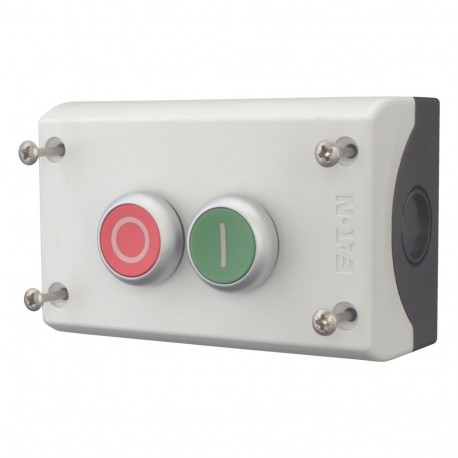

Пост с двумя копками, 2 размыкающих + 2 замыкающих контакта с обозначениями O I

М22-И2-М1

Housing, Pushbutton actuators, Enclosure, momentary, 2 NC, 2 N/O, Screw connection, Number of locations 2, Grey, inscribed, Bezel: titanium

Корпус, Модельный ряд: RMQ-Titan, Блок в сборе, Дизайн: Корпус, мгновенно, Тип подключения: Винтовое соединение, Количество мест: 2 шт., Цвет Крышки корпуса: Серый, Цвет RAL Значение: RAL 7035, Степень защиты: IP66, IP67, IP69K, Подключение к SmartWire-DT: нет, Контакты N/C = Нормально замкнуты: 2 NC, Контакты N/O = Нормально разомкнуты: 2 N/O, Примечания к контактам = функция безопасности, при принудительном открывании по IEC/EN 60947-5-1, Перемещение привода и усилие срабатывания согласно DIN EN 60947-5-1, K.5.4.1: мм 4.8, Максимальный ход: мм 5.7, Минимальное усилие для принудительного открывания: N 15, Передние размеры: 120 x 80, Стандарты: IEC/EN 60947, VDE 0660 , Монтажное положение: По мере необходимости

Подробнее


Низковольтное оборудование > Комбинация устройств управления в корпусе (пост кнопочный в сборе)

Средства управления и сигнализации

Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами EATON-MOELLER

Общая стоимость: $47.17
Цена за единицу: $47.17
Эта цена за единицу и является чистая стоимость (не включая налоги, если это применимо).

Если наша цена не самая лучшая, попросите нас о цене бюджетный запрос

Related products

▲

обычно покупают вместе

▲

Best sellers

▲

Описание

▲


Housing, Pushbutton actuators, Enclosure, momentary, 2 NC, 2 N/O, Screw connection, Number of locations 2, Grey, inscribed, Bezel: titanium
Housing, Product range: RMQ-Titan, Complete unit, Design: Enclosure, momentary, Connection type: Screw connection, Number of locations: 2 Qty., Color Enclosure covers: Grey, Color RAL Value: RAL 7035, Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 2 NC, Contacts N/O = Normally open: 2 N/O, Contacts Notes = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.8, Maximum travel: mm 5.7, Minimum force for positive opening: N 15, Front dimensions: 120 x 80, Standards: IEC/EN 60947, VDE 0660 , Mounting position: As required

General specifications
Product name
Eaton Moeller® series M22 Housing
Part no.
M22-I2-M1
EAN
4015082165291
Product Length/Depth
80 millimetre
Product height
70 millimetre
Product width
120 millimetre
Product weight
0.255 kilogram
Compliances
CE Marked
Certifications
CSA Std. C22.2 No. 14-05
CSA Std. C22.2 No. 94-91
UL 508
EN 60947-5
VDE
IEC 60947-5
CSA-C22.2 No. 14-05
VDE 0660
UL
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
UL Category Control No.: NKCR
IEC/EN 60947-5
UL File No.: E29184
CSA
CE
CSA File No.: 012528
IEC/EN 60947
Product Tradename
M22
Product Type
Housing
Product Sub Type
None
Catalog Notes
Contacts with safety function, by positive opening to IEC/EN 60947-5-1
Features & Functions
Bezel color
Titanium
Color
Light gray
Design
Enclosure
Enclosure color
Gray
Enclosure material
Plastic
Inscription
Inscribed
Knockouts
1 x M20 (cable entry knockout at the side)
2 x M25/20 (cable entry knockouts at the side)
2 x M20 (cable entry knockouts at the base)
Number of locations
2
RAL-number
7035
General information
Degree of protection
IP67/IP69K
NEMA 4X, 13
Lifespan
5,000,000 mechanical Operations
Operating frequency
3600 Operations/h
Product category
RMQ-Titan
Size
Front dimensions: 120 x 80 mm
Type
Pushbutton actuator
Ambient conditions, mechanical
Mounting position
As required
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Electrical rating
Rated control supply voltage (Us) at AC, 50 Hz - min
115 V
Rated control supply voltage (Us) at AC, 50 Hz - max
500 V
Rated control supply voltage (Us) at AC, 60 Hz - min
115 V
Rated control supply voltage (Us) at AC, 60 Hz - max
500 V
Rated control supply voltage (Us) at DC - min
24 V
Rated control supply voltage (Us) at DC - max
220 V
Short-circuit rating
Rated conditional short-circuit current (Iq)
1 kA
Communication
Connection to SmartWire-DT
No
Connection type
Screw connection
Actuator
Actuating force
5 N
Actuator color
Green, red
Actuator function
Momentary
Actuator travel and actuation force (DIN EN 60947-5-1)
4.8 mm
Knob travel
5.7 mm
Contacts
Force for positive opening - min
15 N
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
2
Number of contacts (normally open contacts)
2
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.11 W
Rated operational current for specified heat dissipation (In)
6 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Technical data ETIM 8.0

Low-voltage industrial components (EG000017) / Control circuit devices combination in enclosure (EC000225)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Command and alarm device combination in housing ([email protected] [AKF034014])
Number of command positions
2
Number of push buttons
2
Number of indicator lights
0
Number of key switches
0
Number of selector switches
0
Number of mushroom-shaped push-buttons
0
Suitable for emergency stop
No
Rated control supply voltage Us at AC 50HZ
115 - 500 V
Rated control supply voltage Us at AC 60HZ
115 - 500 V
Rated control supply voltage Us at DC
24 - 220 V
Colour housing cover
Grey
Material housing
Plastic
Number of contacts as normally open contact
2
Number of contacts as normally closed contact
2
Number of contacts as change-over contact
0
Degree of protection (IP)
IP67/IP69K
Degree of protection (NEMA)
4X, 13

ETIM for 216529 Low-voltage industrial controls and switchgear (EC000225)
Характеристика Значение
Number of command positions (EF001372) 2
Number of push buttons (EF005558) 2
Number of indicator lights (EF001965) 0
Number of key switches (EF005590) 0
Number of selector switches (EF005567) 0
Number of mushroom-shaped push-buttons (EF006670) 0
Suitable for emergency stop (EF001433) No
Rated control supply voltage AC 50 Hz (EF003978) 115 V
Rated control supply voltage AC 60 Hz (EF003979) 115 V
Rated control supply voltage DC (EF003980) 24 V
Colour housing cover (EF001373) Grey
Housing colour (EF000136) Grey
Housing material (EF001596) Plastic
Number of contacts as normally open contact (EF008256) 2
Number of contacts as normally closed contact (EF008255) 2
Number of contacts as change-over contact (EF008257) 0
Degree of protection (IP) (EF005474) IP67/IP69K
Degree of protection (NEMA) (EF011959) 4X, 13

Datasheet - PDF

▲
Заглавие: Размер: Тип:
PDF EATON COMMAND INDICATION EN.pdf 24 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
M22-I2-M1 Y7-216529 216529 RU_216529.pdf 116 Kbytes M22-I2-M1 Y7-216529 216529 RU_216529.pdf
