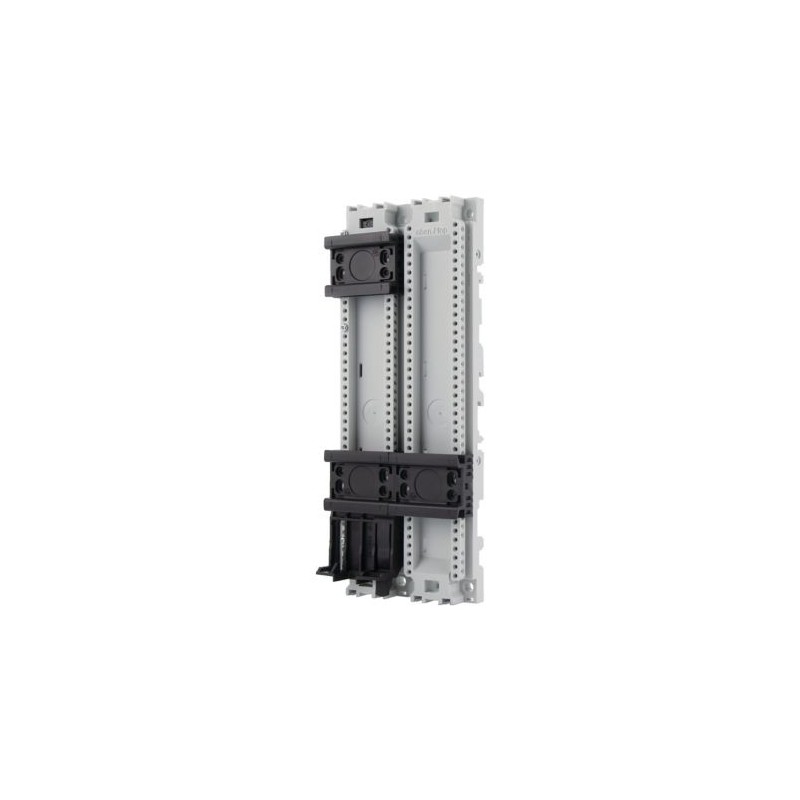

PKZM0-XC90-2 149148 Y7-149148 EATON ELECTRIC ПКЗМ0-ХС90-2 Увеличить
Изображения носят исключительно иллюстративный. Пожалуйста, ознакомьтесь с техническим паспортом.

PKZM0-XC90-2 149148 Y7-149148 EATON ELECTRIC ПКЗМ0-ХС90-2

PKZM0-XC90-2

149148

Y7-149148

EATON-MOELLER

2

ПКЗМ0-ХС90-2

Top-hat rail adapter plate, W=2x45mm, 2TS

90-миллиметровый адаптер верхней шляпы, два монтажных направляющих, может использоваться для реверсивного стартера с PKZM0 / PKE и контактора DILM17 до DILM38

Подробнее


Низковольтное оборудование > Аксессуары для низковольтного оборудования

Защитные выключатели двигателя

Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами EATON-MOELLER

Общая стоимость: $41.22
Цена за единицу: $20.61
Эта цена за единицу и является чистая стоимость (не включая налоги, если это применимо).

Если наша цена не самая лучшая, попросите нас о цене бюджетный запрос

Best sellers

▲

Описание

▲


Top-hat rail adapter plate, W=2x45mm, 2TS
90mm top-hat rail adapter, two mounting rails, can be used for reversing starter with PKZM0 / PKE and contactor DILM17 to DILM38

Delivery program

Product range
Accessories
Accessories
Top hat rail adapter plate
For reversing starters
Two 45 mm-wide adapter plates
For use with
PKZM0, PKE

Design verification as per IEC/EN 61439

Technical data for design verification
Rated operational current for specified heat dissipation [In]
0 A
Heat dissipation per pole, current-dependent [Pvid]
0 W
Equipment heat dissipation, current-dependent [Pvid]
0 W
Static heat dissipation, non-current-dependent [Pvs]
0 W
Heat dissipation capacity [Pdiss]
0 W
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+55 °C
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9 Insulation properties10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9 Insulation properties10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9 Insulation properties10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Technical data ETIM 8.0

Low-voltage industrial components (EG000017) / Accessories/spare parts for low-voltage switch technology (EC002498)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Component for low-voltage switching technology / Component for low-voltage switch technology (accessories) ([email protected] [AKN570013])
Type of accessory/spare part
Adapter plate
Accessory
Yes
Spare part
No

Dimensions

1210DIM-95

ETIM for 149148 Low-voltage industrial controls and switchgear (EC002498)
Характеристика Значение
Type of accessory/spare part (EF000215) Adapter plate
Accessory (EF013236) Yes
Spare part (EF013237) No

Datasheet - PDF

▲
Заглавие: Размер: Тип:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
PKZM0-XC90-2 Y7-149148 149148 RU_149148.pdf 214 Kbytes PKZM0-XC90-2 Y7-149148 149148 RU_149148.pdf
