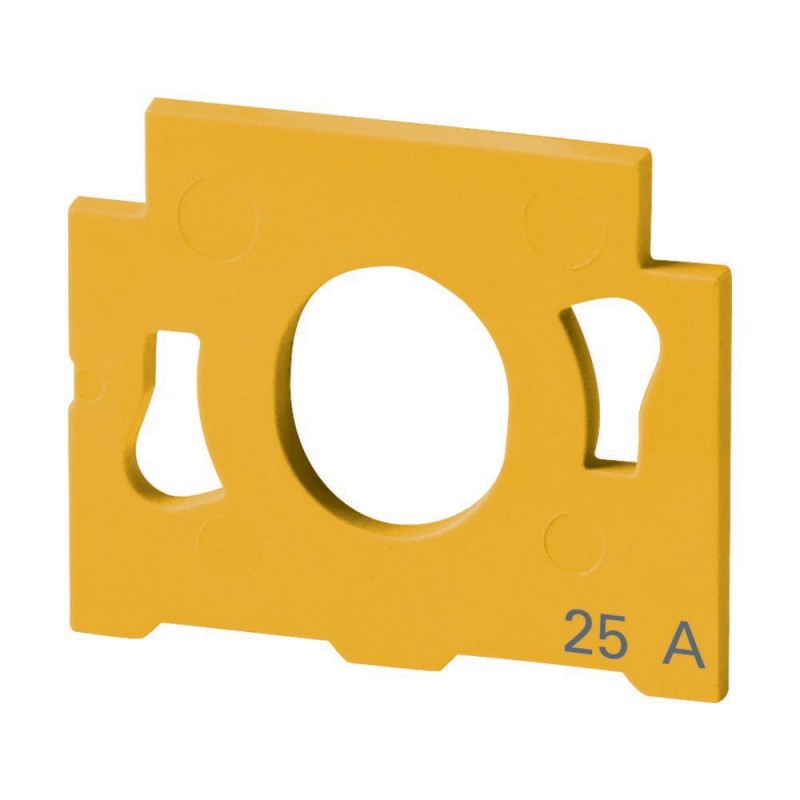

LPC25-ADAPTER 1713626 EATON ELECTRIC Крепежный штифт 25А
LPC25-ADAPTER
1713626
EATON-MOELLER
10
Крепежный штифт 25А
Fixing rating plug 25A
Основы промышленных предохранителей
* Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами EATON-MOELLER
Best sellers
▲Описание
▲Fixing rating plug 25A
fuse switch-disconnector 25A, D II, adapter plate
General specifications
Product name
Eaton LPC Accessory Adapter plate
Part no.
LPC25-ADAPTER
EAN
8711426640009
Product Length/Depth
140 millimetre
Product height
5 millimetre
Product width
100 millimetre
Product weight
0.002 kilogram
Compliances
CE
Product Tradename
LPC
Product Type
Accessory
Product Sub Type
Adapter plate
Globally Marketable
Yes
Features & Functions
Color
Yellow
General information
Type
Adapter plate
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
50 °C
Electrical rating
Rated operational current (Ie) - max
25 A
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Not applicable.
10.12 Electromagnetic compatibility
Not applicable.
10.13 Mechanical function
Not applicable.
Technical data ETIM 8.0
Circuit breakers and fuses (EG000020) / D-system screw adapter (EC000085)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse systems / Diazed screw adapter ([email protected] [AKE285013])
Construction size
DII
Rated current
25 A
Colour code
Yellow
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| LPC25-ADAPTER 1713626 RU_1713626.pdf | 106 Kbytes |
|
