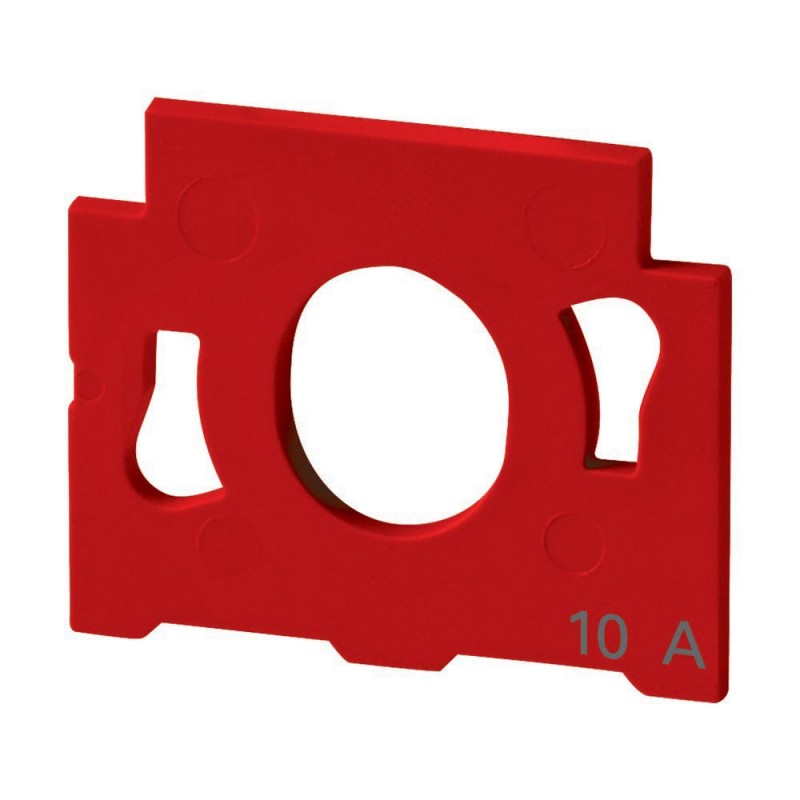

LPC10-ADAPTER 1713623 EATON ELECTRIC Крепежный штифт 10А
LPC10-ADAPTER
1713623
EATON-MOELLER
10
Крепежный штифт 10А
Fixing rating plug 10A
Основы промышленных предохранителей
* Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами EATON-MOELLER
Описание
▲Fixing rating plug 10A
fuse switch-disconnector 10A, D II, adapter plate
General specifications
Product name
Eaton LPC Accessory Adapter plate
Part no.
LPC10-ADAPTER
EAN
8711426527119
Product Length/Depth
95 millimetre
Product height
2 millimetre
Product width
76 millimetre
Product weight
1.652 gram
Compliances
CE
Product Tradename
LPC
Product Type
Accessory
Product Sub Type
Adapter plate
Globally Marketable
Yes
Features & Functions
Color
Red
General information
Type
Adapter plate
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
50 °C
Electrical rating
Rated operational current (Ie) - max
10 A
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Not applicable.
10.12 Electromagnetic compatibility
Not applicable.
10.13 Mechanical function
Not applicable.
Technical data ETIM 8.0
Circuit breakers and fuses (EG000020) / D-system screw adapter (EC000085)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse systems / Diazed screw adapter ([email protected] [AKE285013])
Construction size
DII
Rated current
10 A
Colour code
Red
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| LPC10-ADAPTER 1713623 RU_1713623.pdf | 106 Kbytes |
|
