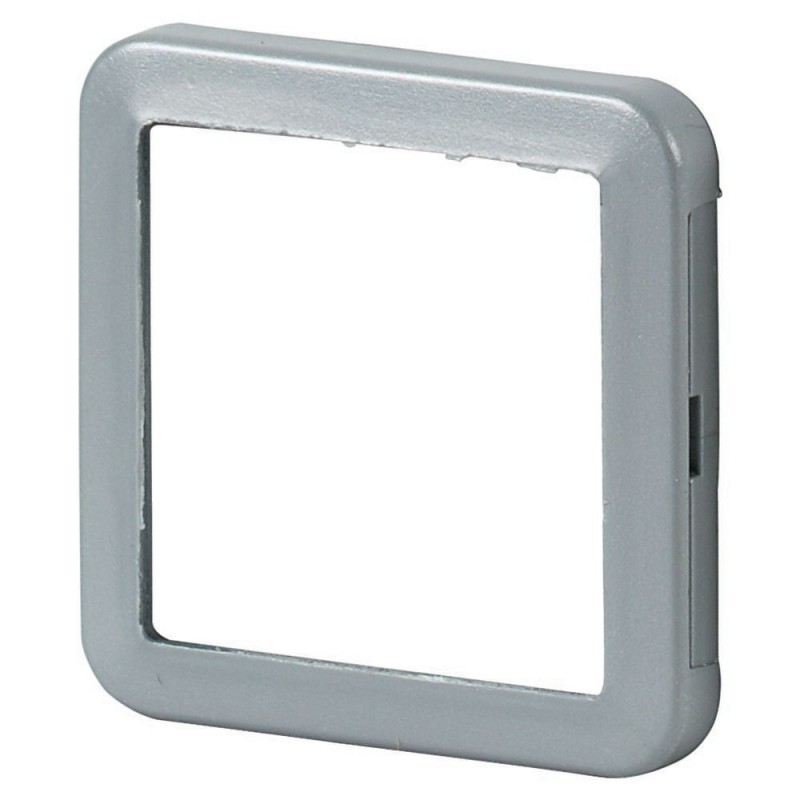

FR25 025415 Y7-25415 EATON ELECTRIC Рамка Увеличить
Изображения носят исключительно иллюстративный. Пожалуйста, ознакомьтесь с техническим паспортом.

FR25 025415 Y7-25415 EATON ELECTRIC Рамка

FR25

025415

Y7-25415

EATON-MOELLER

Рамка

Передняя рама; к видно из вопроса 25

Front frame, for Q25

Запасная внешняя передняя рама для пилотных устройств RMQ16, предназначенная для полного окружения кнопок. Подходит для всех изделий со стороной 25 мм и артикулами Q25DR-, Q25LT-, Q25LTR-.

Подробнее


Низковольтное оборудование > Комплектующие для устройств управления и сигнализации

Средства управления и сигнализации

Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами EATON-MOELLER

* Эта статья может устареть. Если вы заинтересованы, Пожалуйста, запросите для нас, чтобы проверить, и мы сообщим вам, есть ли в наличии какие-либо единицы. Если их больше нет, один из наших технических специалистов будет искать альтернативу с аналогичными характеристиками.

Если наша цена не самая лучшая, попросите нас о цене бюджетный запрос

Best sellers

Описание



Front frame, for Q25
Spare exterior front frame for RMQ16 pilot devices, designed to fully surround the buttons. Suitable for all products with a 25-mm side length and part no. Q25DR-, Q25LT-, Q25LTR-.

Delivery program

Product range
Accessories
Single unit/Complete unit
Single unit
Connection to SmartWire-DT
no

Design verification as per IEC/EN 61439

Technical data for design verification
Rated operational current for specified heat dissipation [In]
0 A
Heat dissipation per pole, current-dependent [Pvid]
0 W
Equipment heat dissipation, current-dependent [Pvid]
0 W
Static heat dissipation, non-current-dependent [Pvs]
0 W
Heat dissipation capacity [Pdiss]
0 W
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2 Strength of materials and parts10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9 Insulation properties10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9 Insulation properties10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9 Insulation properties10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Technical data ETIM 8.0

Low-voltage industrial components (EG000017) / Accessories/spare parts for command devices (EC002024)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Command and alarm devices (accessories) ([email protected] [ACO037010])
Type of electrical accessory/spare part
Other
Type of mechanical accessory/spare part
Other

ETIM for 025415 Low-voltage industrial controls and switchgear (EC002024)
Характеристика Значение
Type of electrical accessory/spare part (EF005722) Other
Type of mechanical accessory/spare part (EF005994) Other
Accessory (EF013236) No
Spare part (EF013237) Yes

Datasheet - PDF

Заглавие: Размер: Тип:
PDF EATON COMMAND INDICATION EN.pdf 24 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
FR25 Y7-25415 025415 RU_025415.pdf 147 Kbytes   FR25 Y7-25415 025415 RU_025415.pdf
