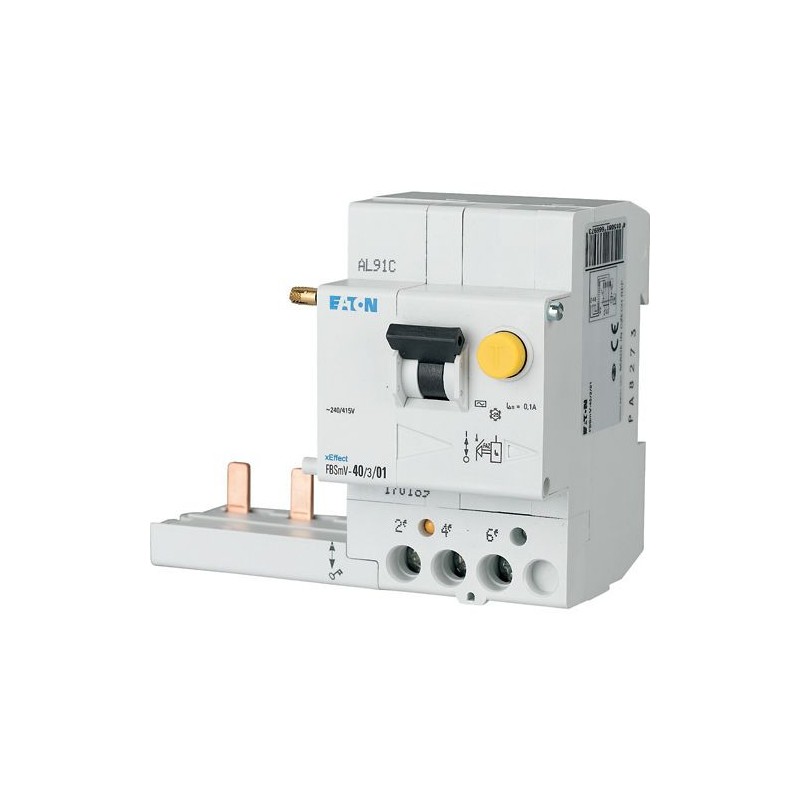

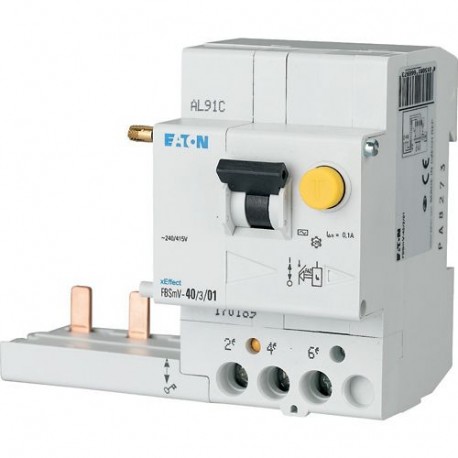

FBSMV-40/3/1

170195

Y7-170195

EATON-MOELLER

Держатель предохранителей, высокая скорость, 630 A, AC 1000 V, compact DIN 1, DIN 1, DIN 2, DIN 3, DIN

ФБСМВ-40/3/1

Residual-current circuit breaker trip block for FAZ, 40A, 3p, 1000mA, type AC

Подробнее


Автоматические выключатели и предохранители > Дифференциальный выключатель (УЗО)

Модульное распределительное устройство - Промышленное

Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами EATON-MOELLER

Общая стоимость: $260.43
Цена за единицу: $260.43
Эта цена за единицу и является чистая стоимость (не включая налоги, если это применимо).

Если наша цена не самая лучшая, попросите нас о цене бюджетный запрос

Related products

▲

Best sellers

▲

Описание

▲


Residual-current circuit breaker trip block for FAZ, 40A, 3p, 1000mA, type AC
Attachable residual current circuit-breaker unit FBSmV, 3 pole, Rated current In: 40 A, Rated short-circuit strength Icn:, Rated fault current IΔN: 1 A, Switchgear for industrial and advanced commercial applications

General specifications
Product name
Eaton Moeller series xEffect - FBSmV RCCB add-on unit
Part no.
FBSMV-40/3/1
EAN
4015081667024
Product Length/Depth
90 millimetre
Product height
75 millimetre
Product width
107.5 millimetre
Product weight
0.228 kilogram
Compliances
RoHS conform
Certifications
EN45545-2
IEC 61373
IEC/EN 61009
Product Tradename
FBSmV
Product Type
RCCB add-on unit
Product Sub Type
None
Delivery program
Application
Switchgear for industrial and advanced commercial applications
xEffect - Switchgear for industrial and advanced commercial applications
Number of poles
Three-pole
Tripping time
Non-delayed
Amperage Rating
40 A
Rated short-circuit strength
Same as connected FAZ up to max. 10 kA
Fault current rating
1000 mA
Sensitivity type
AC current sensitive
Impulse withstand current
Partly surge-proof 250 A
Type
Ambient temperature hint: Starting at 40 °C, the max. permissible continuous current decreases by 3% for every 1 °C
Technical Data - Electrical
Voltage rating - min
240 V
Voltage rating - max
415 V
Rated operational voltage (Ue) - max
415 V
Rated insulation voltage (Ui)
440 V
Rated impulse withstand voltage (Uimp)
4 kV
Rated fault current - min
1 A
Rated fault current - max
1 A
Frequency rating
50 Hz
Leakage current type
AC
Rated short-time withstand current (Icw)
0 kA
10 kA
Surge current capacity
0.25 kA
Pollution degree
2
Technical Data - Mechanical
Frame
45 mm
Width in number of modular spacings
6
Built-in width (number of units)
107.5 mm (3 SU)
Built-in depth
70 mm
Mounting Method
DIN rail
Permanent screw connection with FAZ
Degree of protection
IP20
IP20, IP40 with suitable enclosure
Terminals (top and bottom)
Lift terminals
Connectable conductor cross section (solid-core) - min
0.75 mm²
Connectable conductor cross section (solid-core) - max
35 mm²
Connectable conductor cross section (multi-wired) - min
0.75 mm²
Connectable conductor cross section (multi-wired) - max
35 mm²
Terminal protection
Finger and hand touch safe, DGUV VS3, EN 50274
Busbar material thickness
0.8 mm - 2 mm
Permitted storage and transport temperature - min
-35 °C
Permitted storage and transport temperature - max
60 °C
Climatic proofing
25-55 °C / 90-95% relative humidity according to IEC 60068-2
Design verification as per IEC/EN 61439 - technical data
Rated operational current for specified heat dissipation (In)
40 A
Heat dissipation per pole, current-dependent
0 W
Equipment heat dissipation, current-dependent
20 W
Heat dissipation capacity
0 W
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
40 °C
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Additional information
Features
Additional equipment possible
Add-on residual current protection unit
Fitted with:
Interlocking device
Special features
Add-on residual current protection unit
FBSmV
Type AC
Used with
Type AC
FBSmV
Add-on residual current protection unit

Technical data ETIM 8.0

Circuit breakers and fuses (EG000020) / Residual current circuit breaker (RCCB) module (EC002297)
Electric engineering, automation, process control engineering / Electrical installation, device / Residual current protection system / Residual current circuit breaker (RCCB) module ([email protected] [ACN357011])
Nominal voltage
240 - 415 V
Nominal current
40 A
Rated fault current adjustable
No
Rated fault current
1 - 1 A
Max. delay time
0 ms
Delay adjustable
No
Number of poles
3
Leakage current type
AC
Surge current capacity
0.25 kA
Frequency
50 Hz
Rated insulation voltage Ui
440 V
Rated impulse withstand voltage Uimp
4 kV
Connectable conductor cross section solid-core
0.75 - 35 mm²
Connectable conductor cross section multi-wired
0.75 - 35 mm²
Anti-nuisance tripping version
No
With interlocking device
Yes
Degree of protection (IP)
IP20
Pollution degree
2
Ambient temperature during operating
-25 - 40 °C
