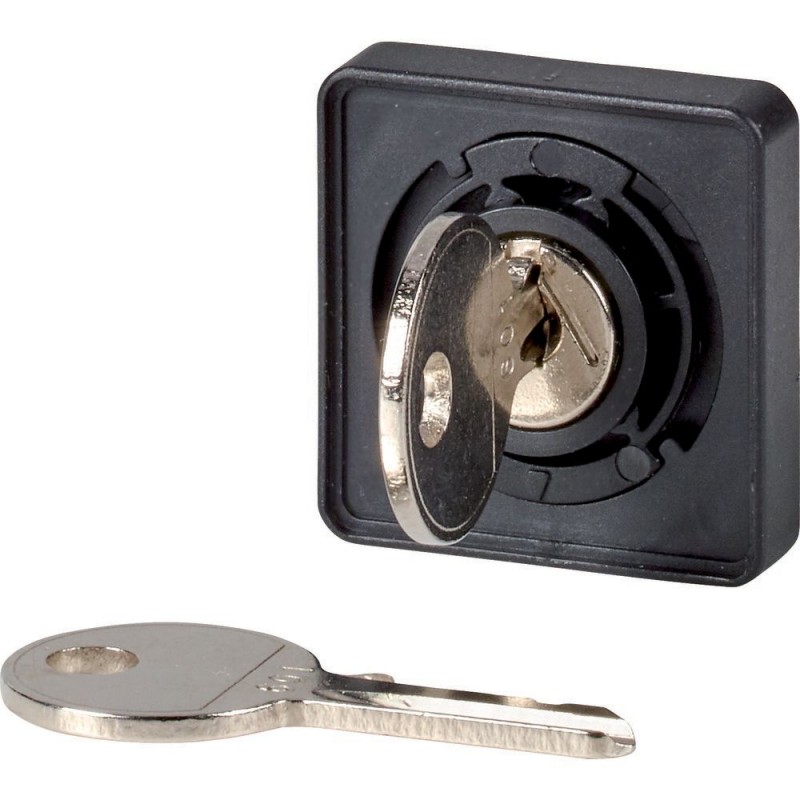

EZ/S-P-TM 047002 EATON ELECTRIC Управление ключом Ронис №.P
EZ/S-P-TM
047002
EATON-MOELLER
Управление ключом Ронис №.P
Elementro спереди; для выключателей ТМ; эз; запирающий механизм с ключом; Ронис-нет..П
Front element, for TM switch, EZ-, key operation lock mechanism, ronis no.P
Низковольтное оборудование > Рукоятка для силовых выключателей/разъединителей
Разъединители и кулачковые переключатели
* Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами EATON-MOELLER
Описание
▲Front element, for TM switch, EZ-, key operation lock mechanism, ronis no.P
Front element for TM switch, Basic function: Locking arrangements, Function: Key operation lock mechanism, RONIS-lock 60 degree, For use with: Centre mounting (EZ)
Delivery program
Basic function
Locking arrangements
Function
Key operation lock mechanism
RONIS-lock 60 degree
For use with
Centre mounting (EZ)
Key withdrawable with
Notes
The RONIS lock for 60° can be used for other switching angles as well (for example) if the key withdrawability characteristics match the switch.
Example: EZ/S-D can be used with a step switch with 6 steps and a switching angle of 30° if the key should only be withdrawable in the 270° and 90° positions.
Example: EZ/S-D can be used with a step switch with 6 steps and a switching angle of 30° if the key should only be withdrawable in the 270° and 90° positions.
Design verification as per IEC/EN 61439
Technical data for design verification
Rated operational current for specified heat dissipation [In]
0 A
Heat dissipation per pole, current-dependent [Pvid]
0 W
Equipment heat dissipation, current-dependent [Pvid]
0 W
Static heat dissipation, non-current-dependent [Pvs]
0 W
Heat dissipation capacity [Pdiss]
0 W
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+50 °C
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9 Insulation properties10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9 Insulation properties10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9 Insulation properties10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 8.0
Low-voltage industrial components (EG000017) / Handle for power circuit breaker (EC000229)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Handle for switch devices ([email protected] [AKF012014])
With restart blockage
No
With key lock
Yes
Padlock locking
No
Colour
Black
Suitable for emergency stop
No
With extension shaft
No
Suitable for power circuit breaker
No
Suitable for switch disconnector
Yes
Degree of protection (NEMA)
Other
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF EATON SAFE SWITCHING EN.pdf | 928 Kbytes |
|
| EZ/S-P-TM 047002 RU_047002.pdf | 195 Kbytes |
|
