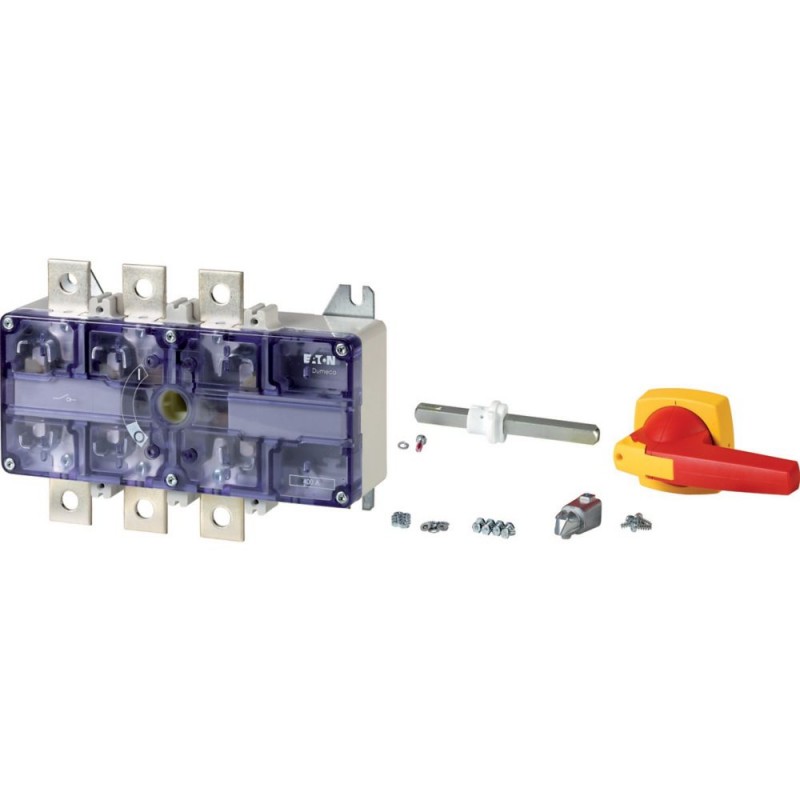

DMV-400/4/M4/P-R 6094971 Y8-6094971 EATON ELECTRIC ДМВ-400/4/М4/-Р
DMV-400/4/M4/P-R
6094971
Y8-6094971
EATON-MOELLER
ДМВ-400/4/М4/-Р
Switch-disconnector, DMV, 400 A, 4 pole, Emergency switching off function, With red rotary handle and yellow locking ring, With metal shaft for a control panel depth of 400 mm, 11 mm connection bore
Выключатель-разъединитель, Ассортимент продукции: Выключатель-разъединитель, Главный выключатель, Выключатель технического обслуживания, Справочник по группе деталей: DMV, Функция остановки: Функция аварийного отключения, С красной поворотной ручкой и желтым стопорным кольцом, Примечания: С металлическим валом для панели управления глубиной 400 мм, Информация о поставляемом оборудовании: вспомогательный контакт, установленный пользователем., 4 полюса, Степень защиты: Передняя IP65, Конструкция: задний монтаж, Номинальная мощность двигателя AC-23A, 50 - 60 Гц 400 В: P = 180 кВт, Номинальный непрерывный ток: Iu = 400 A, Стандарты: IEC/EN 60947, VDE 0660, IEC/EN 60204, Выключатель-разъединитель согласно IEC/EN 60947-3
Низковольтное оборудование > Выключатель-разъединитель нагрузки
DUMECO Выключатели-разъединители
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами EATON-MOELLER
Best sellers
▲Описание
▲EL-Nummer (Norway)
1417208
Switch-disconnector, DMV, 400 A, 4 pole, Emergency switching off function, With red rotary handle and yellow locking ring, With metal shaft for a control panel depth of 400 mm, 11 mm connection bore
Switch-disconnector, Product range: Switch-disconnector, Main switch, maintenance switch, Part group reference: DMV, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Notes: With metal shaft for a control panel depth of 400 mm, Information about equipment supplied: auxiliary contact fitted by user., 4 pole, Degree of Protection: Front IP65, Design: rear mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 180 kW, Rated uninterrupted current: Iu = 400 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3
Delivery program
Product range
Switch-disconnector
Main switch
maintenance switch
Main switch
maintenance switch
Part group reference
DMV
Stop Function
Emergency switching off function
With red rotary handle and yellow locking ring
Information about equipment supplied
auxiliary contact fitted by user.
Notes
With metal shaft for a control panel depth of 400 mm
Number of poles
4 pole
Auxiliary contacts
0 N/O
0 N/C
Notes
1 padlock, ∅ 5 mm
Locking facility
Lockable in the 0 (Off) position
Degree of Protection
Front IP65
Design
rear mounting
Contact sequence
Switching angle
90 °
Function
Motor rating AC-23A, 50 - 60 Hz [P]
400 V [P]
180 kW
Rated uninterrupted current [Iu]
400 A
Note on rated uninterrupted current !u
Rated uninterrupted current Iuis specified for max. cross-section.
Connection technique
11 mm connection bore
Technical data
General
Standards
IEC/EN 60947, VDE 0660, IEC/EN 60204
Switch-disconnector according to IEC/EN 60947-3
Switch-disconnector according to IEC/EN 60947-3
Certifications
CE, RoHs, KEMA, EAC, Lloyds
Ambient temperatureOperation [ϑ]
-25 - +55 °C
Ambient temperatureStorage [ϑ]
-30 - +80 °C
Overvoltage category/pollution degree
III/3
Rated impulse withstand voltage [Uimp]
8 kV
Rated insulation voltage [Ui]
1000 V
Mounting position
As required
Contacts
Mechanical variablesNumber of poles
4 pole
Mechanical variablesAuxiliary contacts
0 N/O
Mechanical variablesAuxiliary contacts
0 N/C
Electrical characteristicsRated operational voltage [Ue]
690 V AC
Electrical characteristicsRated uninterrupted current [Iu]
400 A
Electrical characteristicsNote on rated uninterrupted current !u
Rated uninterrupted current Iuis specified for max. cross-section.
Short-circuit ratingfuse
500/250
Short-circuit ratingRated conditional short-circuit current [Iq]
In = 500: 50
In = 250: 100 kA
In = 250: 100 kA
Short-circuit ratingBreaking current
In = 500: 40
In = 250: 33 kA
In = 250: 33 kA
Short-circuit ratingmax. let-through energy
In = 500: 1700
In = 250: 380 kA²s
In = 250: 380 kA²s
Rated short-time withstand current (1 s current) [Icw]
12000 Arms
Note on rated short-time withstand current lcw
Current for a time of 0.3 seconds
Heat dissipation per pole, current-dependent [Pvid]
11.5 W
Switching capacity
Rated breaking capacity cos ϕ to IEC 60947-3400/415 V
2664 A
Rated breaking capacity cos ϕ to IEC 60947-3500 V
2032 A
Rated breaking capacity cos ϕ to IEC 60947-3690 V
1120 A
Safe isolation to EN 61140Current heat loss per contact at Ie
9 W
Lifespan, mechanical [Operations]
10000
ACAC-21ARated operational current switch400 V 415 V [Ie]
400 A
ACAC-21ARated operational current switch500 V [Ie]
400 A
ACAC-21ARated operational current switch690 V [Ie]
400 A
ACAC-22ARated operational current switch400 V 415 V [Ie]
400 A
ACAC-22ARated operational current switch500 V [Ie]
400 A
ACAC-22ARated operational current switch690 V [Ie]
315 A
ACAC-23ARated operational current switch400 V 415 V [Ie]
333 A
ACAC-23ARated operational current switch500 V [Ie]
254 A
ACAC-23ARated operational current switch690 V [Ie]
140 A
ACAC-23AMotor rating AC-23A, 50 - 60 Hz [P]400 V 415 V [P]
180 kW
ACAC-23AMotor rating AC-23A, 50 - 60 Hz [P]500 V [P]
180 kW
ACAC-23AMotor rating AC-23A, 50 - 60 Hz [P]690 V [P]
132 kW
Terminal capacities
Flat conductor connection with busbars
240 mm2
Terminal screw
M10 x 20
Tightening torque for terminal screw
28 Nm
Technical safety parameters:
Notes
B10dvalues as per EN ISO 13849-1, table C1
Design verification as per IEC/EN 61439
Technical data for design verification
Rated operational current for specified heat dissipation [In]
400 A
Heat dissipation per pole, current-dependent [Pvid]
11.5 W
Equipment heat dissipation, current-dependent [Pvid]
0 W
Static heat dissipation, non-current-dependent [Pvs]
0 W
Heat dissipation capacity [Pdiss]
0 W
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+55 °C
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9 Insulation properties10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9 Insulation properties10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9 Insulation properties10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 8.0
Low-voltage industrial components (EG000017) / Switch disconnector (EC000216)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Off-load switch, circuit breaker, control switch / Switch disconnector ([email protected] [AKF060013])
Version as main switch
Yes
Version as maintenance-/service switch
No
Version as safety switch
No
Version as emergency stop installation
Yes
Version as reversing switch
No
Number of switches
1
Max. rated operation voltage Ue AC
690 V
Rated operating voltage
690 - 690 V
Rated permanent current Iu
400 A
Rated permanent current at AC-23, 400 V
333 A
Rated permanent current at AC-21, 400 V
400 A
Rated operation power at AC-3, 400 V
0 kW
Rated short-time withstand current lcw
12 kA
Rated operation power at AC-23, 400 V
400 kW
Switching power at 400 V
400 kW
Conditioned rated short-circuit current Iq
50 kA
Number of poles
4
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Suitable for floor mounting
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
Yes
Colour control element
Red
Type of control element
Short thumb-grip
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP65
Degree of protection (NEMA)
12
Dimensions
| Характеристика | Значение |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | Yes |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 690 V |
| Rated permanent current Iu (EF001389) | 400 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 333 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 400 A |
| Rated operation power at AC-3, 400 V (EF001364) | 0 kW |
| Rated short-time withstand current lcw (EF007050) | 12 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 400 kW |
| Switching power at 400 V (EF009166) | 400 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 50 kA |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | No |
| Suitable for intermediate mounting (EF007264) | Yes |
| Colour control element (EF007167) | Red |
| Type of control element (EF006976) | Short thumb-grip |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| With pre-assembled cabling (EF016444) | No |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | 12 |
| Width (EF000008) | 150 mm |
| Height (EF000040) | 150 mm |
| Depth (EF000049) | 300 mm |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF EATON INDUSTRIAL SWITCH DISCONNECTORS EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| DMV-400/4/M4/P-R Y8-6094971 6094971 RU_6094971.pdf | 298 Kbytes |
|
Отзывы: (0) ▲
Там нет Отзывы о товаре пока нет.
Добавить отзыв
скрыть форму
| Рейтинг: |
|
| Имя: | |
| Эл. адрес: | |
| Предмет: | |
| Текст: | |
| Вы рекомендуете этот продукт купить? | |
|
|
|
| Добавить отзыв | |
Все оценки, которые мы получаем о артикулах, которые мы предлагаем, являются реальными и проверенными. Маленький жест, но очень ценный. Вот почему мы благодарим Вас за ту минуту, которую Вы инвестируете в то, чтобы оставить нам свое мнение о продуктах, это помогает нам продолжать совершенствоваться и предлагать Вам услугу еще более высокого качества.
