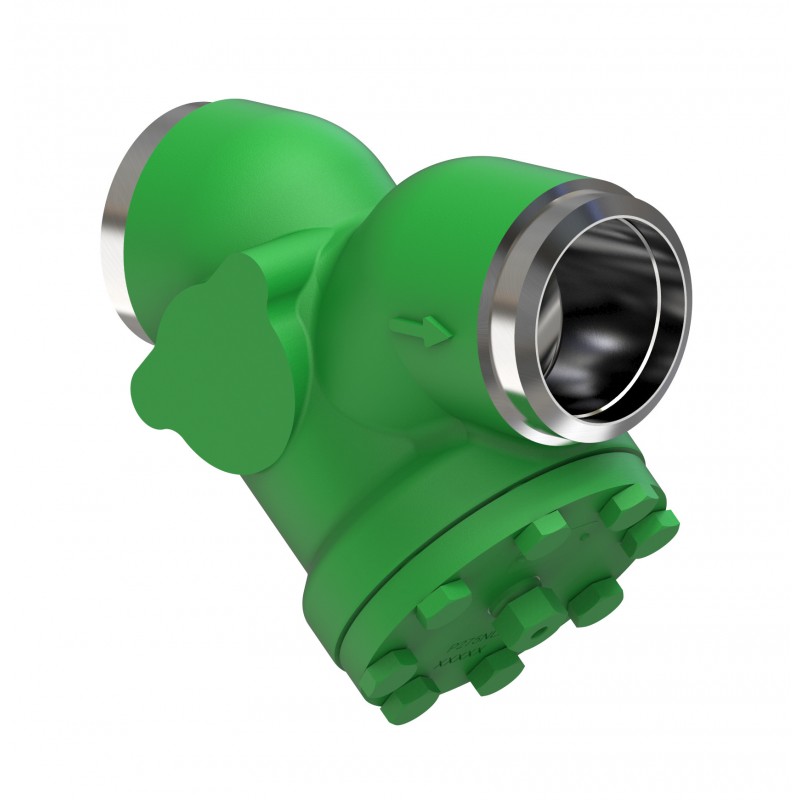

148B6842 DANFOSS REFRIGERATION FIA-140B Корпус фильтра 100 A/D STR.
148B6842
DANFOSS REFRIGERATION
FIA-140B Корпус фильтра 100 A/D STR.
Strainers, FIA-140B 100
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Connection material: Steel, Inlet connection type: Butt weld, Max. Working Pressure [bar]: 140.0
Product details
| Gross weight | 19.528 Kg |
| Net weight | 17.869 Kg |
| Volume | 26.676 Liter |
| EAN | 5702424590628 |
| Gross weight | 19.528 Kg |
| Net weight | 17.869 Kg |
| Volume | 26.676 Liter |
| EAN | 5702424590628 |
| Approval | CE EAC UKCA |
| Brand | SVL Flexline |
| Colour Paint | Green |
| Connection material | Steel |
| Connection standard | ANSIB36.10 SCH80 EN10216-2 |
| Cv value [gal/min] 100 plain | 546.84 gal/min |
| Cv value [gal/min] 100 pleated | 715.03 gal/min |
| Cv value [gal/min] 38 plain | 592.63 gal/min |
| Cv value [gal/min] 38 pleated | 774.9 gal/min |
| Cv value [gal/min] 72 plain | 564.01 gal/min |
| Cv value [gal/min] 72 pleated | 737.48 gal/min |
| Direction | Straightway |
| Equipment | Cover |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 2 |
| Inlet connection size [in] | 4 in |
| Inlet connection size [mm] | 100 mm |
| Inlet connection type | Butt weld |
| Kv value [m3/h] µ150 plain | 124.2 m³/h |
| Kv value [m3/h] µ150 pleated | 162.4 m³/h |
| Kv value [m3/h] µ250 plain | 128.1 m³/h |
| Kv value [m3/h] µ250 pleated | 167.5 m³/h |
| Kv value [m3/h] µ500 plain | 134.6 m³/h |
| Kv value [m3/h] µ500 pleated | 176 m³/h |
| Max. Working Pressure [bar] | 140 bar |
| Max. Working Pressure [psig] | 2030 psig |
| Outlet connection size [in] | 4 in |
| Outlet connection size [mm] | 100 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| PED category | I |
| Product accessories | SVL Flexline accessories |
| Product description | Filter housing |
| Product group | Strainers |
| Product Name Description | Strainer housing |
| Quantity per packing format | 1 pc |
| Refrigerants | R744 |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -40 °F |
| Type | FIA-140B 100 |
| Valve version | Standard version |
| Approval | CE EAC UKCA |
| Brand | SVL Flexline |
| Colour Paint | Green |
| Connection material | Steel |
| Connection standard | ANSIB36.10 SCH80 EN10216-2 |
| Cv value [gal/min] 100 plain | 546.84 gal/min |
| Cv value [gal/min] 100 pleated | 715.03 gal/min |
| Cv value [gal/min] 38 plain | 592.63 gal/min |
| Cv value [gal/min] 38 pleated | 774.9 gal/min |
| Cv value [gal/min] 72 plain | 564.01 gal/min |
| Cv value [gal/min] 72 pleated | 737.48 gal/min |
| Direction | Straightway |
| Equipment | Cover |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 2 |
| Inlet connection size [in] | 4 in |
| Inlet connection size [mm] | 100 mm |
| Inlet connection type | Butt weld |
| Kv value [m3/h] µ150 plain | 124.2 m³/h |
| Kv value [m3/h] µ150 pleated | 162.4 m³/h |
| Kv value [m3/h] µ250 plain | 128.1 m³/h |
| Kv value [m3/h] µ250 pleated | 167.5 m³/h |
| Kv value [m3/h] µ500 plain | 134.6 m³/h |
| Kv value [m3/h] µ500 pleated | 176 m³/h |
| Max. Working Pressure [bar] | 140 bar |
| Max. Working Pressure [psig] | 2030 psig |
| Outlet connection size [in] | 4 in |
| Outlet connection size [mm] | 100 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| PED category | I |
| Product accessories | SVL Flexline accessories |
| Product description | Filter housing |
| Product group | Strainers |
| Product Name Description | Strainer housing |
| Quantity per packing format | 1 pc |
| Refrigerants | R744 |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -40 °F |
| Type | FIA-140B 100 |
| Valve version | Standard version |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
