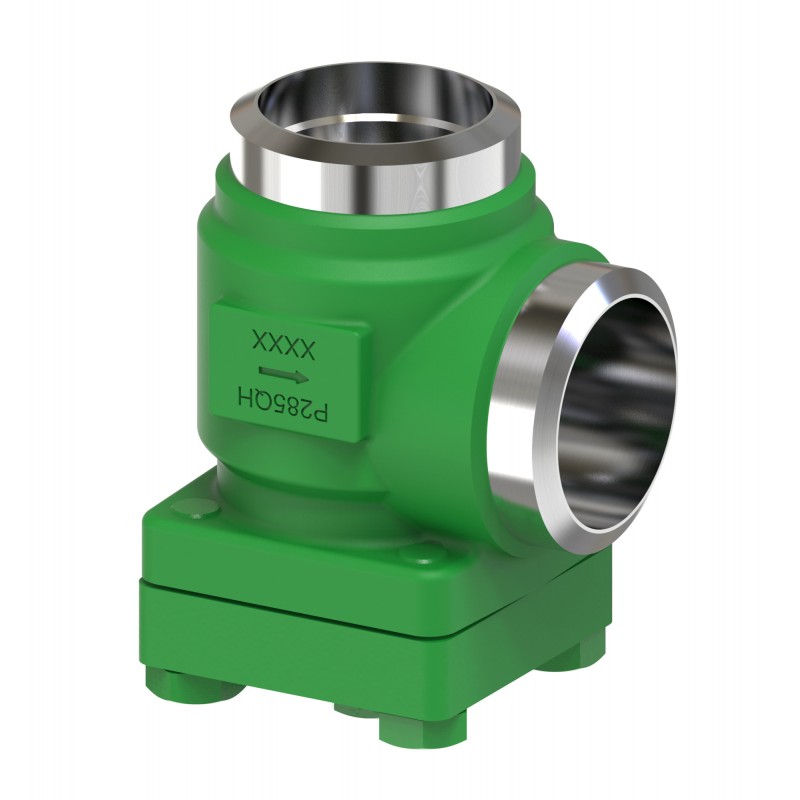

148B6833 DANFOSS REFRIGERATION FIA-140B Корпус фильтра 50 A/D ANG.
148B6833
DANFOSS REFRIGERATION
FIA-140B Корпус фильтра 50 A/D ANG.
Strainers, FIA-140B 50
Home > DANFOSS REFRIGERATION
* Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Related products
▲Описание
▲Connection material: Steel, Inlet connection type: Butt weld, Max. Working Pressure [bar]: 140.0
Product details
| Gross weight | 5.047 Kg |
| Net weight | 4.56 Kg |
| Volume | 7.259 Liter |
| EAN | 5702424590536 |
| Gross weight | 5.047 Kg |
| Net weight | 4.56 Kg |
| Volume | 7.259 Liter |
| EAN | 5702424590536 |
| Approval | CE EAC UKCA |
| Brand | SVL Flexline |
| Colour Paint | Green |
| Connection material | Steel |
| Connection standard | ANSIB36.10 SCH80 EN10216-2 |
| Cv value [gal/min] 100 plain | 202.09 gal/min |
| Cv value [gal/min] 100 pleated | 249.64 gal/min |
| Cv value [gal/min] 38 plain | 221.02 gal/min |
| Cv value [gal/min] 38 pleated | 272.98 gal/min |
| Cv value [gal/min] 72 plain | 209.58 gal/min |
| Cv value [gal/min] 72 pleated | 258.89 gal/min |
| Direction | Angleway |
| Equipment | Cover |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 2 |
| Inlet connection size [in] | 2 in |
| Inlet connection size [mm] | 50 mm |
| Inlet connection type | Butt weld |
| Kv value [m3/h] µ150 plain | 45.9 m³/h |
| Kv value [m3/h] µ150 pleated | 56.7 m³/h |
| Kv value [m3/h] µ250 plain | 47.6 m³/h |
| Kv value [m3/h] µ250 pleated | 58.8 m³/h |
| Kv value [m3/h] µ500 plain | 50.2 m³/h |
| Kv value [m3/h] µ500 pleated | 62 m³/h |
| Max. Working Pressure [bar] | 140 bar |
| Max. Working Pressure [psig] | 2030 psig |
| Outlet connection size [in] | 2 in |
| Outlet connection size [mm] | 50 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| PED category | I |
| Product accessories | SVL Flexline accessories |
| Product description | Filter housing |
| Product group | Strainers |
| Product Name Description | Strainer housing |
| Quantity per packing format | 1 pc |
| Refrigerants | R744 |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -40 °F |
| Type | FIA-140B 50 |
| Valve version | Standard version |
| Approval | CE EAC UKCA |
| Brand | SVL Flexline |
| Colour Paint | Green |
| Connection material | Steel |
| Connection standard | ANSIB36.10 SCH80 EN10216-2 |
| Cv value [gal/min] 100 plain | 202.09 gal/min |
| Cv value [gal/min] 100 pleated | 249.64 gal/min |
| Cv value [gal/min] 38 plain | 221.02 gal/min |
| Cv value [gal/min] 38 pleated | 272.98 gal/min |
| Cv value [gal/min] 72 plain | 209.58 gal/min |
| Cv value [gal/min] 72 pleated | 258.89 gal/min |
| Direction | Angleway |
| Equipment | Cover |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 2 |
| Inlet connection size [in] | 2 in |
| Inlet connection size [mm] | 50 mm |
| Inlet connection type | Butt weld |
| Kv value [m3/h] µ150 plain | 45.9 m³/h |
| Kv value [m3/h] µ150 pleated | 56.7 m³/h |
| Kv value [m3/h] µ250 plain | 47.6 m³/h |
| Kv value [m3/h] µ250 pleated | 58.8 m³/h |
| Kv value [m3/h] µ500 plain | 50.2 m³/h |
| Kv value [m3/h] µ500 pleated | 62 m³/h |
| Max. Working Pressure [bar] | 140 bar |
| Max. Working Pressure [psig] | 2030 psig |
| Outlet connection size [in] | 2 in |
| Outlet connection size [mm] | 50 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| PED category | I |
| Product accessories | SVL Flexline accessories |
| Product description | Filter housing |
| Product group | Strainers |
| Product Name Description | Strainer housing |
| Quantity per packing format | 1 pc |
| Refrigerants | R744 |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -40 °F |
| Type | FIA-140B 50 |
| Valve version | Standard version |
