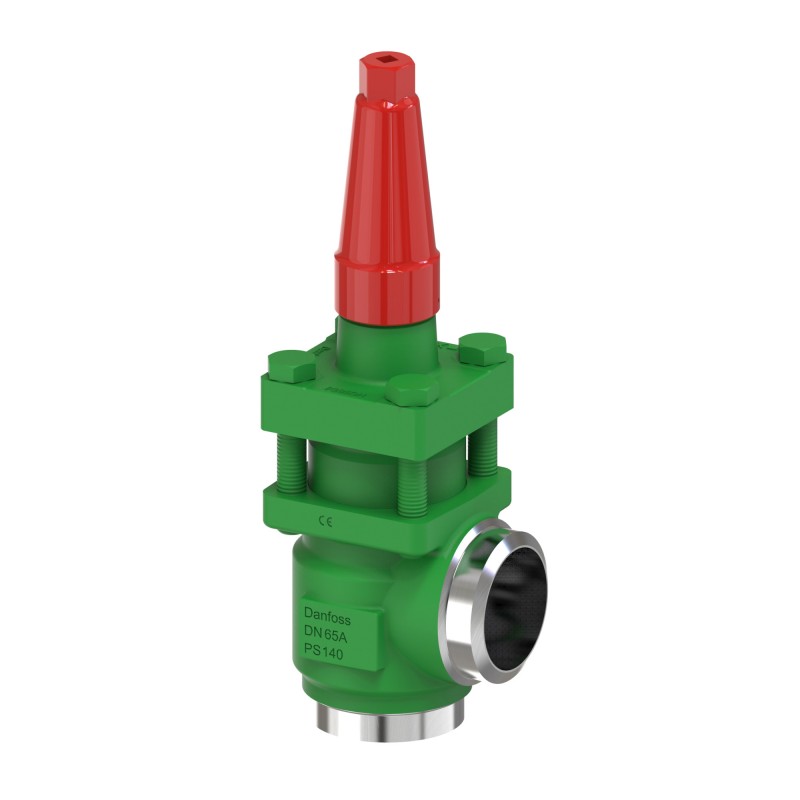

148B6827 DANFOSS REFRIGERATION SVA-140B Запорный клапан 50 SA/SD ANG
148B6827
DANFOSS REFRIGERATION
SVA-140B Запорный клапан 50 SA/SD ANG
Shut-off valve, SVA-S 50, Max. Working Pressure [bar]: 140.0, Cap
Home > DANFOSS REFRIGERATION
* Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Related products
▲Описание
▲Inlet connection type: Brazed, Outlet connection type: Brazed, Equipment: Cap
Product details
| Gross weight | 8.4 Kg |
| Net weight | 7.25 Kg |
| Volume | 12.933 Liter |
| EAN | 5702424589875 |
| Gross weight | 8.4 Kg |
| Net weight | 7.25 Kg |
| Volume | 12.933 Liter |
| EAN | 5702424589875 |
| Approval | CE UKCA |
| Body material | Steel |
| Brand | SVL Flexline |
| Colour Paint | Green |
| Connection material | Steel |
| Connection standard | ASME B16.50 EN 1254-5 |
| Cv value [gal/min] | 77.452 gal/min |
| Direction | Angleway |
| Equipment | Cap |
| Flow direction | Single-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 2 |
| Inlet connection size [in] | 2 1/8 in |
| Inlet connection size [mm] | 54 mm |
| Inlet connection type | Brazed |
| Kv value [m³/h] | 67 m³/h |
| Max. Working Pressure [bar] | 140 bar |
| Max. Working Pressure [psig] | 2030 psig |
| MOPD[bar/psi] | 110BAR/1595.4PSI |
| Neck | Standard |
| Outlet connection size [in] | 2 1/8 in |
| Outlet connection size [mm] | 54 mm |
| Outlet connection type | Brazed |
| Packing format | Single pack |
| PED category | I |
| Product accessories | SVL Flexline accessories |
| Product description | Shut-off valve |
| Product group | Shut-off and regulating valves |
| Product Name Description | Shut-off valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R744 |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -40 °F |
| Type | SVA-S 50 |
| Valve version | Standard version |
| Approval | CE UKCA |
| Body material | Steel |
| Brand | SVL Flexline |
| Colour Paint | Green |
| Connection material | Steel |
| Connection standard | ASME B16.50 EN 1254-5 |
| Cv value [gal/min] | 77.452 gal/min |
| Direction | Angleway |
| Equipment | Cap |
| Flow direction | Single-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 2 |
| Inlet connection size [in] | 2 1/8 in |
| Inlet connection size [mm] | 54 mm |
| Inlet connection type | Brazed |
| Kv value [m³/h] | 67 m³/h |
| Max. Working Pressure [bar] | 140 bar |
| Max. Working Pressure [psig] | 2030 psig |
| MOPD[bar/psi] | 110BAR/1595.4PSI |
| Neck | Standard |
| Outlet connection size [in] | 2 1/8 in |
| Outlet connection size [mm] | 54 mm |
| Outlet connection type | Brazed |
| Packing format | Single pack |
| PED category | I |
| Product accessories | SVL Flexline accessories |
| Product description | Shut-off valve |
| Product group | Shut-off and regulating valves |
| Product Name Description | Shut-off valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R744 |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -40 °F |
| Type | SVA-S 50 |
| Valve version | Standard version |
