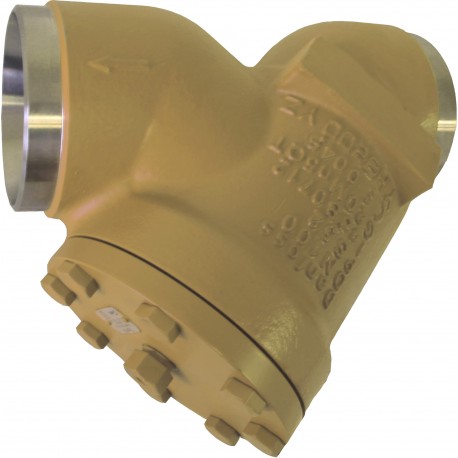

148B6680 DANFOSS REFRIGERATION FIA 200 A КОРПУС ФИЛЬТРА STR PS65
148B6680
DANFOSS REFRIGERATION
FIA 200 A КОРПУС ФИЛЬТРА STR PS65

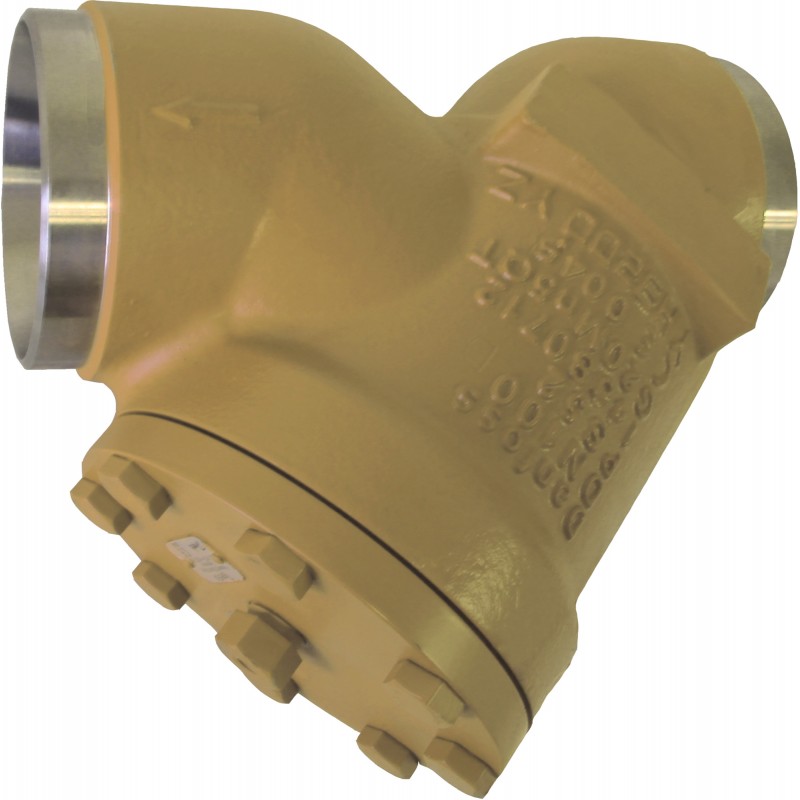

Strainer housing, FIA 200
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Connection material: Steel, Inlet connection type: Butt weld, Max. Working Pressure [bar]: 65.0
Product details
| Gross weight | 109 Kg |
| Net weight | 99 Kg |
| Volume | 217.211 Liter |
| EAN | 5702428507622 |
| Gross weight | 109 Kg |
| Net weight | 99 Kg |
| Volume | 217.211 Liter |
| EAN | 5702428507622 |
| Approval | CE UKCA |
| Brand | SVL Flexline |
| Colour Paint | Yellow |
| Connection material | Steel |
| Connection standard | ASME B 36.10M SCHEDULE 40 |
| Cv value [gal/min] 100 plain | 1928.9 gal/min |
| Cv value [gal/min] 38 plain | 2089.16 gal/min |
| Cv value [gal/min] 72 plain | 1989.22 gal/min |
| Direction | Straightway |
| Equipment | Cover |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Inlet connection size [in] | 8 in |
| Inlet connection size [mm] | 200 mm |
| Inlet connection type | Butt weld |
| Kv value [m3/h] µ150 plain | 438.1 m³/h |
| Kv value [m3/h] µ250 plain | 451.8 m³/h |
| Kv value [m3/h] µ500 plain | 474.5 m³/h |
| Max. Working Pressure [bar] | 65 bar |
| Max. Working Pressure [psig] | 943 psig |
| Outlet connection size [in] | 8 in |
| Outlet connection size [mm] | 200 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | FIA |
| PED category | III |
| Product accessories | SVL Flexline accessories |
| Product description | Filter housing |
| Product group | Strainers |
| Product Name Description | Strainer housing |
| Quantity per packing format | 1 pc |
| Refrigerants | R113 R114 R1233zd(E) R1234yf R1234ze(E) R125 R1270 R1336mzz(Z) R134a R152a R170 R22 R227ea R23 R236fa R290 R32 R401A R402A R402B R404A R407A R407B R407C R407F R407H R408A R409A R410A R417A R421A R422A R422B R422D R427A R438A R444B R447A R448A R449A R449B R450A R452A R454B R455A R502 R503 R513A R600 R600a R717 R744 RE170 R507A R1150 R245fa R413A R442A R447B R452B R454A R454C R463A R512A R513B R515A R515B R516A R508B |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -76 °F |
| Type | FIA 200 |
| Valve version | Standard version |
| Approval | CE UKCA |
| Brand | SVL Flexline |
| Colour Paint | Yellow |
| Connection material | Steel |
| Connection standard | ASME B 36.10M SCHEDULE 40 |
| Cv value [gal/min] 100 plain | 1928.9 gal/min |
| Cv value [gal/min] 38 plain | 2089.16 gal/min |
| Cv value [gal/min] 72 plain | 1989.22 gal/min |
| Direction | Straightway |
| Equipment | Cover |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Inlet connection size [in] | 8 in |
| Inlet connection size [mm] | 200 mm |
| Inlet connection type | Butt weld |
| Kv value [m3/h] µ150 plain | 438.1 m³/h |
| Kv value [m3/h] µ250 plain | 451.8 m³/h |
| Kv value [m3/h] µ500 plain | 474.5 m³/h |
| Max. Working Pressure [bar] | 65 bar |
| Max. Working Pressure [psig] | 943 psig |
| Outlet connection size [in] | 8 in |
| Outlet connection size [mm] | 200 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | FIA |
| PED category | III |
| Product accessories | SVL Flexline accessories |
| Product description | Filter housing |
| Product group | Strainers |
| Product Name Description | Strainer housing |
| Quantity per packing format | 1 pc |
| Refrigerants | R113 R114 R1233zd(E) R1234yf R1234ze(E) R125 R1270 R1336mzz(Z) R134a R152a R170 R22 R227ea R23 R236fa R290 R32 R401A R402A R402B R404A R407A R407B R407C R407F R407H R408A R409A R410A R417A R421A R422A R422B R422D R427A R438A R444B R447A R448A R449A R449B R450A R452A R454B R455A R502 R503 R513A R600 R600a R717 R744 RE170 R507A R1150 R245fa R413A R442A R447B R452B R454A R454C R463A R512A R513B R515A R515B R516A R508B |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -76 °F |
| Type | FIA 200 |
| Valve version | Standard version |
