148B6591 DANFOSS REFRIGERATION CHV-X 50 D STR Обратный клапан PS52
148B6591
DANFOSS REFRIGERATION

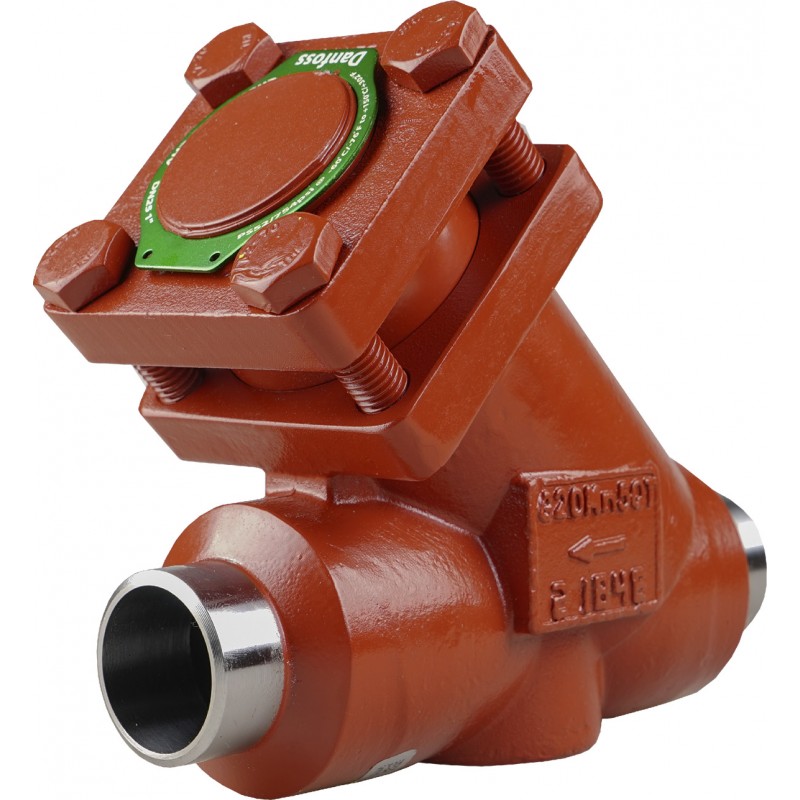

CHV-X 50 D STR Обратный клапан PS52
Check valve, CHV-X 50, SVL Flexline, Direction: Straightway, 50.0 mm, Connection standard: EN 10220, Max. Working Pressure [bar]: 52.0
Home > DANFOSS REFRIGERATION
* Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Related products
▲Описание
▲Connection material: Steel, Inlet connection type: Butt weld
Product details
| Gross weight | 4.238 Kg |
| Net weight | 3.046 Kg |
| Volume | 5.372 Liter |
| EAN | 5702428989268 |
| Gross weight | 4.238 Kg |
| Net weight | 3.046 Kg |
| Volume | 5.372 Liter |
| EAN | 5702428989268 |
| Approval | CE UKCA |
| Brand | SVL Flexline |
| Colour Paint | Reddish brown |
| Connection material | Steel |
| Connection size [in] | 2 in |
| Connection size [mm] | 50 mm |
| Connection standard | EN 10220 |
| Connection type | Butt weld |
| Cv value [gal/min] | 52.2 gal/min |
| Direction | Straightway |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 2 |
| Inlet connection size [mm] | 50 mm |
| Inlet connection type | Butt weld |
| Kv value [m³/h] | 28 m³/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| MinODP [bar] | 0.04 bar |
| MinODP [psi] | 0.58 psi |
| Packing format | Single pack |
| Parts Program name | CHV-X |
| PED category | II |
| Product accessories | SVL Flexline accessories |
| Product description | Check Valve |
| Product group | Check valves |
| Product Name Description | Check valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R290 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R600 R600a R717 R744 R507A R1234yf R1234ze(E) R125 R152a R170 R227ea R236fa R245fa R32 R407H R413A R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R452C R454A R454B R454C R455A R463A R512A R513A R513B R515A R515B R516A |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -76 °F |
| Type | CHV-X 50 |
| Approval | CE UKCA |
| Brand | SVL Flexline |
| Colour Paint | Reddish brown |
| Connection material | Steel |
| Connection size [in] | 2 in |
| Connection size [mm] | 50 mm |
| Connection standard | EN 10220 |
| Connection type | Butt weld |
| Cv value [gal/min] | 52.2 gal/min |
| Direction | Straightway |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 2 |
| Inlet connection size [mm] | 50 mm |
| Inlet connection type | Butt weld |
| Kv value [m³/h] | 28 m³/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| MinODP [bar] | 0.04 bar |
| MinODP [psi] | 0.58 psi |
| Packing format | Single pack |
| Parts Program name | CHV-X |
| PED category | II |
| Product accessories | SVL Flexline accessories |
| Product description | Check Valve |
| Product group | Check valves |
| Product Name Description | Check valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R290 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R600 R600a R717 R744 R507A R1234yf R1234ze(E) R125 R152a R170 R227ea R236fa R245fa R32 R407H R413A R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R452C R454A R454B R454C R455A R463A R512A R513A R513B R515A R515B R516A |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -76 °F |
| Type | CHV-X 50 |
