DANFOSS REFRIGERATION148B5972 DANFOSS REFRIGERATION SVL 80 Housing A/D STR PS140

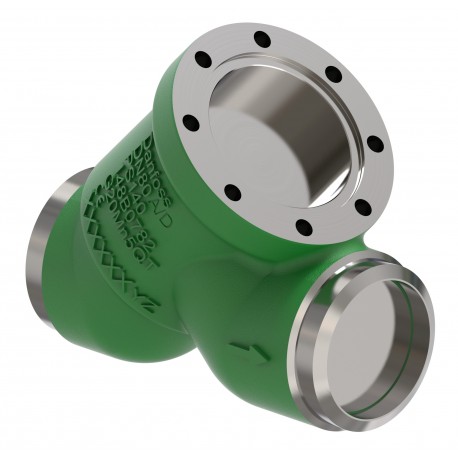

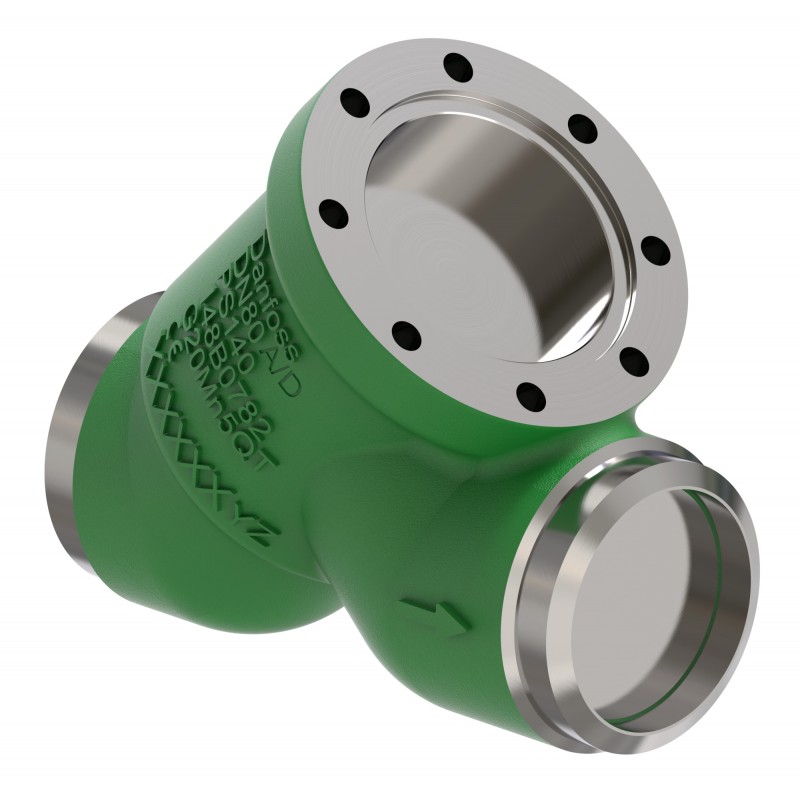

DANFOSS REFRIGERATION 148B5972 148B5972 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

148B5972 DANFOSS REFRIGERATION SVL 80 Housing A/D STR PS140

Reference: 148B5972

Manufacturer: DANFOSS REFRIGERATION

Description:

SVL 80 Housing A/D STR PS140
Multifunction valve body, SVL-140B 80, Max. Working Pressure [bar]: 140

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 587,22 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Parts Program name: FIA-140B; ICMTS; SVA-140B, Connection standard: ANSIB36.10 SCH80; EN10216-2, Inlet connection type: Butt weld, Outlet connection type: Butt weld, Inlet connection size [mm]: 80, Outlet connection size [mm]: 80

Product details

Gross weight9.3 Kilogram
Net weight8.15 Kilogram
Volume17.708 Liter
EAN5715162515969
TypeSVL-140B 80
Product groupMultifunction valves
Product Name DescriptionMultifunction valve body
Gross weight9.3 Kilogram
Net weight8.15 Kilogram
Volume17.708 Liter
EAN5715162515969
TypeSVL-140B 80
Product groupMultifunction valves
Product Name DescriptionMultifunction valve body

ApprovalC UL US LISTED
CE
CRN
Body materialSteel
BrandSVL Flexline
CE evaluatedYes
China RoHS complianceYes
China RoHS exemption clauseNo
Connection materialSteel
Connection standardANSIB36.10 SCH80
EN10216-2
Contains batteriesNo
DirectionStraightway
EU RoHS complianceYes
EU RoHS exemption clauseNo
Flow directionSingle-flow
Flow direction indicatorEmbossed 1-way arrow
Fluid Group2
Inlet connection size [in]3 in
Inlet connection size [mm]80 mm
Inlet connection typeButt weld
Max. Working Pressure [bar]140 bar
Max. Working Pressure [psig]2030 psig
Outlet connection size [in]3 in
Outlet connection size [mm]80 mm
Outlet connection typeButt weld
Packing formatSingle pack
Parts Program nameICMTS
FIA-140B
SVA-140B
PED categoryI
Product accessoriesSVL Flexline accessories
Product descriptionValve house
Quantity per packing format1 pc
REACH Candidate List substancesNo
RefrigerantsR744
ServiceableSVL Flexline spare parts
Temperature range [°C] [max]150 °C
Temperature range [°C] [min]-40 °C
Temperature range [°F] [max]302 °F
Temperature range [°F] [min]-40 °F
UL evaluatedYes
Used for productFIA-140B 80
ICMTS 80
SVA-140B 80
ApprovalC UL US LISTED
CE
CRN
Body materialSteel
BrandSVL Flexline
CE evaluatedYes
China RoHS complianceYes
China RoHS exemption clauseNo
Connection materialSteel
Connection standardANSIB36.10 SCH80
EN10216-2
Contains batteriesNo
DirectionStraightway
EU RoHS complianceYes
EU RoHS exemption clauseNo
Flow directionSingle-flow
Flow direction indicatorEmbossed 1-way arrow
Fluid Group2
Inlet connection size [in]3 in
Inlet connection size [mm]80 mm
Inlet connection typeButt weld
Max. Working Pressure [bar]140 bar
Max. Working Pressure [psig]2030 psig
Outlet connection size [in]3 in
Outlet connection size [mm]80 mm
Outlet connection typeButt weld
Packing formatSingle pack
Parts Program nameICMTS
FIA-140B
SVA-140B
PED categoryI
Product accessoriesSVL Flexline accessories
Product descriptionValve house
Quantity per packing format1 pc
REACH Candidate List substancesNo
RefrigerantsR744
ServiceableSVL Flexline spare parts
Temperature range [°C] [max]150 °C
Temperature range [°C] [min]-40 °C
Temperature range [°F] [max]302 °F
Temperature range [°F] [min]-40 °F
UL evaluatedYes
Used for productFIA-140B 80
ICMTS 80
SVA-140B 80
