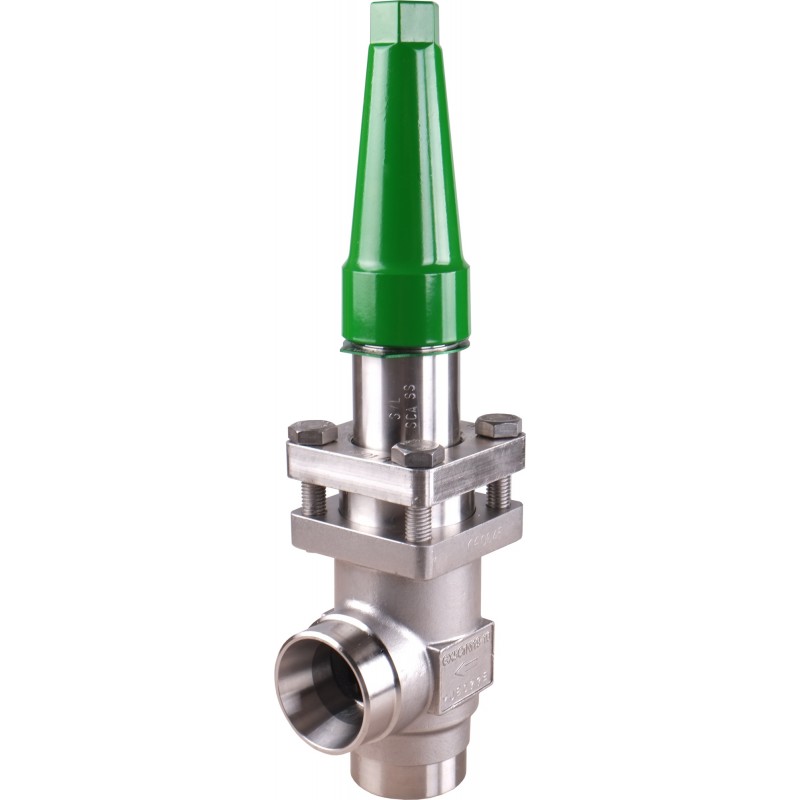

148B5381 DANFOSS REFRIGERATION SCA-X SS 20 D Ang Остановить Проверка клапан PS52
148B5381
DANFOSS REFRIGERATION
SCA-X SS 20 D Ang Остановить Проверка клапан PS52
Check and stop valve, SCA-X SS 20
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Max. Working Pressure [bar]: 52.0, Max. Working Pressure [psig]: 754, Temperature range [°C]: -60 - 150, Temperature range [°F]: -76 - 302
Product details
| Gross weight | 2.17 kg |
| Net weight | 1.75 kg |
| EAN | 5702428842136 |
| Gross weight | 2.17 kg |
| Net weight | 1.75 kg |
| EAN | 5702428842136 |
| Approval | CE |
| Brand | SVL Flexline |
| Category | Art. 3, par. 3 |
| Colour Paint | Reddish brown |
| Connection material | Stainless steel |
| Connection standard | EN 10220 |
| Cv value [gal/min] | 11.6 gal/min |
| Direction | Angleway |
| Equipment | Cap |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | I |
| Inlet connection size [in] | 3/4 in |
| Inlet connection size [mm] | 20 mm |
| Inlet connection type | Butt weld |
| Kv value [m³/h] | 10 m³/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| MinODP [bar] | 0.04 bar |
| MinODP [psi] | 0.62 psi |
| Outlet connection size [in] | 3/4 in |
| Outlet connection size [mm] | 20 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | SCA-X |
| Product accessories | SVL Flexline accessories |
| Product description | Stop Check Valve |
| Product family name | SCA SS |
| Product group | Check valves |
| Product name | Check and stop valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R22 R290 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R600 R600a R717 R744 R507A R1233zd(E) R1234yf R1234ze(E) R125 R152a R227ea R236fa R245fa R32 R407H R413A R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R512A R513A R513B R515A R515B R516A |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -76 °F |
| Type | SCA-X SS 20 |
| Valve version | Standard version |
| Approval | CE |
| Brand | SVL Flexline |
| Category | Art. 3, par. 3 |
| Colour Paint | Reddish brown |
| Connection material | Stainless steel |
| Connection standard | EN 10220 |
| Cv value [gal/min] | 11.6 gal/min |
| Direction | Angleway |
| Equipment | Cap |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | I |
| Inlet connection size [in] | 3/4 in |
| Inlet connection size [mm] | 20 mm |
| Inlet connection type | Butt weld |
| Kv value [m³/h] | 10 m³/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| MinODP [bar] | 0.04 bar |
| MinODP [psi] | 0.62 psi |
| Outlet connection size [in] | 3/4 in |
| Outlet connection size [mm] | 20 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | SCA-X |
| Product accessories | SVL Flexline accessories |
| Product description | Stop Check Valve |
| Product family name | SCA SS |
| Product group | Check valves |
| Product name | Check and stop valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R22 R290 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R600 R600a R717 R744 R507A R1233zd(E) R1234yf R1234ze(E) R125 R152a R227ea R236fa R245fa R32 R407H R413A R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R512A R513A R513B R515A R515B R516A |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -76 °F |
| Type | SCA-X SS 20 |
| Valve version | Standard version |
Datasheet - PDF
