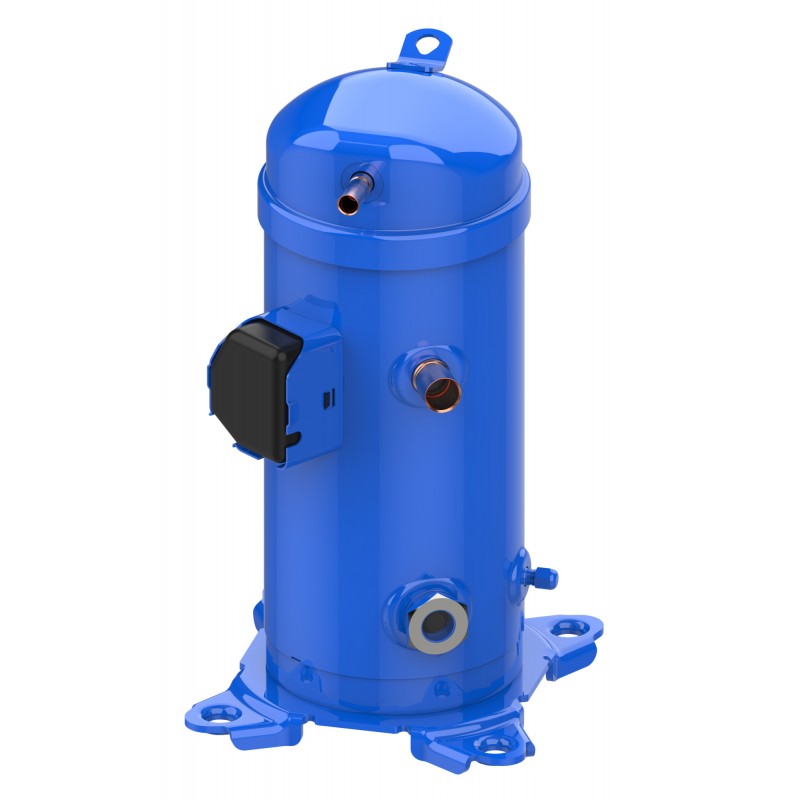

DANFOSS REFRIGERATION 121L8439 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

121L8439 DANFOSS REFRIGERATION MLZ030T5LC9B COMPRESSOR EURO M-PACK

Name: 121L8439 DANFOSS REFRIGERATION MLZ030T5LC9B COMPRESSOR EURO M-PACK
Brand: DANFOSS REFRIGERATION
SKU: DAO121L8439
Price: 4489.13 USD
Availability: OutOfStock

Code: 121L8439

Manufacturer: DANFOSS REFRIGERATION

Description:

MLZ030T5LC9B COMPRESSOR EURO M-PACK

Scroll compressor, MLZ030T5LC9B

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 4.010,23 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Refrigerants: R404A; R452A; R407A; R134a; R454C; R407F; R513A; R448A; R455A; R449A, Segment usage: Refrigeration HT; Refrigeration MT, Compressor power supply [V]: 220-240/1/50, Packing format: Single pack

Product details

Gross weight	43.05 Kilogram
Net weight	41 Kilogram
Volume	0.1 Cubic decimeter
EAN	5702424537470

Type	MLZ030B
Product group	Hermetic compressors
Product Name Description	Scroll compressor MLZ

Gross weight	43.05 Kilogram
Net weight	41 Kilogram
Volume	0.1 Cubic decimeter
EAN	5702424537470
Type	MLZ030B
Product group	Hermetic compressors
Product Name Description	Scroll compressor MLZ

Approval	CE UL UKCA
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]	1.31 Ohm
Brand technique	Scroll compressor
Capacity control	Fixed speed
Capacity of capacitor A	50 µF
Capacity of capacitor B	161-193 µF
CE mark	Yes
China RoHS compliance	Yes with exemptions
China RoHS exemption clause	7.1 7.3 8.1 8.3.1
Colour	Blue
Compressor power supply [V]	220-240/1/50
Configuration code	Single
Connection type	Brazed
Contains batteries	No
Description	MLZ030T5B
Diameter [mm]	183 mm
Discharge connection height [mm]	403 mm
Discharge connection pipe size [in]	1/2 in
Discharge connection size [in]	1/2 in
Drawing number	8590032
Economizer	No
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	7(c)-I 6(a) 6(a)-I 6(c) 7(a)
Family	MLZ
Fitting standard	ODF
Frequency [Hz]	50
Gauge port HP	None
Gauge port LP	None
Glass mounting	Threaded
Glass torque [Nm]	53 N-m
Height from baseplate [mm]	435 mm
High value of nominal voltage at 50Hz [V]	230 V
High value of voltage range at 50Hz [V]	253 V
IDV	No
In scope of WEEE	No
IP protection class	IP22
Liquid injection	No

Low value of nominal voltage at 50Hz [V]	230 V
Low value of voltage range at 50Hz [V]	207 V
LRA	127 A
Main winding resistance for single-phase compressors [Ohm]	0.42 Ohm
Max pressure (PS) - high side	30.8 bar
Max pressure (PS) - low side	26.2 bar
MCC	32 A
Model number	MLZ030T5LC9B
Motor protection	Internal overload protector
Network power supply [V/Ph/Hz]	220-240/1/50
Number of starts per hour [Max]	12
Oil charge [L]	1.73 L
Oil drain	1/4'' flare
Oil equalization	None
Oil reference	215PZ
Oil type	POE
Packing format	Single pack
Packing quantity	1
Phase	1
Power connections	Screw connectors 10-32 UNF x 9.5
Refrigerant charge [kg] [Max]	5.44 kg
Refrigerants	R134a R404A R407A R407F R448A R449A R452A R454C R455A R513A
RLA	20.5 A
Rotational speed at 50Hz [rpm]	2900 rpm
Segment usage	Refrigeration MT Refrigeration HT
Suction connection height [mm]	261 mm
Suction connection material	-
Suction connection pipe size [in]	7/8 in
Suction connection size [in]	7/8 in
Swept volume [cm3]	68.79 cm³
Technology	Scroll
Torque earth [Nm]	2 N-m
Torque power [Nm]	3 N-m
UL mark	Yes
Viscosity [cP]	46 cP
Voltage of capacitor A [V]	370 V
Voltage of capacitor B [V]	250 V

Approval	CE UL UKCA
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]	1.31 Ohm
Brand technique	Scroll compressor
Capacity control	Fixed speed
Capacity of capacitor A	50 µF
Capacity of capacitor B	161-193 µF
CE mark	Yes
China RoHS compliance	Yes with exemptions
China RoHS exemption clause	7.1 7.3 8.1 8.3.1
Colour	Blue
Compressor power supply [V]	220-240/1/50
Configuration code	Single
Connection type	Brazed
Contains batteries	No
Description	MLZ030T5B
Diameter [mm]	183 mm
Discharge connection height [mm]	403 mm
Discharge connection pipe size [in]	1/2 in
Discharge connection size [in]	1/2 in
Drawing number	8590032
Economizer	No
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	7(c)-I 6(a) 6(a)-I 6(c) 7(a)
Family	MLZ
Fitting standard	ODF
Frequency [Hz]	50
Gauge port HP	None
Gauge port LP	None
Glass mounting	Threaded
Glass torque [Nm]	53 N-m
Height from baseplate [mm]	435 mm
High value of nominal voltage at 50Hz [V]	230 V
High value of voltage range at 50Hz [V]	253 V
IDV	No
In scope of WEEE	No
IP protection class	IP22
Liquid injection	No
Low value of nominal voltage at 50Hz [V]	230 V
Low value of voltage range at 50Hz [V]	207 V
LRA	127 A
Main winding resistance for single-phase compressors [Ohm]	0.42 Ohm
Max pressure (PS) - high side	30.8 bar
Max pressure (PS) - low side	26.2 bar
MCC	32 A
Model number	MLZ030T5LC9B
Motor protection	Internal overload protector
Network power supply [V/Ph/Hz]	220-240/1/50
Number of starts per hour [Max]	12
Oil charge [L]	1.73 L
Oil drain	1/4'' flare
Oil equalization	None
Oil reference	215PZ
Oil type	POE
Packing format	Single pack
Packing quantity	1
Phase	1
Power connections	Screw connectors 10-32 UNF x 9.5
Refrigerant charge [kg] [Max]	5.44 kg
Refrigerants	R134a R404A R407A R407F R448A R449A R452A R454C R455A R513A
RLA	20.5 A
Rotational speed at 50Hz [rpm]	2900 rpm
Segment usage	Refrigeration MT Refrigeration HT
Suction connection height [mm]	261 mm
Suction connection material	-
Suction connection pipe size [in]	7/8 in
Suction connection size [in]	7/8 in
Swept volume [cm3]	68.79 cm³
Technology	Scroll
Torque earth [Nm]	2 N-m
Torque power [Nm]	3 N-m
UL mark	Yes
Viscosity [cP]	46 cP
Voltage of capacitor A [V]	370 V
Voltage of capacitor B [V]	250 V

DATASHEET - PDF

Title

Size

Type

121L8439 EN_121U8007.pdf

422 Kbytes

PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN

11 Mbytes
