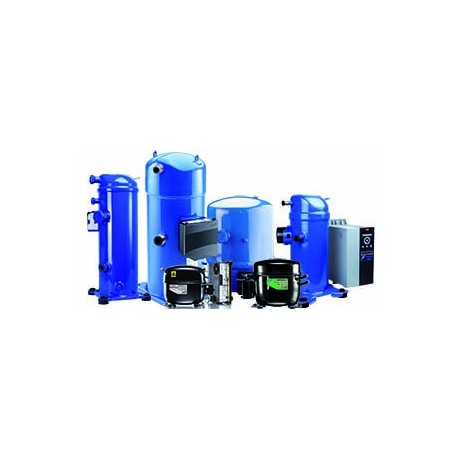

DANFOSS REFRIGERATION 120H0236 120H0236 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

120H0236 DANFOSS REFRIGERATION Scroll compressor, SH300A3ABE

Reference: 120H0236

Manufacturer: DANFOSS REFRIGERATION

Description:

Scroll compressor, SH300A3ABE

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Refrigerant: R410A, Segment usage: Air conditioning, Compressor power supply [V/Ph/Hz]: 200-230/3/60
Gross weight 163.08 Kg
Net weight 158.08 Kg
Approval standard CE
UL
Brand technique Scroll compressor
Capacity control Fixed speed
Colour Blue
Compressor power supply [V/Ph/Hz] 200-230/3/60
Configuration code Single
Connection type Brazed
Description SH300-3
Diameter [mm] 333 mm
Discharge connection height [mm] 664 mm
Discharge connection pipe size [in] 1.125 in
Discharge connection size [in] 1.125 in
Drawing number 8556090c
Economizer No
Factory HP [bar] 0 bar
Factory LP [bar] 0 bar
Fitting standard ODF
Frequency [Hz] 60
Gauge port HP None
Gauge port LP Schrader
Generation code B
Glass mounting Threaded
Glass torque [Nm] 50 N-m
High value of nominal voltage at 50Hz [V] 0 V
High value of nominal voltage at 60Hz [V] 230 V
High value of voltage range at 50Hz [V] 0 V
High value of voltage range at 60Hz [V] 253 V
IP protection class IP54 (with cable gland)
Low value of nominal voltage at 50Hz [V] 0 V
Low value of nominal voltage at 60Hz [V] 200 V
Low value of voltage range at 50Hz [V] 0 V
Low value of voltage range at 60Hz [V] 180 V
LRA 560 A
MCC 132 A
Model number SH300A3ABE
Motor protection Electronic protection module, 110/240 V
Mounting torque [Nm] 21 N-m
Nominal cooling capacity 60 kBTU/h 317.75 KBtu/h
Nominal cooling capacity at 60Hz 93.1 kW
Number of starts per hour [Max] 12
Oil charge [L] 6.7 L
Oil drain 1/4'' flare
Oil equalization 2-1/4'' Rotolock
Oil reference 160SZ
Packaging height [mm] 768 mm
Packaging length [mm] 1150 mm
Packaging weight [Kg] 627 kg
Packaging width [mm] 965 mm
Packing format Industrial pack
Packing quantity 4
Phase 3
Power connections Screw 4.8 mm
Product type SH
Refrigerant R410A
Refrigerant charge [kg] [Max] 13.5 kg
Relief valve None
Reverse rotation protection Electronic module
RLA 94.3 A
Rotational speed at 50Hz [rpm] 0 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Air conditioning
Shipped instructions Installation instructions
Shipped module Electronic protection module mounted in terminal box
Shipped mounting Mounting kit with rigid grommets, bolts, nuts, sleeves and washers
Shipped oil Initial oil charge
Suction connection height [mm] 331 mm
Suction connection pipe size [in] 1.625 in
Suction connection size [in] 1.625 in
Swept volume [cm3] 285.5 cm3
Technology Scroll
Test dif [bar] [Max] 37 bar
Test HP [bar] [Max] 45 bar
Test LP [bar] [Max] 30 bar
Torque earth [Nm] 2 N-m
Torque power [Nm] 3 N-m
Total height [mm] 723 mm
Type designation Compressor
Viscosity [cP] 32 cP
Winding resistance for three-phase compressors with identical windings [Ohm] 0.13 Ohm
