114X7314 DANFOSS REFRIGERATION ОП-МСИМ080МЛВ05Г
114X7314
DANFOSS REFRIGERATION
ОП-МСИМ080МЛВ05Г

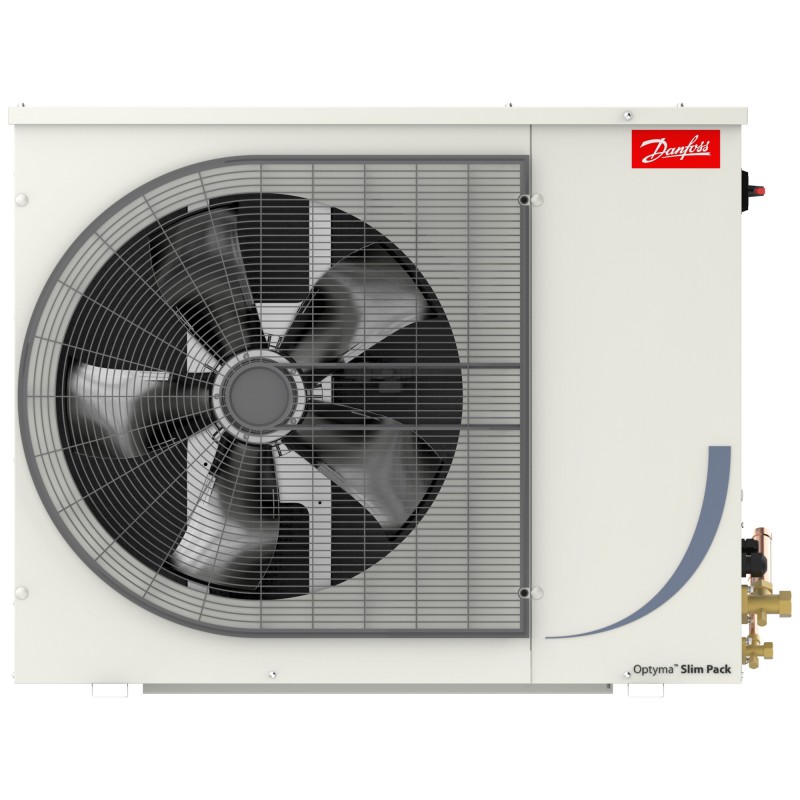

Optyma™ Slim Pack, OP-MSIM080MLW05G
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Segment usage: Medium Back Pressure, Refrigerant: R134a; R404A; R407A; R407F; R448A; R449A; R452A; R454C; R455A; R513A, Compressor power supply [V/Ph/Hz]: 230/1/50
Product details
| Gross weight | 96 kg |
| Net weight | 76 kg |
| EAN | 5702424592417 |
| Gross weight | 96 kg |
| Net weight | 76 kg |
| EAN | 5702424592417 |
| Air flow @ 50Hz [m³/h] | 5200 m³/h |
| Applications | MBP |
| Approval standard | CE |
| Capacity control | Fixed speed |
| Compressor model | MLZ038T5 |
| Compressor power supply [V/Ph/Hz] | 230/1/50 |
| Condenser Coil Internal Volume | 1.62 mm³ |
| Condenser type | G7 |
| Connection type | Solder |
| Description | OP-MSIM080MLW05G |
| Electrical code | G |
| Fan blade size [mm] | 560 mm |
| Fan cowl/grill type | B3 |
| Fan current @ 50Hz [A] | 1.6 A |
| Fan diameter [mm] | 560 mm |
| Fan power consumption @ 50Hz [W] | 140 W |
| Fan power output @ 50Hz [W] | 72 W |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| Liquid line connection [in] | 1/2 in |
| MCC | 38 A |
| Model number | OP-MSIM080MLW05G |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Receiver approval | CE EAC |
| Receiver volume [L] | 6.2 L |
| Refrigerant | R134a R404A R407A R407F R448A R449A R452A R454C R455A R513A |
| Segment usage | Medium Back Pressure |
| Sound power @ 50Hz [db(A)] | 79 dBA |
| Sound pressure level 50Hz (@1 m distance) [db(A)] | 68 dBA |
| Sound pressure level 50Hz (@10 m distance) [db(A)] | 48 dBA |
| Suction connection size [in] | 3/8 in |
| Technology | Scroll |
| Type | Optyma™ Slim Pack |
| Type designation | Condensing Units |
| Version | W05 |
| Voltage 50Hz [V] | 187 V |
| Voltage 50Hz [V] [Max] | 255 V |
| Air flow @ 50Hz [m³/h] | 5200 m³/h |
| Applications | MBP |
| Approval standard | CE |
| Capacity control | Fixed speed |
| Compressor model | MLZ038T5 |
| Compressor power supply [V/Ph/Hz] | 230/1/50 |
| Condenser Coil Internal Volume | 1.62 mm³ |
| Condenser type | G7 |
| Connection type | Solder |
| Description | OP-MSIM080MLW05G |
| Electrical code | G |
| Fan blade size [mm] | 560 mm |
| Fan cowl/grill type | B3 |
| Fan current @ 50Hz [A] | 1.6 A |
| Fan diameter [mm] | 560 mm |
| Fan power consumption @ 50Hz [W] | 140 W |
| Fan power output @ 50Hz [W] | 72 W |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| Liquid line connection [in] | 1/2 in |
| MCC | 38 A |
| Model number | OP-MSIM080MLW05G |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Receiver approval | CE EAC |
| Receiver volume [L] | 6.2 L |
| Refrigerant | R134a R404A R407A R407F R448A R449A R452A R454C R455A R513A |
| Segment usage | Medium Back Pressure |
| Sound power @ 50Hz [db(A)] | 79 dBA |
| Sound pressure level 50Hz (@1 m distance) [db(A)] | 68 dBA |
| Sound pressure level 50Hz (@10 m distance) [db(A)] | 48 dBA |
| Suction connection size [in] | 3/8 in |
| Technology | Scroll |
| Type | Optyma™ Slim Pack |
| Type designation | Condensing Units |
| Version | W05 |
| Voltage 50Hz [V] | 187 V |
| Voltage 50Hz [V] [Max] | 255 V |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
