DANFOSS REFRIGERATION105G6885 DANFOSS REFRIGERATION Reciprocating compressor, NL10MF

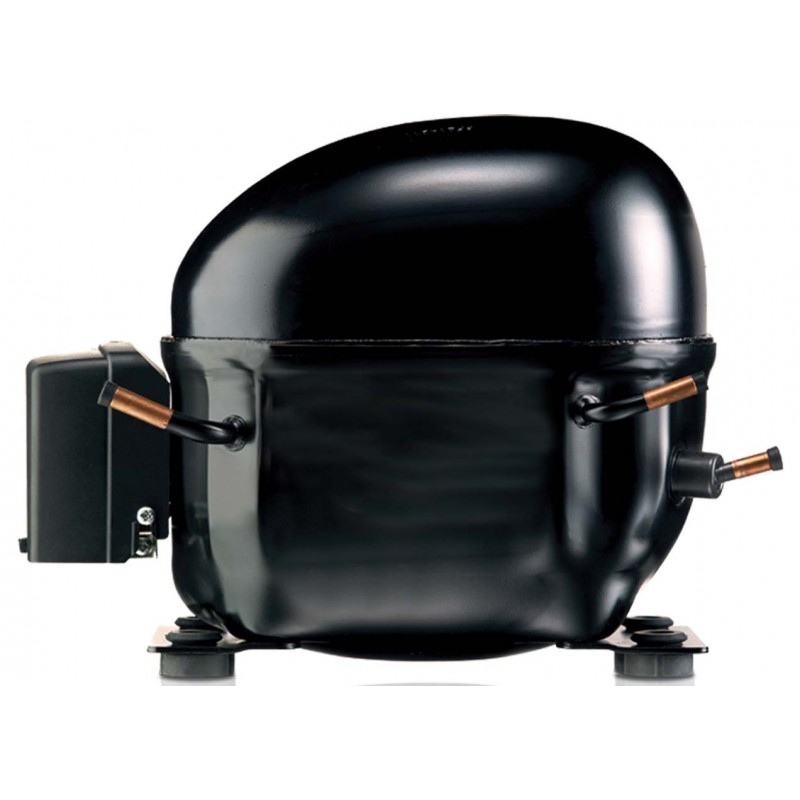

DANFOSS REFRIGERATION 105G6885 105G6885 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

105G6885 DANFOSS REFRIGERATION Reciprocating compressor, NL10MF

Reference: 105G6885

Manufacturer: DANFOSS REFRIGERATION

Description:

Reciprocating compressor, NL10MF

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Refrigerants: R134a, Segment usage: Refrigeration MT, Compressor power supply [V]: 220/1/50 220/1/60

Product details

Gross weight11.088 Kg
Net weight10.915 Kg
EAN5702424680466
Gross weight11.088 Kg
Net weight10.915 Kg
EAN5702424680466

ApplicationsMBP
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]17.5
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm]17.5
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V]220/1/50 220/1/60
Configuration codeSingle
Cut in current HST [A]16.6 A
Cut in current LST [A]17 A
DescriptionNL10MF
Discharge connection angle [°]35 °
Discharge connection commentsRubber plug
Discharge connection diameter [mm]6.2 mm
Discharge connection materialCopper
EconomizerNo
FamilyNL
Free gas volume [cm3]2360 cm³
Frequency [Hz]50/60
Height from baseplate [mm]197 mm
High value of nominal voltage at 50Hz [V]230 V
High value of nominal voltage at 60Hz [V]230 V
High value of voltage range at 50Hz [V]254 V
High value of voltage range at 60Hz [V]254 V
In scope of WEEE and contain batteriesNo
Length [mm]252 mm
Liquid injectionNo
Low value of nominal voltage at 50Hz [V]220 V
Low value of nominal voltage at 60Hz [V]220 V
Low value of voltage range at 50Hz [V]198 V
Low value of voltage range at 60Hz [V]198 V
LRA HST 60Hz [A]16.6 A
LRA HST [A]16.6 A
LRA LST [A]13 A
Main winding resistance for single-phase compressors [Ohm]6.1
Model numberNL10MF
Motor typeCSIR
RSIR
No. of phases (compressor)1
No. of phases (fan)1
Oil quantity [cm3]300 cm³
Oil typePOE
Packing formatIndustrial pack
Packing quantity80
Phase1
Process connection angle [°]25 °
Process connection commentsRubber plug
Process connection diameter [mm]6.2 mm
Process connection materialCopper
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor NL
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]0.6 kg
RefrigerantsR134a
RLA2.80 A
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
Segment usageRefrigeration MT
Suction connection angle [°]15 °
Suction connection diameter [mm]8.2 mm
Suction connection materialCopper
Swept volume [cm3]10.09 cm³
TechnologyReciprocating
Total height [mm]203 mm
TypeNL10
Voltage 50Hz [V]220 V
Voltage 50Hz [V] [Max]240 V
Voltage 60Hz [V]208 V
Voltage 60Hz [V] [Max]230 V
Width [mm]166 mm
Winding temperature short term [°C] [Max]135 °C
Winding temperature stat [°C] [Max]125 °C
ApplicationsMBP
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]17.5
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm]17.5
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V]220/1/50 220/1/60
Configuration codeSingle
Cut in current HST [A]16.6 A
Cut in current LST [A]17 A
DescriptionNL10MF
Discharge connection angle [°]35 °
Discharge connection commentsRubber plug
Discharge connection diameter [mm]6.2 mm
Discharge connection materialCopper
EconomizerNo
FamilyNL
Free gas volume [cm3]2360 cm³
Frequency [Hz]50/60
Height from baseplate [mm]197 mm
High value of nominal voltage at 50Hz [V]230 V
High value of nominal voltage at 60Hz [V]230 V
High value of voltage range at 50Hz [V]254 V
High value of voltage range at 60Hz [V]254 V
In scope of WEEE and contain batteriesNo
Length [mm]252 mm
Liquid injectionNo
Low value of nominal voltage at 50Hz [V]220 V
Low value of nominal voltage at 60Hz [V]220 V
Low value of voltage range at 50Hz [V]198 V
Low value of voltage range at 60Hz [V]198 V
LRA HST 60Hz [A]16.6 A
LRA HST [A]16.6 A
LRA LST [A]13 A
Main winding resistance for single-phase compressors [Ohm]6.1
Model numberNL10MF
Motor typeCSIR
RSIR
No. of phases (compressor)1
No. of phases (fan)1
Oil quantity [cm3]300 cm³
Oil typePOE
Packing formatIndustrial pack
Packing quantity80
Phase1
Process connection angle [°]25 °
Process connection commentsRubber plug
Process connection diameter [mm]6.2 mm
Process connection materialCopper
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor NL
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]0.6 kg
RefrigerantsR134a
RLA2.80 A
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
Segment usageRefrigeration MT
Suction connection angle [°]15 °
Suction connection diameter [mm]8.2 mm
Suction connection materialCopper
Swept volume [cm3]10.09 cm³
TechnologyReciprocating
Total height [mm]203 mm
TypeNL10
Voltage 50Hz [V]220 V
Voltage 50Hz [V] [Max]240 V
Voltage 60Hz [V]208 V
Voltage 60Hz [V] [Max]230 V
Width [mm]166 mm
Winding temperature short term [°C] [Max]135 °C
Winding temperature stat [°C] [Max]125 °C
