Product:MTZ18-4VM DANFOSS REFRIGERATION Reciproc...
Images are for illustrative purposes only. Please refer to data sheet for details.

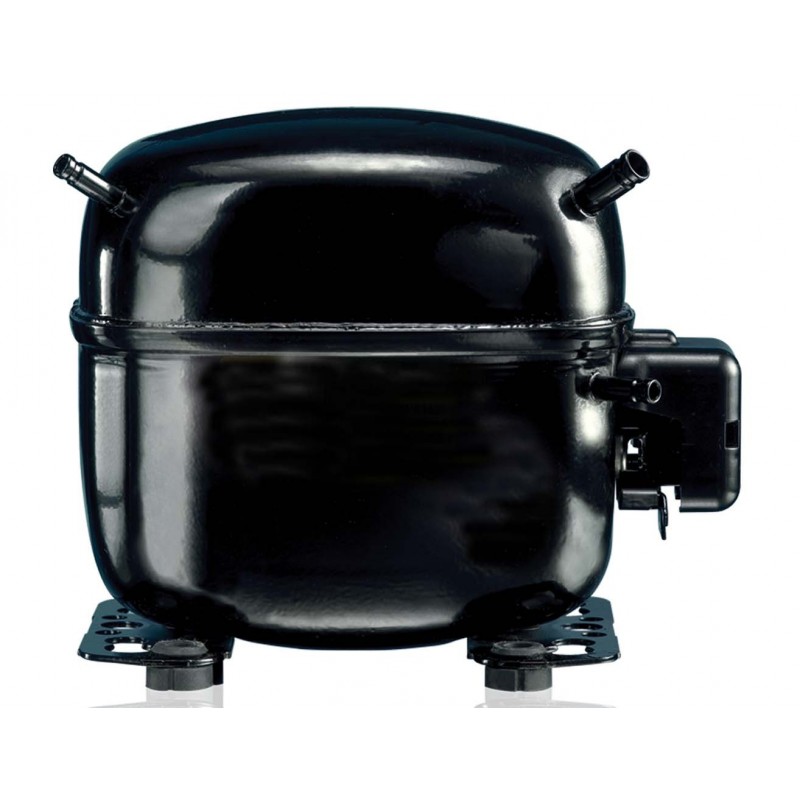

104L2859 DANFOSS REFRIGERATION Reciprocating compressor, SC15D
Reference: 104L2859
Manufacturer: DANFOSS REFRIGERATION
Description:
Reciprocating compressor, SC15D
Categories:
- DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
LAST VIEWED
MORE INFO
Refrigerants: R22, Segment usage: Refrigeration MT
Product details
| Gross weight | 13.412 Kg |
| Net weight | 13.412 Kg |
| Volume | 12.309 Liter |
| Gross weight | 13.412 Kg |
| Net weight | 13.412 Kg |
| Volume | 12.309 Liter |
| Approval | CE |
| Approval standard | EN 60335-2-34 with Annex AA |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 22.8 |
| Brand technique | Reciprocating compressor |
| Colour | Black |
| Cut in current HST [A] | 17.9 A |
| Description | SC15D |
| Discharge connection angle [°] | 37 ° |
| Discharge connection comments | Al-cap |
| Discharge connection diameter [mm] | 8.2 mm |
| Discharge connection height [mm] | 100 mm |
| Discharge connection material | Cu-plated steel |
| Drawing number | 0 |
| Family | SC |
| Free gas volume [cm3] | 1510 cm³ |
| Height from baseplate [mm] | 203 mm |
| In scope of WEEE and contain batteries | No |
| LRA HST [A] | 17.9 A |
| Main winding resistance for single-phase compressors [Ohm] | 5.1 |
| Model number | SC15D |
| Motor type | CSR |
| No. of phases (fan) | 1 |
| Oil quantity [cm3] | 550 cm³ |
| Oil type | AB |
| Packing format | Industrial pack |
| Process connection angle [°] | 37 ° |
| Process connection comments | Al-cap |
| Process connection diameter [mm] | 6.2 mm |
| Process connection material | Cu-plated steel |
| Product group | Hermetic compressors |
| Product Name Description | Reciprocating compressor SC |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerant charge [kg] [Max] | 1.3 kg |
| Run capacitor capacitance | 10 µF |
| Suction connection angle [°] | 37 ° |
| Suction connection diameter [mm] | 10.2 mm |
| Suction connection height [mm] | 183 mm |
| Suction connection material | Cu-plated steel |
| Swept volume [cm3] | 15.28 cm³ |
| Technology | Reciprocating |
| Total height [mm] | 209 mm |
| Type | SC15 |
| Voltage 50Hz [V] | 220 V |
| Voltage 50Hz [V] [Max] | 240 V |
| Winding temperature short term [°C] [Max] | 140 °C |
| Winding temperature stat [°C] [Max] | 130 °C |
| Approval | CE |
| Approval standard | EN 60335-2-34 with Annex AA |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 22.8 |
| Brand technique | Reciprocating compressor |
| Colour | Black |
| Cut in current HST [A] | 17.9 A |
| Description | SC15D |
| Discharge connection angle [°] | 37 ° |
| Discharge connection comments | Al-cap |
| Discharge connection diameter [mm] | 8.2 mm |
| Discharge connection height [mm] | 100 mm |
| Discharge connection material | Cu-plated steel |
| Drawing number | 0 |
| Family | SC |
| Free gas volume [cm3] | 1510 cm³ |
| Height from baseplate [mm] | 203 mm |
| In scope of WEEE and contain batteries | No |
| LRA HST [A] | 17.9 A |
| Main winding resistance for single-phase compressors [Ohm] | 5.1 |
| Model number | SC15D |
| Motor type | CSR |
| No. of phases (fan) | 1 |
| Oil quantity [cm3] | 550 cm³ |
| Oil type | AB |
| Packing format | Industrial pack |
| Process connection angle [°] | 37 ° |
| Process connection comments | Al-cap |
| Process connection diameter [mm] | 6.2 mm |
| Process connection material | Cu-plated steel |
| Product group | Hermetic compressors |
| Product Name Description | Reciprocating compressor SC |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerant charge [kg] [Max] | 1.3 kg |
| Run capacitor capacitance | 10 µF |
| Suction connection angle [°] | 37 ° |
| Suction connection diameter [mm] | 10.2 mm |
| Suction connection height [mm] | 183 mm |
| Suction connection material | Cu-plated steel |
| Swept volume [cm3] | 15.28 cm³ |
| Technology | Reciprocating |
| Total height [mm] | 209 mm |
| Type | SC15 |
| Voltage 50Hz [V] | 220 V |
| Voltage 50Hz [V] [Max] | 240 V |
| Winding temperature short term [°C] [Max] | 140 °C |
| Winding temperature stat [°C] [Max] | 130 °C |
