Product:MTZ18-4VM DANFOSS REFRIGERATION Reciproc...
Images are for illustrative purposes only. Please refer to data sheet for details.

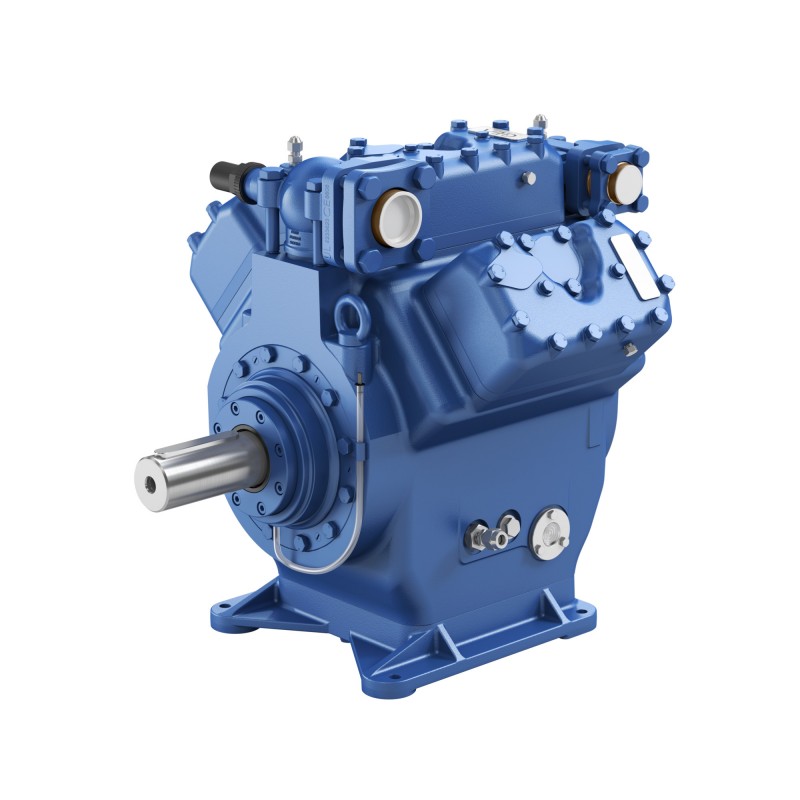

097B11578 DANFOSS REFRIGERATION BOCK, FX76/2050, Open Type Compressor
Reference: 097B11578
Manufacturer: DANFOSS REFRIGERATION
Description:
BOCK, FX76/2050, Open Type Compressor
Categories:
- DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
LAST VIEWED
MORE INFO
Refrigerants: R404A; R407C; R134a, Compressor power supply [V]: w/o motor, Oil type: BOCKlub E55, Legacy BOCK ID: 11578
Product details
| Gross weight | 228 Kilogram |
| Net weight | 213.4 Kilogram |
| Volume | 448.38 Liter |
| EAN | 5715162578681 |
| Type | FX76 |
| Product group | Open type compressors |
| Product Name Description | Reciprocating compressor F |
| Gross weight | 228 Kilogram |
| Net weight | 213.4 Kilogram |
| Volume | 448.38 Liter |
| EAN | 5715162578681 |
| Type | FX76 |
| Product group | Open type compressors |
| Product Name Description | Reciprocating compressor F |
| Approval standard | No |
| Brand | BOCK |
| Capacity regulator | No |
| Clutch type | No |
| Colour | Blue (standard) |
| Compressor power supply [V] | w/o motor |
| Contains batteries | No |
| Cylinder | 6 |
| Description | Compressor FX76/2050 |
| Discharge connection size [in] | 1 5/8 in |
| Discharge connection size [mm] | 42 mm |
| Discharge connection size type | Standard |
| Discharge connection type | Soldering |
| Elevated base plate | No |
| Family | F Compressors |
| Flywheel | No |
| Frequency Hz | w/o motor |
| In scope of WEEE | No |
| Legacy BOCK ID | 11578 |
| Length (mm) | 650 |
| Max pressure (PS) - high side | 28 bar |
| Max pressure (PS) - low side | 19 bar |
| Model number | FX76/2050 |
| Oil differential pressure sensor | No |
| Oil pressure safety switch | No |
| Oil service valve | No |
| Oil sump heater | No |
| Oil temperature sensor | No |
| Oil type | BOCKlub E55 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1) |
| Refrigerants | R134a R404A R407C |
| SCIP dossier no. | e7647917-66ef-46af-bba0-55a677cabf0c |
| SCIP dossier product name | F(X)76/…. – series |
| Step protection for CR/SU | No |
| Suction connection size [in] | 2 1/8 in |
| Suction connection size [mm] | 54 mm |
| Suction connection size type | Standard |
| Suction connection type | Soldering |
| Technology | Open Type Compressor |
| Thermal protection thermostat | No |
| Total height [mm] | 584 mm |
| Type designation | FX76/2050 |
| Width [mm] | 571 mm |
| Approval standard | No |
| Brand | BOCK |
| Capacity regulator | No |
| Clutch type | No |
| Colour | Blue (standard) |
| Compressor power supply [V] | w/o motor |
| Contains batteries | No |
| Cylinder | 6 |
| Description | Compressor FX76/2050 |
| Discharge connection size [in] | 1 5/8 in |
| Discharge connection size [mm] | 42 mm |
| Discharge connection size type | Standard |
| Discharge connection type | Soldering |
| Elevated base plate | No |
| Family | F Compressors |
| Flywheel | No |
| Frequency Hz | w/o motor |
| In scope of WEEE | No |
| Legacy BOCK ID | 11578 |
| Length (mm) | 650 |
| Max pressure (PS) - high side | 28 bar |
| Max pressure (PS) - low side | 19 bar |
| Model number | FX76/2050 |
| Oil differential pressure sensor | No |
| Oil pressure safety switch | No |
| Oil service valve | No |
| Oil sump heater | No |
| Oil temperature sensor | No |
| Oil type | BOCKlub E55 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1) |
| Refrigerants | R134a R404A R407C |
| SCIP dossier no. | e7647917-66ef-46af-bba0-55a677cabf0c |
| SCIP dossier product name | F(X)76/…. – series |
| Step protection for CR/SU | No |
| Suction connection size [in] | 2 1/8 in |
| Suction connection size [mm] | 54 mm |
| Suction connection size type | Standard |
| Suction connection type | Soldering |
| Technology | Open Type Compressor |
| Thermal protection thermostat | No |
| Total height [mm] | 584 mm |
| Type designation | FX76/2050 |
| Width [mm] | 571 mm |
