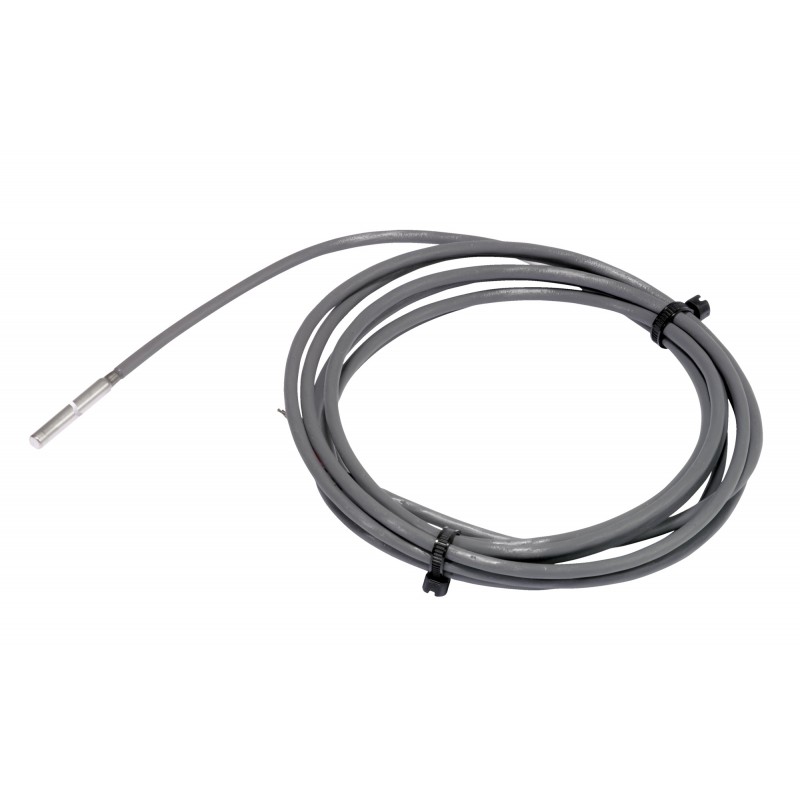

084Z5295 DANFOSS REFRIGERATION MBT 153-4100-0300 Sensor

Name: 084Z5295 DANFOSS REFRIGERATION MBT 153-4100-0300 Sensor
Brand: DANFOSS REFRIGERATION
SKU: DAO084Z5295
Price: 114.79 USD
Availability: OutOfStock

Code: 084Z5295

Manufacturer: DANFOSS REFRIGERATION

Description:

MBT 153-4100-0300 Sensor

Temperature sensor, MBT 153, 3 m, Pt, 100 Ohm

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
Reviews

Guarantee, repair and return.

Unit Price: 102,55 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Electrical connection: Cable, Cable type: Teflon

Product details

Gross weight	0.136 Kilogram
Net weight	0.124 Kilogram

Volume	0.5 Liter
EAN	5702423166442

Gross weight	0.136 Kilogram
Net weight	0.124 Kilogram
Volume	0.5 Liter
EAN	5702423166442

Cable length [in]	118 in
Cable length [m]	3 m
Cable tempr. range [°C] [max]	200 °C
Cable tempr. range [°C] [min]	-80 °C
Cable tempr. range [°F] [max]	392 °F
Cable tempr. range [°F] [min]	-112 °F
Cable type	Teflon
CE evaluated	Yes
China RoHS compliance	Yes exceed limitations
Contain batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical connection	Cable
Electrical connection size	4 wire
Enclosure rating IP	IP68
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a) 6(b) 6(c) 7(a) 7(c)-I
In scope of WEEE	Yes
Insertion type	Variable
Output signal	Ohm
Packing format	Multi pack
Product group	Sensors

Product Name Description	Temperature sensor
Protection tube diameter [in]	0.236 in
Protection tube diameter [mm]	6 mm
Protection tube material	AISI 305
Quantity per packing format	10 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	fdf4160e-1955-41c0-8584-16b48c4e3655
Sensor elem. resistance [Ohm]	100
Sensor element [pc]	2 pc
Sensor element standard	EN 60751
Sensor element tolerance	Class B
Sensor element type	Pt
Temperature range [°C] [max]	200 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	392 °F
Temperature range [°F] [min]	-58 °F
Type	MBT 153
Type designation	MBT 153-4100-0300
UK RoHS compliance	Out of scope
Wires [pcs]	2 pc

Cable length [in]	118 in
Cable length [m]	3 m
Cable tempr. range [°C] [max]	200 °C
Cable tempr. range [°C] [min]	-80 °C
Cable tempr. range [°F] [max]	392 °F
Cable tempr. range [°F] [min]	-112 °F
Cable type	Teflon
CE evaluated	Yes
China RoHS compliance	Yes exceed limitations
Contain batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical connection	Cable
Electrical connection size	4 wire
Enclosure rating IP	IP68
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a) 6(b) 6(c) 7(a) 7(c)-I
In scope of WEEE	Yes
Insertion type	Variable
Output signal	Ohm
Packing format	Multi pack
Product group	Sensors
Product Name Description	Temperature sensor
Protection tube diameter [in]	0.236 in
Protection tube diameter [mm]	6 mm
Protection tube material	AISI 305
Quantity per packing format	10 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	fdf4160e-1955-41c0-8584-16b48c4e3655
Sensor elem. resistance [Ohm]	100
Sensor element [pc]	2 pc
Sensor element standard	EN 60751
Sensor element tolerance	Class B
Sensor element type	Pt
Temperature range [°C] [max]	200 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	392 °F
Temperature range [°F] [min]	-58 °F
Type	MBT 153
Type designation	MBT 153-4100-0300
UK RoHS compliance	Out of scope
Wires [pcs]	2 pc

DATASHEET - PDF

Title

Size

Type

PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN

11 Mbytes
