DANFOSS REFRIGERATION084Z2312 DANFOSS REFRIGERATION MBT 153-B101-1000 Sensor

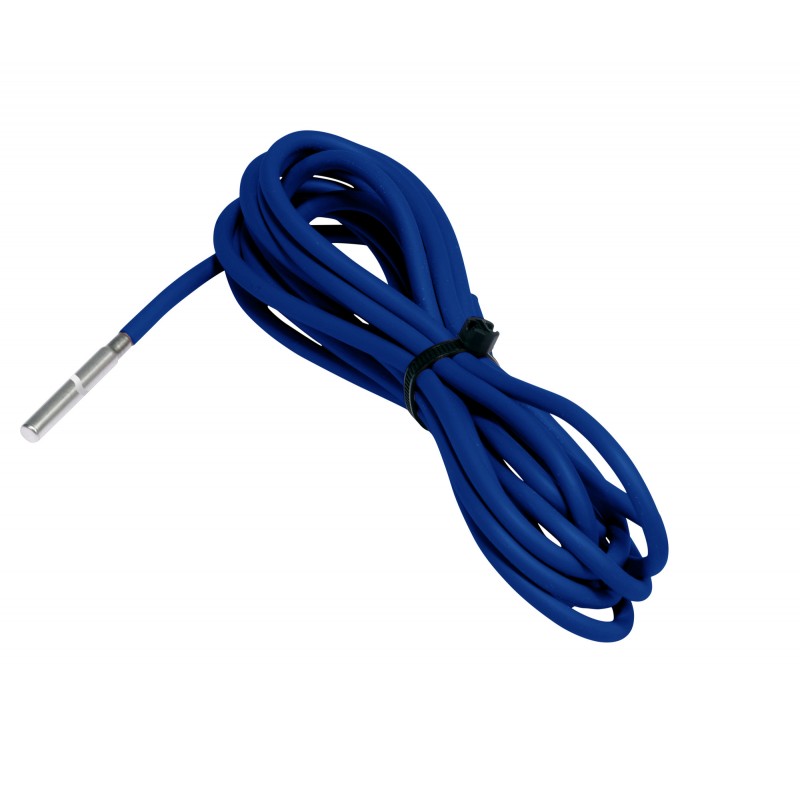

DANFOSS REFRIGERATION 084Z2312 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

084Z2312 DANFOSS REFRIGERATION MBT 153-B101-1000 Sensor

Code: 084Z2312

Manufacturer: DANFOSS REFRIGERATION

Description:

MBT 153-B101-1000 Sensor
Temperature sensor, MBT 153, 10 m, Pt, 100 Ohm

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 319,28 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Electrical connection: Cable, Cable type: Teflon

Product details

Gross weight0.514 Kilogram
Net weight0.481 Kilogram
Volume0.63 Liter
EAN5702428889117
TypeMBT 153
Product groupSensors
Product Name DescriptionTemperature sensor
Gross weight0.514 Kilogram
Net weight0.481 Kilogram
Volume0.63 Liter
EAN5702428889117
TypeMBT 153
Product groupSensors
Product Name DescriptionTemperature sensor

ApprovalCE
Cable length [in]394 in
Cable length [m]10 m
Cable tempr. range [°C] [max]200 °C
Cable tempr. range [°C] [min]-80 °C
Cable tempr. range [°F] [max]392 °F
Cable tempr. range [°F] [min]-112 °F
Cable typeTeflon
CE evaluatedYes
China RoHS complianceOut of scope
Contains batteriesNo
EEE category5 small equipment (any external dimension < 50 cm)
Electrical connectionCable
Electrical connection size6 wire
Enclosure rating IPIP68
EU RoHS complianceYes
In scope of WEEEYes
Insertion typeVariable
Output signalOhm
Packing formatMulti pack
Protection tube diameter [in]0.236 in
Protection tube diameter [mm]6 mm
Protection tube materialAISI 305
Quantity per packing format10 pc
REACH Candidate List substancesNo
Sensor elem. resistance [Ohm]100 Ohm
Sensor element [pc]2 pc
Sensor element standardEN 60751
Sensor element toleranceClass B
Sensor element typePt
Temperature range [°C] [max]200 °C
Temperature range [°C] [min]-50 °C
Temperature range [°F] [max]392 °F
Temperature range [°F] [min]-58 °F
Type designationMBT 153-B101-1000
Wires [pcs]3 pc
ApprovalCE
Cable length [in]394 in
Cable length [m]10 m
Cable tempr. range [°C] [max]200 °C
Cable tempr. range [°C] [min]-80 °C
Cable tempr. range [°F] [max]392 °F
Cable tempr. range [°F] [min]-112 °F
Cable typeTeflon
CE evaluatedYes
China RoHS complianceOut of scope
Contains batteriesNo
EEE category5 small equipment (any external dimension < 50 cm)
Electrical connectionCable
Electrical connection size6 wire
Enclosure rating IPIP68
EU RoHS complianceYes
In scope of WEEEYes
Insertion typeVariable
Output signalOhm
Packing formatMulti pack
Protection tube diameter [in]0.236 in
Protection tube diameter [mm]6 mm
Protection tube materialAISI 305
Quantity per packing format10 pc
REACH Candidate List substancesNo
Sensor elem. resistance [Ohm]100 Ohm
Sensor element [pc]2 pc
Sensor element standardEN 60751
Sensor element toleranceClass B
Sensor element typePt
Temperature range [°C] [max]200 °C
Temperature range [°C] [min]-50 °C
Temperature range [°F] [max]392 °F
Temperature range [°F] [min]-58 °F
Type designationMBT 153-B101-1000
Wires [pcs]3 pc
