084H4564 DANFOSS REFRIGERATION AKS 4100 Коаксиальный 1500 мм с HMI Asia
084H4564
DANFOSS REFRIGERATION
AKS 4100 Коаксиальный 1500 мм с HMI Asia

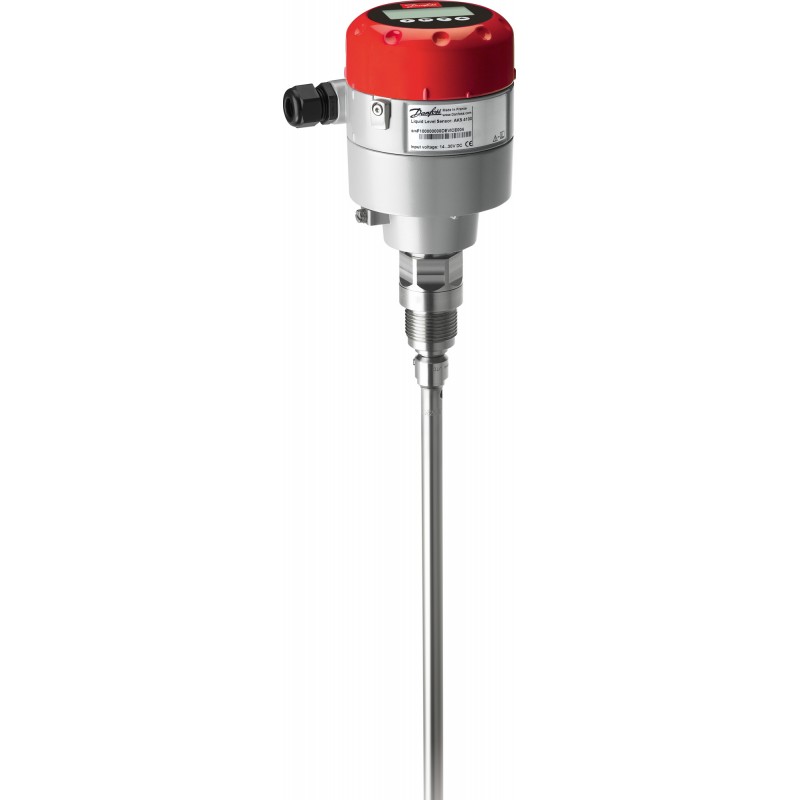

Liquid level sensor, AKS 4100, Coaxial version
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Design: Coaxial version, Parts included: HMI with EN,JA,ZH,RU Language, Connection size [in]: 1, Connection type: G, Insertion length [mm]: 1500, Supply voltage [V] DC: 14.00 - 30.00
Product details
| Gross weight | 7.381 Kg |
| Net weight | 2.5 Kg |
| Volume | 66.768 Liter |
| EAN | 5702428869768 |
| Gross weight | 7.381 Kg |
| Net weight | 2.5 Kg |
| Volume | 66.768 Liter |
| EAN | 5702428869768 |
| Ambient temperature range [°C] [max] | 80 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 176 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | CE EAC LLC CDC TYSK UKCA |
| Connection size [in] | 1 |
| Connection type | G |
| Design | Coaxial version |
| Enclosure rating IP | IP67 |
| Insertion length [in] | 59.1 in |
| Insertion length [mm] | 1500 mm |
| Load resistance max. [Ohm] | 500 |
| Max. Working Pressure [bar] | 100 bar |
| Max. Working Pressure [psig] | 1450 psig |
| Output signal [mA] [max] | 20 mA |
| Output signal [mA] [min] | 4 mA |
| Packing format | Single pack |
| Parts included | HMI with EN,JA,ZH,RU Language |
| Power consumption [W] | 0.7 W |
| Product accessories | Liq. level switch accessories |
| Product description | Liquid Level Sensor |
| Product group | Sensors |
| Product Name Description | Liquid level sensor |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R507A |
| Serviceable | Liq. level switch spare parts |
| Supply voltage [V] DC [max] | 30 V |
| Supply voltage [V] DC [min] | 14 V |
| Temperature range [°C] [max] | 100 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 212 °F |
| Temperature range [°F] [min] | -76 °F |
| Type | AKS 4100 |
| Ambient temperature range [°C] [max] | 80 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 176 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | CE EAC LLC CDC TYSK UKCA |
| Connection size [in] | 1 |
| Connection type | G |
| Design | Coaxial version |
| Enclosure rating IP | IP67 |
| Insertion length [in] | 59.1 in |
| Insertion length [mm] | 1500 mm |
| Load resistance max. [Ohm] | 500 |
| Max. Working Pressure [bar] | 100 bar |
| Max. Working Pressure [psig] | 1450 psig |
| Output signal [mA] [max] | 20 mA |
| Output signal [mA] [min] | 4 mA |
| Packing format | Single pack |
| Parts included | HMI with EN,JA,ZH,RU Language |
| Power consumption [W] | 0.7 W |
| Product accessories | Liq. level switch accessories |
| Product description | Liquid Level Sensor |
| Product group | Sensors |
| Product Name Description | Liquid level sensor |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R507A |
| Serviceable | Liq. level switch spare parts |
| Supply voltage [V] DC [max] | 30 V |
| Supply voltage [V] DC [min] | 14 V |
| Temperature range [°C] [max] | 100 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 212 °F |
| Temperature range [°F] [min] | -76 °F |
| Type | AKS 4100 |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
