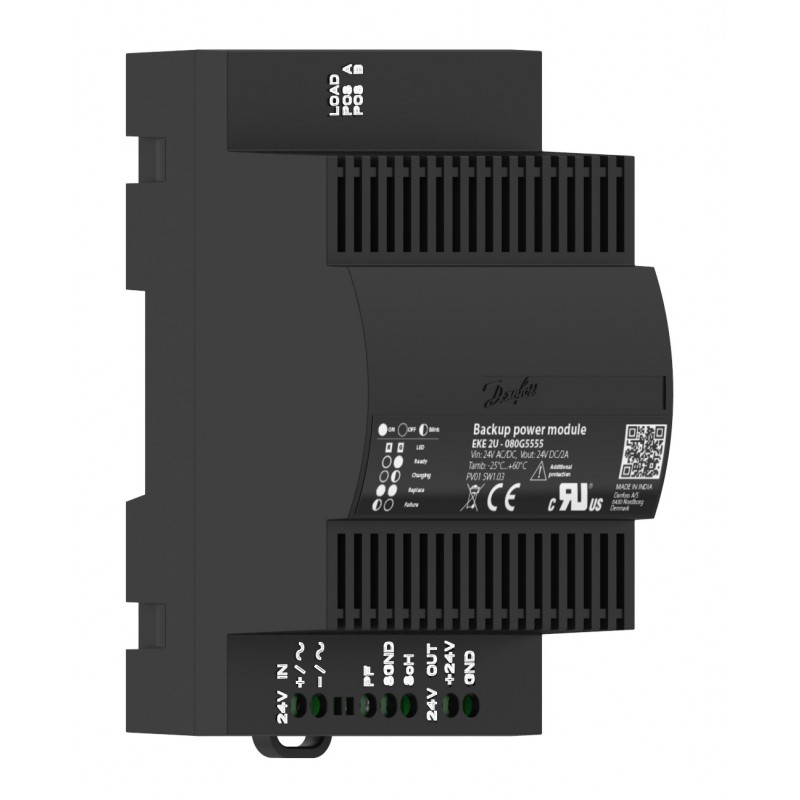

080G5555 DANFOSS REFRIGERATION Модуль резервного копирования EKE 2U
080G5555
DANFOSS REFRIGERATION
Модуль резервного копирования EKE 2U
Backup power module, EKE 2U
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Supply voltage [V] AC: 24, Supply voltage [V] DC: 24.00, Approval: CE; RoHS; UKCA; UL, Max. current output/phase [A]: 2, Used for product: EIM 365; EKD 316; EKD 316C; EKE 1A; EKE 1B; EKE 1C; EKE 1D; MCX061V; MCX152V, Packing format: Multi pack
Product details
| Gross weight | 0.3 kg |
| Net weight | 0.25 kg |
| EAN | 5714279874402 |
| Gross weight | 0.3 kg |
| Net weight | 0.25 kg |
| EAN | 5714279874402 |
| Ambient temperature range [°C] [Max] | 60 °C |
| Ambient temperature range [°C] [Min] | -25 °C |
| Analog inputs (AI) [pc] | 0 pc |
| Analog outputs (AO) [pc] | 0 pc |
| Approval | CE RoHS UL UKCA |
| Battery back-up [V] DC | 24 V |
| Communication type | Digital output |
| Digital inputs (DI) [pc] | 0 pc |
| Digital outputs (DO) [pc] | 1 pc |
| Display - option | None |
| Display on front | No |
| Enclosure rating note | IP40 for Housing |
| Frequency [Hz] | 50/60 Hz |
| Further information | Maximum nominal output current |
| Max. current output/phase [A] | 2 A |
| Mounting method | DIN rail |
| Number of pressure sensors | 0 |
| Number of Sensor inputs | 0 pc |
| Number of temperature sensors | 0 |
| Packing format | Multi pack |
| Power consumption [VA] | 15 VA |
| Product accessories | Electron. control accessories |
| Product features | Backup power for up to 2 EKE 1 LEDs showing status: Charging LEDs showing status: Failed LEDs showing status: Ready LEDs showing status: Replace Shared power supply State of Health detection Status output signal: Charging Status output signal: Failed Status output signal: Ready Status output signal: Replace |
| Product group | Electronic controllers |
| Product Language | English |
| Product name | Backup power module |
| Quantity per packing format | 24 pc |
| Serviceable | No |
| Supply voltage [V] AC | 24 V |
| Supply voltage [V] DC | 24 V |
| Type | EKE 2U |
| Used for product | EIM 365 EKD 316 EKD 316C EKE 1A EKE 1B EKE 1C EKE 1D MCX061V MCX152V |
| Ambient temperature range [°C] [Max] | 60 °C |
| Ambient temperature range [°C] [Min] | -25 °C |
| Analog inputs (AI) [pc] | 0 pc |
| Analog outputs (AO) [pc] | 0 pc |
| Approval | CE RoHS UL UKCA |
| Battery back-up [V] DC | 24 V |
| Communication type | Digital output |
| Digital inputs (DI) [pc] | 0 pc |
| Digital outputs (DO) [pc] | 1 pc |
| Display - option | None |
| Display on front | No |
| Enclosure rating note | IP40 for Housing |
| Frequency [Hz] | 50/60 Hz |
| Further information | Maximum nominal output current |
| Max. current output/phase [A] | 2 A |
| Mounting method | DIN rail |
| Number of pressure sensors | 0 |
| Number of Sensor inputs | 0 pc |
| Number of temperature sensors | 0 |
| Packing format | Multi pack |
| Power consumption [VA] | 15 VA |
| Product accessories | Electron. control accessories |
| Product features | Backup power for up to 2 EKE 1 LEDs showing status: Charging LEDs showing status: Failed LEDs showing status: Ready LEDs showing status: Replace Shared power supply State of Health detection Status output signal: Charging Status output signal: Failed Status output signal: Ready Status output signal: Replace |
| Product group | Electronic controllers |
| Product Language | English |
| Product name | Backup power module |
| Quantity per packing format | 24 pc |
| Serviceable | No |
| Supply voltage [V] AC | 24 V |
| Supply voltage [V] DC | 24 V |
| Type | EKE 2U |
| Used for product | EIM 365 EKD 316 EKD 316C EKE 1A EKE 1B EKE 1C EKE 1D MCX061V MCX152V |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
