DANFOSS REFRIGERATION080G1002 DANFOSS REFRIGERATION EIM 336 Superheat controller M/40

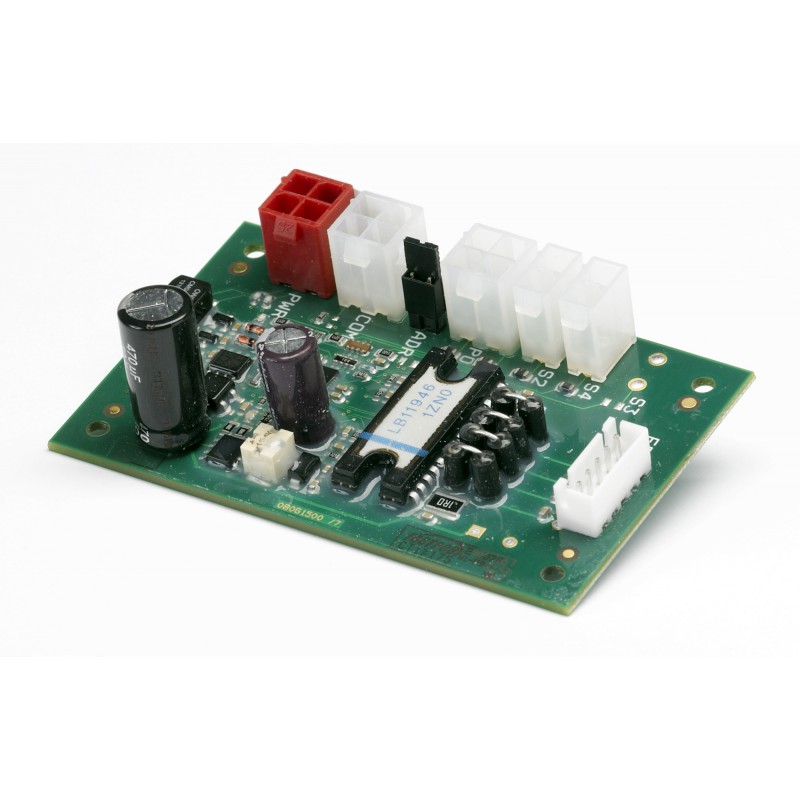

DANFOSS REFRIGERATION 080G1002 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

080G1002 DANFOSS REFRIGERATION EIM 336 Superheat controller M/40

Code: 080G1002

Manufacturer: DANFOSS REFRIGERATION

Description:

EIM 336 Superheat controller M/40
Superheat controller, EIM 336, Electron. control accessories

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 190,99 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Enclosure rating IP: IP00, Spec. Factory settings: YES

Product details

Gross weight0.05 Kilogram
Net weight0.037 Kilogram
Volume0.25 Liter
EAN5702428457637
TypeEIM 336
Product groupElectronic valve control
Product Name DescriptionSuperheat controller
Gross weight0.05 Kilogram
Net weight0.037 Kilogram
Volume0.25 Liter
EAN5702428457637
TypeEIM 336
Product groupElectronic valve control
Product Name DescriptionSuperheat controller

Ambient temperature range [°C] [max]60 °C
Ambient temperature range [°C] [min]-25 °C
Analog inputs (AI) [pc]3 pc
Analog outputs (AO) [pc]0 pc
ApprovalCE
EAC
LLC CDC EURO-TYSK
RoHS
CE evaluatedYes
China RoHS complianceYes
China RoHS exemption clauseNo
Communication typeModbus RS485 RTU
Contains batteriesNo
Digital inputs (DI) [pc]1 pc
Display - optionNone
Display on frontNo
Division01
EEE category5 small equipment (any external dimension < 50 cm)
Enclosure rating IPIP00
EU RoHS complianceYes
EU RoHS exemption clauseNo
Frequency [Hz]50/60 Hz
In scope of WEEEYes
Max. current output/phase [A]1 A
Mounting methodScrew mounting
Number of pressure sensors1
Number of temperature sensors2
Other RoHS documentationEAEU RoHS
Packing formatMulti pack
PFAS content [Yes/No]No
Pressure sensor supportRatiometric 0.5 - 4 V DC
Product accessoriesElectron. control accessories
Product featuresAlarm management
Superheat reference
Product LanguageEnglish
Quantity per packing format40 pc
REACH Candidate List substancesNo
ServiceableNo
Spec. Factory settingsYES
Supply voltage [V] AC24 V
Supply voltage [V] DC24 V
Temp. sensor configurationS2
Temp. sensor supportPt 1000
Valve output number1
Valve output typeETS 6
Ambient temperature range [°C] [max]60 °C
Ambient temperature range [°C] [min]-25 °C
Analog inputs (AI) [pc]3 pc
Analog outputs (AO) [pc]0 pc
ApprovalCE
EAC
LLC CDC EURO-TYSK
RoHS
CE evaluatedYes
China RoHS complianceYes
China RoHS exemption clauseNo
Communication typeModbus RS485 RTU
Contains batteriesNo
Digital inputs (DI) [pc]1 pc
Display - optionNone
Display on frontNo
Division01
EEE category5 small equipment (any external dimension < 50 cm)
Enclosure rating IPIP00
EU RoHS complianceYes
EU RoHS exemption clauseNo
Frequency [Hz]50/60 Hz
In scope of WEEEYes
Max. current output/phase [A]1 A
Mounting methodScrew mounting
Number of pressure sensors1
Number of temperature sensors2
Other RoHS documentationEAEU RoHS
Packing formatMulti pack
PFAS content [Yes/No]No
Pressure sensor supportRatiometric 0.5 - 4 V DC
Product accessoriesElectron. control accessories
Product featuresAlarm management
Superheat reference
Product LanguageEnglish
Quantity per packing format40 pc
REACH Candidate List substancesNo
ServiceableNo
Spec. Factory settingsYES
Supply voltage [V] AC24 V
Supply voltage [V] DC24 V
Temp. sensor configurationS2
Temp. sensor supportPt 1000
Valve output number1
Valve output typeETS 6

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN
11 Mbytes
