068Z3736 DANFOSS REFRIGERATION TE 2 Therm. exp. valve Flare/Flare
068Z3736
DANFOSS REFRIGERATION
TE 2 Therm. exp. valve Flare/Flare

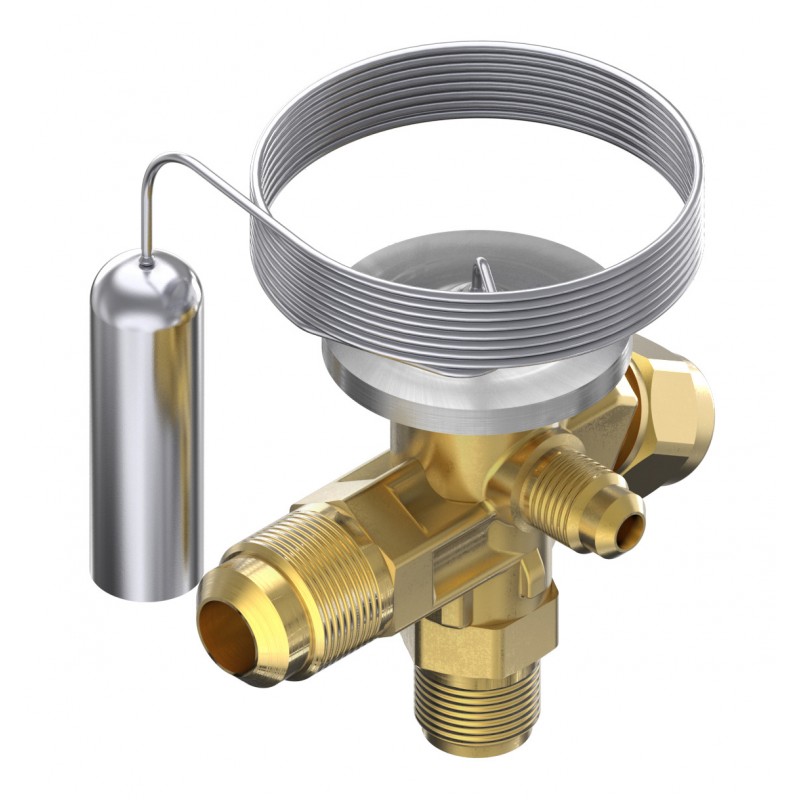

Thermostatic expansion valve, TE 2, R448A; R449A
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Temperature range [°C]: -60 - -25, MOP Point [°C]: -20, Pressure equalization: Externally equalized
Product details
| Gross weight | 0.32 kg |
| Net weight | 0.29 kg |
| EAN | 5702428988308 |
| Gross weight | 0.32 kg |
| Net weight | 0.29 kg |
| EAN | 5702428988308 |
| Approval | EAC LLC CDC TYSK |
| Body material | Brass |
| Capillary tube length [in] | 59 in |
| Capillary tube length [mm] | 1500 mm |
| Category | Art. 4, par. 3 |
| Connection material | Brass |
| Direction | Angleway |
| Equalization connection type | FLARE |
| Equalization size [in] | 1/4 IN |
| Flow direction | Single-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 2 |
| Inlet connection type | FLARE |
| Inlet size [in] | 3/8 in |
| Max. Working Pressure [bar] | 34 bar |
| Max. Working Pressure [psig] | 500 psig |
| MOP Point [psig] | MOP 35 |
| MOP Point [°C] | -20 °C |
| MOP Point [°F] | -5 °F |
| Outlet connection type | FLARE |
| Outlet size [in] | 1/2 in |
| Packing format | Multi pack |
| Parts included | Bulb strap |
| Parts Program name | T2/TE2 |
| Pressure equalization | Externally equalized |
| Product accessories | TXV accessories |
| Product family name | T2 |
| Product group | Expansion valves |
| Product name | Thermostatic expansion valve |
| Quantity per packing format | 20 pc |
| Refrigerants | R448A R449A |
| Serviceable | TXV spare parts |
| Static Superheat (SS) [°C] | 4 °C |
| Static Superheat (SS) [°F] | 7.2 °F |
| Superheat setting | Adjustable |
| Temperature range [°C] [Max] | -25 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | -15 °F |
| Temperature range [°F] [Min] | -75 °F |
| Type | TE 2 |
| Approval | EAC LLC CDC TYSK |
| Body material | Brass |
| Capillary tube length [in] | 59 in |
| Capillary tube length [mm] | 1500 mm |
| Category | Art. 4, par. 3 |
| Connection material | Brass |
| Direction | Angleway |
| Equalization connection type | FLARE |
| Equalization size [in] | 1/4 IN |
| Flow direction | Single-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 2 |
| Inlet connection type | FLARE |
| Inlet size [in] | 3/8 in |
| Max. Working Pressure [bar] | 34 bar |
| Max. Working Pressure [psig] | 500 psig |
| MOP Point [psig] | MOP 35 |
| MOP Point [°C] | -20 °C |
| MOP Point [°F] | -5 °F |
| Outlet connection type | FLARE |
| Outlet size [in] | 1/2 in |
| Packing format | Multi pack |
| Parts included | Bulb strap |
| Parts Program name | T2/TE2 |
| Pressure equalization | Externally equalized |
| Product accessories | TXV accessories |
| Product family name | T2 |
| Product group | Expansion valves |
| Product name | Thermostatic expansion valve |
| Quantity per packing format | 20 pc |
| Refrigerants | R448A R449A |
| Serviceable | TXV spare parts |
| Static Superheat (SS) [°C] | 4 °C |
| Static Superheat (SS) [°F] | 7.2 °F |
| Superheat setting | Adjustable |
| Temperature range [°C] [Max] | -25 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | -15 °F |
| Temperature range [°F] [Min] | -75 °F |
| Type | TE 2 |
Datasheet - PDF
