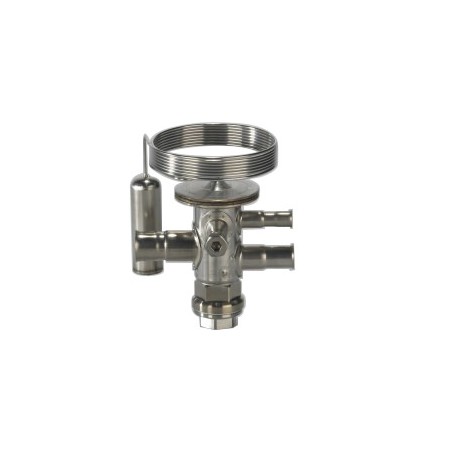

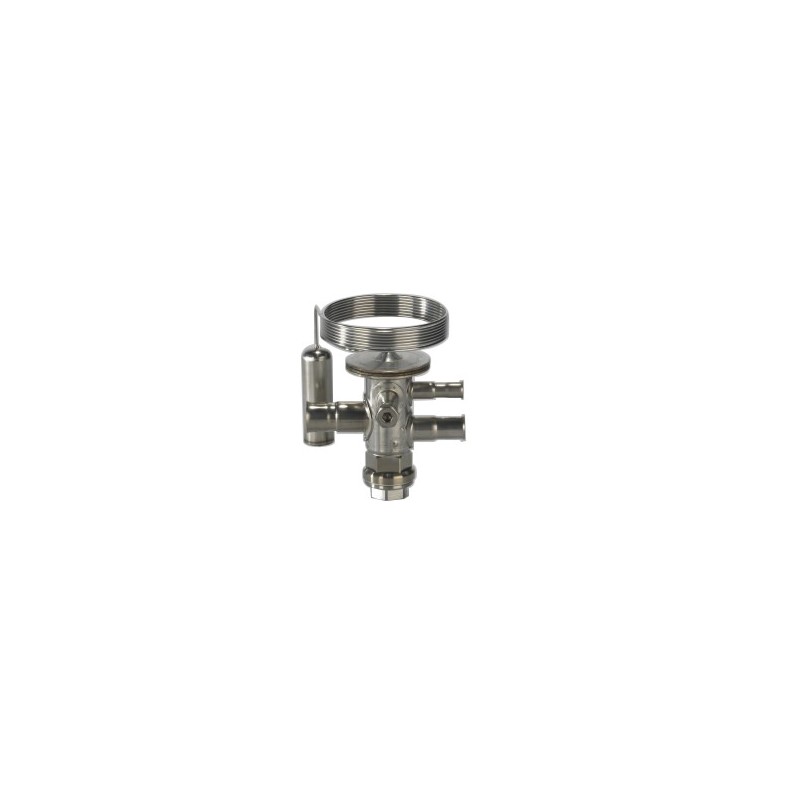

068U2299 DANFOSS REFRIGERATION TUAE/s Therm. exp. клапан
068U2299
DANFOSS REFRIGERATION
TUAE/s Therm. exp. клапан
Thermostatic expansion valve, TUAE, R404A/R507A
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Temperature range [°C]: -40 - -5, MOP Point [°C]: 0, Pressure equalization: Externally equalized
Product details
| Gross weight | 0.19 kg |
| Net weight | 0.15 kg |
| EAN | 5702422182184 |
| Gross weight | 0.19 kg |
| Net weight | 0.15 kg |
| EAN | 5702422182184 |
| Approval | EAC LLC CDC TYSK UL |
| Body material | Stainless steel |
| Capillary tube length [in] | 59 in |
| Capillary tube length [mm] | 1500 mm |
| Category | Art. 4, par. 3 |
| Connection material | Bi-metal: Steel/copper |
| Direction | Straightway |
| Equalization connection type | SOLDER, ODF |
| Equalization size [mm] | 6 mm |
| Flow direction | Single-flow |
| Flow direction indicator | Laser engraved 1-way arrow |
| Fluid Group | 2 |
| Inlet connection type | SOLDER, ODF |
| Inlet size [mm] | 10 mm |
| Max. Working Pressure [bar] | 34 bar |
| Max. Working Pressure [psig] | 500 psig |
| MOP Point [psig] | MOP 75 |
| MOP Point [°C] | 0 °C |
| MOP Point [°F] | 32 °F |
| Outlet connection type | SOLDER, ODF |
| Outlet size [mm] | 12 mm |
| Packing format | Multi pack |
| Parts included | Bulb strap |
| Parts Program name | TUA |
| Pressure equalization | Externally equalized |
| Product accessories | TXV accessories |
| Product family name | TU/TC |
| Product group | Expansion valves |
| Product name | Thermostatic expansion valve |
| Quantity per packing format | 24 pc |
| Rated cap. cond. Range N [IMP] | OS=7.2 ºF tcond=100 ºF tevap=40 ºF tliq=98 ºF |
| Rated cap. cond. Range N [SI] | OS=4K tcond=38 ºC tevap=4.4 ºC tliq=37 ºC |
| Refrigerants | R404A/R507A |
| Serviceable | TXV spare parts |
| Static Superheat (SS) [°C] | 4 °C |
| Static Superheat (SS) [°F] | 7.2 °F |
| Superheat setting | Adjustable |
| Temperature range [°C] [Max] | -5 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 25 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | TUAE |
| UL approved refrigerants | R404A R507A |
| Approval | EAC LLC CDC TYSK UL |
| Body material | Stainless steel |
| Capillary tube length [in] | 59 in |
| Capillary tube length [mm] | 1500 mm |
| Category | Art. 4, par. 3 |
| Connection material | Bi-metal: Steel/copper |
| Direction | Straightway |
| Equalization connection type | SOLDER, ODF |
| Equalization size [mm] | 6 mm |
| Flow direction | Single-flow |
| Flow direction indicator | Laser engraved 1-way arrow |
| Fluid Group | 2 |
| Inlet connection type | SOLDER, ODF |
| Inlet size [mm] | 10 mm |
| Max. Working Pressure [bar] | 34 bar |
| Max. Working Pressure [psig] | 500 psig |
| MOP Point [psig] | MOP 75 |
| MOP Point [°C] | 0 °C |
| MOP Point [°F] | 32 °F |
| Outlet connection type | SOLDER, ODF |
| Outlet size [mm] | 12 mm |
| Packing format | Multi pack |
| Parts included | Bulb strap |
| Parts Program name | TUA |
| Pressure equalization | Externally equalized |
| Product accessories | TXV accessories |
| Product family name | TU/TC |
| Product group | Expansion valves |
| Product name | Thermostatic expansion valve |
| Quantity per packing format | 24 pc |
| Rated cap. cond. Range N [IMP] | OS=7.2 ºF tcond=100 ºF tevap=40 ºF tliq=98 ºF |
| Rated cap. cond. Range N [SI] | OS=4K tcond=38 ºC tevap=4.4 ºC tliq=37 ºC |
| Refrigerants | R404A/R507A |
| Serviceable | TXV spare parts |
| Static Superheat (SS) [°C] | 4 °C |
| Static Superheat (SS) [°F] | 7.2 °F |
| Superheat setting | Adjustable |
| Temperature range [°C] [Max] | -5 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 25 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | TUAE |
| UL approved refrigerants | R404A R507A |
Datasheet - PDF
