Images are for illustrative purposes only. Please refer to data sheet for details.

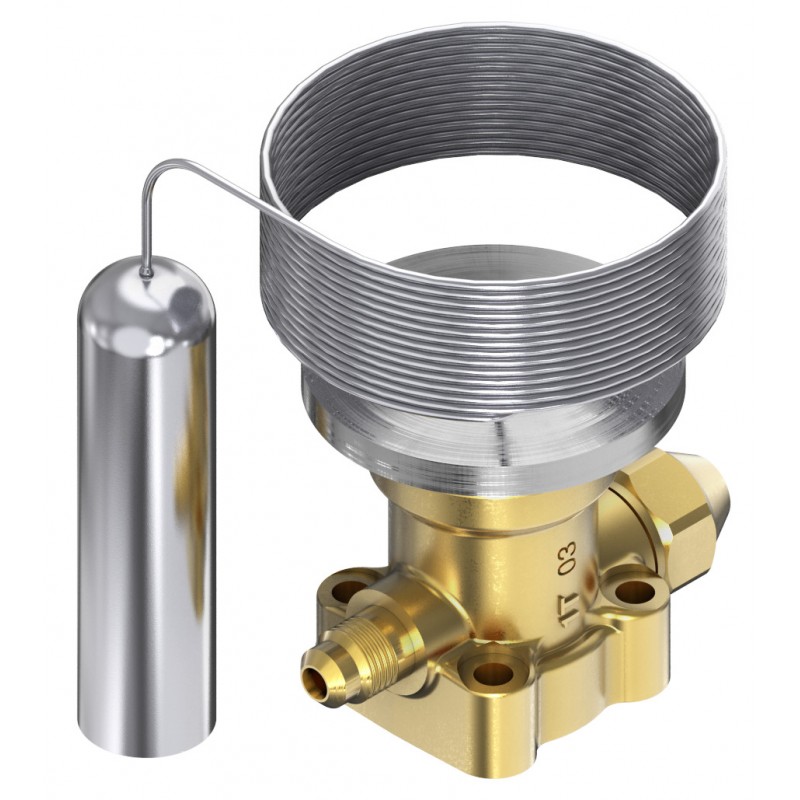

067B3303 DANFOSS REFRIGERATION PHTX Thermostatic element
Code: 067B3303
Manufacturer: DANFOSS REFRIGERATION
Description:
PHTX Thermostatic element
Element for expansion valve, PHT, Element
Categories:
- DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
- More Info
- Reviews
MORE INFO
Used for product: PHTX, Type designation: Element
Product details
| Gross weight | 0.584 Kilogram |
| Net weight | 0.46 Kilogram |
| Volume | 1.618 Liter |
| EAN | 5702428034562 |
| Type | PHT |
| Product group | Expansion valves |
| Product Name Description | Element for expansion valve |
| Gross weight | 0.584 Kilogram |
| Net weight | 0.46 Kilogram |
| Volume | 1.618 Liter |
| EAN | 5702428034562 |
| Type | PHT |
| Product group | Expansion valves |
| Product Name Description | Element for expansion valve |
| Approval | EAC LLC CDC TYSK |
| Body material | Brass |
| Capillary tube length [in] | 118 in |
| Capillary tube length [mm] | 3000 mm |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| Equalization connection type | Flare |
| Equalization size [in] | 1/4 in |
| EU RoHS compliance | Out of scope |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 400 psig |
| Packing format | Multi pack |
| Pressure equalization | Externally equalized |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R22/R407C |
| SCIP dossier no. | 0c9d94cf-8a6c-427f-aa07-f41f4af34854 |
| Temperature range [°C] [max] | 10 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 50 °F |
| Temperature range [°F] [min] | -40 °F |
| Type designation | Element |
| Used for product | PHTX |
| Approval | EAC LLC CDC TYSK |
| Body material | Brass |
| Capillary tube length [in] | 118 in |
| Capillary tube length [mm] | 3000 mm |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| Equalization connection type | Flare |
| Equalization size [in] | 1/4 in |
| EU RoHS compliance | Out of scope |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 400 psig |
| Packing format | Multi pack |
| Pressure equalization | Externally equalized |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R22/R407C |
| SCIP dossier no. | 0c9d94cf-8a6c-427f-aa07-f41f4af34854 |
| Temperature range [°C] [max] | 10 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 50 °F |
| Temperature range [°F] [min] | -40 °F |
| Type designation | Element |
| Used for product | PHTX |
