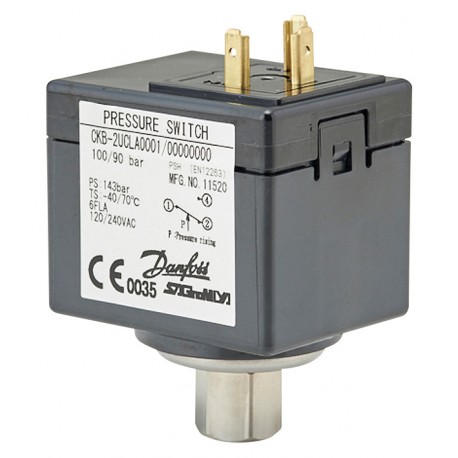

DANFOSS REFRIGERATION 061Z1016 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

061Z1016 DANFOSS REFRIGERATION CKB Presure Switch 2UCLA1016

Name: 061Z1016 DANFOSS REFRIGERATION CKB Presure Switch 2UCLA1016
Brand: DANFOSS REFRIGERATION
SKU: DAO061Z1016
Price: 175.97 USD
Availability: OutOfStock

Code: 061Z1016

Manufacturer: DANFOSS REFRIGERATION

Description:

CKB Presure Switch 2UCLA1016

Pressure switch, CKB

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
Reviews

Guarantee, repair and return.

Unit Price: 157,20 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Reset function: Auto, Pressure connection type: Flare, Pressure connection size: 1/4 in, Enclosure rating IP: IP65, Max. Working Pressure [bar]: 143

Product details

Gross weight	0.21 Kilogram
Net weight	0.18 Kilogram
Volume	0.52 Liter
EAN	5715162473979

Type	CKB
Product group	Switches and thermostats
Product Name Description	Pressure switch

Gross weight	0.21 Kilogram
Net weight	0.18 Kilogram
Volume	0.52 Liter
EAN	5715162473979
Type	CKB
Product group	Switches and thermostats
Product Name Description	Pressure switch

Ambient temperature range [°C] [max]	70 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	158 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	CE 0035 TÜV C UL US UL60730
CE mark	Yes
China RoHS compliance	Yes
China RoHS exemption clause	No
Contact function	SPDT
Contact rating	AC=6 A, 250 V
Contains batteries	No
Electrical conn. comments	DIN plug not included
Electrical connection	DIN Spade
Enclosure rating IP	IP65
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Higher activ. pressure [bar]	106 bar
Higher activ. pressure [psi]	1537 psi
Lower activ. pressure [bar]	96 bar
Lower activ. pressure [psi]	1392 psi

Max. Working Pressure [bar]	143 bar
Max. Working Pressure [psig]	2074 psig
Medium temperature range [°C] [max]	150 °C
Medium temperature range [°C] [min]	-40 °C
Medium temperature range [°F] [max]	302 °F
Medium temperature range [°F] [min]	-40 °F
Packing format	Multi pack
Pressure connection length[in]	0.55 in
Pressure connection length[mm]	14 mm
Pressure connection notes	Deflator
Pressure connection size	1/4 in
Pressure connection type	Flare
Pressure Male/Female	Female
Pressure range category	High pressure
Quantity per packing format	25 pc
REACH Candidate List substances	No
Refrigerants	R744
Reset function	Auto
Specification key	CKB-2UCLA1016

Ambient temperature range [°C] [max]	70 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	158 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	CE 0035 TÜV C UL US UL60730
CE mark	Yes
China RoHS compliance	Yes
China RoHS exemption clause	No
Contact function	SPDT
Contact rating	AC=6 A, 250 V
Contains batteries	No
Electrical conn. comments	DIN plug not included
Electrical connection	DIN Spade
Enclosure rating IP	IP65
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Higher activ. pressure [bar]	106 bar
Higher activ. pressure [psi]	1537 psi
Lower activ. pressure [bar]	96 bar
Lower activ. pressure [psi]	1392 psi
Max. Working Pressure [bar]	143 bar
Max. Working Pressure [psig]	2074 psig
Medium temperature range [°C] [max]	150 °C
Medium temperature range [°C] [min]	-40 °C
Medium temperature range [°F] [max]	302 °F
Medium temperature range [°F] [min]	-40 °F
Packing format	Multi pack
Pressure connection length[in]	0.55 in
Pressure connection length[mm]	14 mm
Pressure connection notes	Deflator
Pressure connection size	1/4 in
Pressure connection type	Flare
Pressure Male/Female	Female
Pressure range category	High pressure
Quantity per packing format	25 pc
REACH Candidate List substances	No
Refrigerants	R744
Reset function	Auto
Specification key	CKB-2UCLA1016

DATASHEET - PDF

Title

Size

Type

PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN

11 Mbytes
