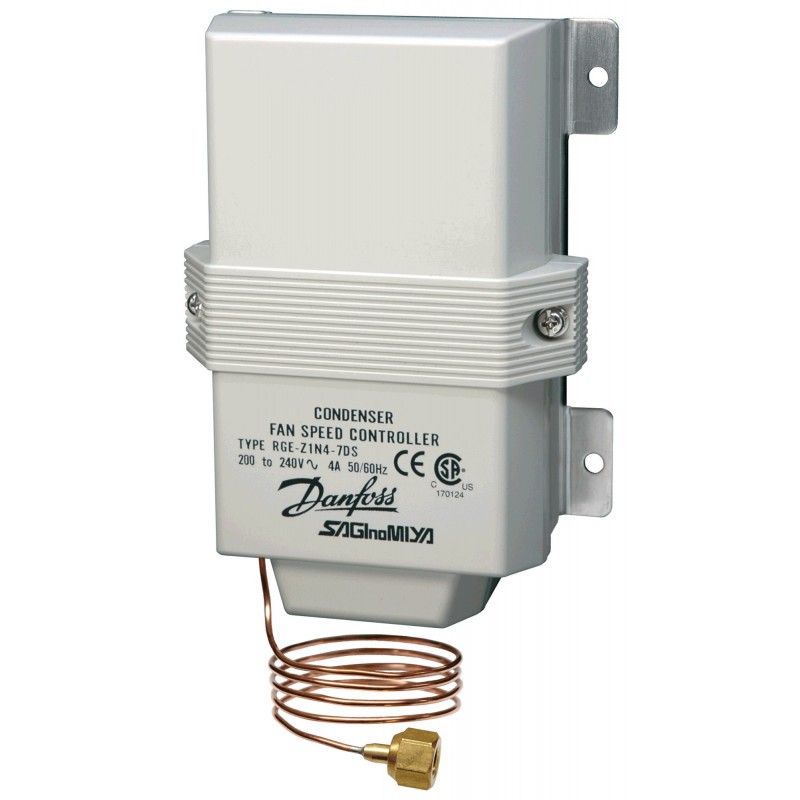

061H3013 DANFOSS REFRIGERATION RGE Контроллер скорости вентилятора No1N4-5H
061H3013
DANFOSS REFRIGERATION
RGE Контроллер скорости вентилятора No1N4-5H
Fan speed controller, RGE
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Factory setting [bar]: 19.00, Number of Phases: 1, P band max. [bar]: 4.0, Regulation range [bar] Pe [Max]: 28.00, Regulation range [bar] Pe [Min]: 8.00, Type designation: RGE-Z1N4-5H
Product details
| Gross weight | 0.5 kg |
| Net weight | 0.42 kg |
| EAN | 5702428275774 |
| Gross weight | 0.5 kg |
| Net weight | 0.42 kg |
| EAN | 5702428275774 |
| Ambient temperature range [°C] [Max] | 55 °C |
| Ambient temperature range [°C] [Min] | -20 °C |
| Ambient temperature range [°F] [Max] | 131 °F |
| Ambient temperature range [°F] [Min] | -4 °F |
| Approval | CE UKCA |
| Burst pressure [bar] | 131 bar |
| Burst pressure [psig] | 1900 psig |
| Capillary tube length [in] | 35.4 in |
| Capillary tube length [mm] | 900 mm |
| Enclosure rating IP | IP54 |
| Factory setting [bar] | 19 bar |
| Factory setting [psig] | 276 psig |
| Frequency [Hz] | 50/60 Hz |
| Housing | SKELETON |
| Max. current output/phase [A] | 2 A |
| Max. Working Pressure [bar] | 47 bar |
| Max. Working Pressure [psig] | 681 psig |
| Min speed setting [%] | 35%@60Hz 45%@50Hz |
| Number of Phases | 1 |
| Number of terminals [pcs] | 4 pc |
| P band max. [bar] | 4 bar |
| P band max. [psi] | 58 psi |
| Packing format | Industrial pack |
| Pressure connection notes | with Schrader |
| Pressure inlet conn. size [in] | 1/4 |
| Pressure inlet conn. std. | DIN 8906 |
| Pressure inlet conn. type | Flare |
| Pressure inlet Internal/Extern | Internal |
| Product accessories | No |
| Product group | Electronic controllers |
| Product name | Fan speed controller |
| Quantity per packing format | 24 pc |
| Refrigerants | R134a R22 R404A R407C R407H R449B R450A R513A |
| Regulation range [bar] Pe [Max] | 28 bar |
| Regulation range [bar] Pe [Min] | 8 bar |
| Regulation range [MPa] Pe [Max] | 2.8 MPa |
| Regulation range [MPa] Pe [Min] | 0.8 MPa |
| Regulation range [psig] Pe [Max] | 406 psig |
| Regulation range [psig] Pe [Min] | 116 psig |
| Serviceable | No |
| Supply voltage [V] AC [Max] | 240 V |
| Supply voltage [V] AC [Min] | 200 V |
| Type | RGE |
| Type designation | RGE-Z1N4-5H |
| Ambient temperature range [°C] [Max] | 55 °C |
| Ambient temperature range [°C] [Min] | -20 °C |
| Ambient temperature range [°F] [Max] | 131 °F |
| Ambient temperature range [°F] [Min] | -4 °F |
| Approval | CE UKCA |
| Burst pressure [bar] | 131 bar |
| Burst pressure [psig] | 1900 psig |
| Capillary tube length [in] | 35.4 in |
| Capillary tube length [mm] | 900 mm |
| Enclosure rating IP | IP54 |
| Factory setting [bar] | 19 bar |
| Factory setting [psig] | 276 psig |
| Frequency [Hz] | 50/60 Hz |
| Housing | SKELETON |
| Max. current output/phase [A] | 2 A |
| Max. Working Pressure [bar] | 47 bar |
| Max. Working Pressure [psig] | 681 psig |
| Min speed setting [%] | 35%@60Hz 45%@50Hz |
| Number of Phases | 1 |
| Number of terminals [pcs] | 4 pc |
| P band max. [bar] | 4 bar |
| P band max. [psi] | 58 psi |
| Packing format | Industrial pack |
| Pressure connection notes | with Schrader |
| Pressure inlet conn. size [in] | 1/4 |
| Pressure inlet conn. std. | DIN 8906 |
| Pressure inlet conn. type | Flare |
| Pressure inlet Internal/Extern | Internal |
| Product accessories | No |
| Product group | Electronic controllers |
| Product name | Fan speed controller |
| Quantity per packing format | 24 pc |
| Refrigerants | R134a R22 R404A R407C R407H R449B R450A R513A |
| Regulation range [bar] Pe [Max] | 28 bar |
| Regulation range [bar] Pe [Min] | 8 bar |
| Regulation range [MPa] Pe [Max] | 2.8 MPa |
| Regulation range [MPa] Pe [Min] | 0.8 MPa |
| Regulation range [psig] Pe [Max] | 406 psig |
| Regulation range [psig] Pe [Min] | 116 psig |
| Serviceable | No |
| Supply voltage [V] AC [Max] | 240 V |
| Supply voltage [V] AC [Min] | 200 V |
| Type | RGE |
| Type designation | RGE-Z1N4-5H |
Datasheet - PDF
