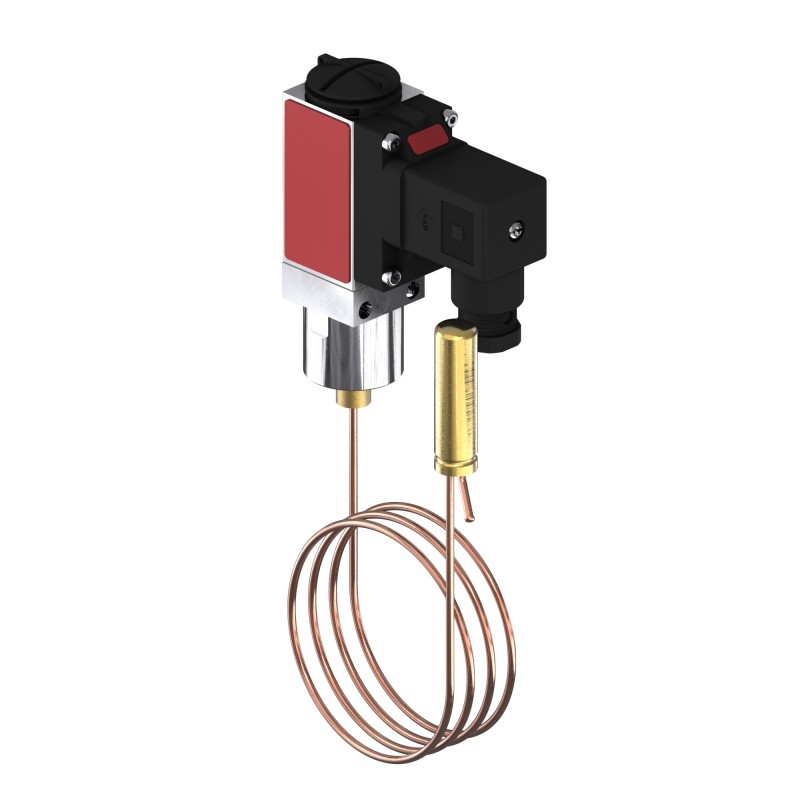

DANFOSS REFRIGERATION 061B820166 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

061B820166 DANFOSS REFRIGERATION MBC 8100 Thermostat M/6

Name: 061B820166 DANFOSS REFRIGERATION MBC 8100 Thermostat M/6
Brand: DANFOSS REFRIGERATION
SKU: DAO061B820166
Price: 302.00 USD
Availability: OutOfStock

Code: 061B820166

Manufacturer: DANFOSS REFRIGERATION

Description:

MBC 8100 Thermostat M/6

Thermostat, MBC 8100

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 257,96 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Temperature range [°C]: -10 - 30, Reset function: Auto, Contact function: SPDT, Sensor type: Remote bulb, Enclosure rating IP: IP65

Product details

Gross weight	0.619 Kilogram
Net weight	0.269 Kilogram
Volume	3.48 Liter
EAN	5702428366823

Type	MBC 8100
Product group	Switches and thermostats
Product Name Description	Thermostat

Gross weight	0.619 Kilogram
Net weight	0.269 Kilogram
Volume	3.48 Liter
EAN	5702428366823
Type	MBC 8100
Product group	Switches and thermostats
Product Name Description	Thermostat

Ambient temperature range [°C] [max]	70 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	158 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	ABS BV CCC CCS CE DNV EAC GL KRS LLC CDC EURO-TYSK LR LVD NKK RINA RMRS RoHS RoHS China TYSK
Cap. tube length fraction [in]	78 3/4 in
Capillary tube length [mm]	2000 mm
CE mark	Yes
Charge type	Adsorption
China RoHS compliance	Yes
Connection for pocket or hose	M 18 x 1.5
Contact function	SPDT
Contact rating	AC15=0.5 A, 250 V DC13=12 W, 125 V
Contains batteries	No
Differential (FS) [K]	3 K
Differential type	Fixed (max. value)
Electrical conn. Male/Female	Female
Electrical connection	DIN-plug
Electrical connection size	Pg 11
Electrical connection standard	EN 175301-803-A
Electrical spec. standard	EN 60947-5
Enclosure rating IP	IP65

EU RoHS compliance	Out of scope
Max. sensor temperature [°C]	80 °C
Max. sensor temperature [°F]	176 °F
Packing format	Multi pack
Product accessories	Switches accessories
Product description	Thermostat
Quantity per packing format	6 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Reset function	Auto
SCIP dossier no.	18ff26a2-cbcf-44c1-8f28-74e482b38eed
SCIP dossier product name	MBC 8100 8000 Temperature Switch
Sensor pocket length min. [in]	2 9/16 in
Sensor pocket length min. [mm]	65 mm
Sensor size (Ø x L) [in]	1/2 x 2 in
Sensor size (Ø x L) [mm]	13 x 50 mm
Sensor type	Remote bulb
Serviceable	No
Specification key	1221-1A02000
Temperature range [°C] [max]	30 °C
Temperature range [°C] [min]	-10 °C
Temperature range [°F] [max]	86 °F
Temperature range [°F] [min]	14 °F

Ambient temperature range [°C] [max]	70 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	158 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	ABS BV CCC CCS CE DNV EAC GL KRS LLC CDC EURO-TYSK LR LVD NKK RINA RMRS RoHS RoHS China TYSK
Cap. tube length fraction [in]	78 3/4 in
Capillary tube length [mm]	2000 mm
CE mark	Yes
Charge type	Adsorption
China RoHS compliance	Yes
Connection for pocket or hose	M 18 x 1.5
Contact function	SPDT
Contact rating	AC15=0.5 A, 250 V DC13=12 W, 125 V
Contains batteries	No
Differential (FS) [K]	3 K
Differential type	Fixed (max. value)
Electrical conn. Male/Female	Female
Electrical connection	DIN-plug
Electrical connection size	Pg 11
Electrical connection standard	EN 175301-803-A
Electrical spec. standard	EN 60947-5
Enclosure rating IP	IP65
EU RoHS compliance	Out of scope
Max. sensor temperature [°C]	80 °C
Max. sensor temperature [°F]	176 °F
Packing format	Multi pack
Product accessories	Switches accessories
Product description	Thermostat
Quantity per packing format	6 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Reset function	Auto
SCIP dossier no.	18ff26a2-cbcf-44c1-8f28-74e482b38eed
SCIP dossier product name	MBC 8100 8000 Temperature Switch
Sensor pocket length min. [in]	2 9/16 in
Sensor pocket length min. [mm]	65 mm
Sensor size (Ø x L) [in]	1/2 x 2 in
Sensor size (Ø x L) [mm]	13 x 50 mm
Sensor type	Remote bulb
Serviceable	No
Specification key	1221-1A02000
Temperature range [°C] [max]	30 °C
Temperature range [°C] [min]	-10 °C
Temperature range [°F] [max]	86 °F
Temperature range [°F] [min]	14 °F

DATASHEET - PDF

Title

Size

Type

061B820166 EN_061B811266.pdf

1 Mbytes

PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN

11 Mbytes
