Images are for illustrative purposes only. Please refer to data sheet for details.

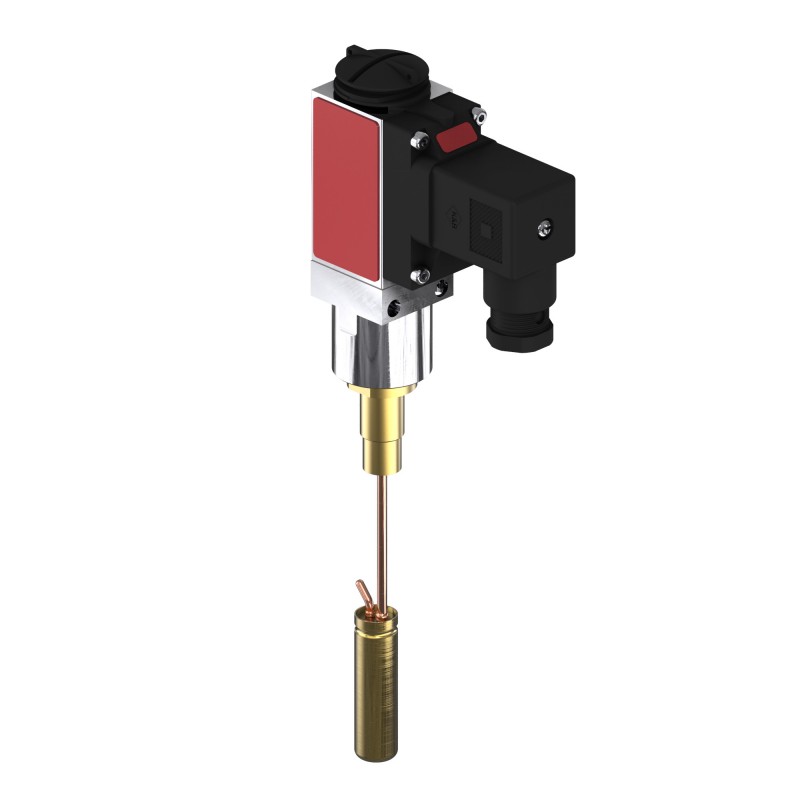

061B808966 DANFOSS REFRIGERATION MBC 8100 Thermostat M/6
Code: 061B808966
Manufacturer: DANFOSS REFRIGERATION
Description:
MBC 8100 Thermostat M/6
Thermostat, MBC 8100
Categories:
- DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
- More Info
- Reviews
LAST VIEWED
MORE INFO
Temperature range [°C]: 60 - 150, Reset function: Auto, Contact function: SPDT, Sensor type: Rigid sensor, Enclosure rating IP: IP65
Product details
| Gross weight | 0.664 Kilogram |
| Net weight | 0.224 Kilogram |
| Volume | 3.48 Liter |
| EAN | 5702428895200 |
| Type | MBC 8100 |
| Product group | Switches and thermostats |
| Product Name Description | Thermostat |
| Gross weight | 0.664 Kilogram |
| Net weight | 0.224 Kilogram |
| Volume | 3.48 Liter |
| EAN | 5702428895200 |
| Type | MBC 8100 |
| Product group | Switches and thermostats |
| Product Name Description | Thermostat |
| Alarm Signal | Rising |
| Ambient temperature range [°C] [max] | 70 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 158 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | ABS BV CCC CCS CE DNV EAC GL KRS LLC CDC EURO-TYSK LR LVD NKK RINA RMRS RoHS RoHS China TYSK |
| CE evaluated | Yes |
| Charge type | Adsorption |
| China RoHS compliance | Yes |
| Connection for pocket or hose | M 18 x 1.5 |
| Contact function | SPDT |
| Contact rating | AC15=0.5 A, 250 V DC13=12 W, 125 V |
| Contains batteries | No |
| Differential (FS) [K] | 6 K |
| Differential type | Fixed (max. value) |
| Electrical conn. Male/Female | Female |
| Electrical connection | DIN-plug |
| Electrical connection size | Pg 11 |
| Electrical connection standard | EN 175301-803-A |
| Electrical spec. standard | EN 60947-5 |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Out of scope |
| Factory setting (FS) [°C] | 105 °C |
| Max. sensor temperature [°C] | 250 °C |
| Max. sensor temperature [°F] | 482 °F |
| Packing format | Multi pack |
| Product accessories | Switches accessories |
| Product description | Thermostat |
| Quantity per packing format | 6 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Reset function | Auto |
| SCIP dossier no. | 18ff26a2-cbcf-44c1-8f28-74e482b38eed |
| SCIP dossier product name | MBC 8100 8000 Temperature Switch |
| Sensor pocket conn. length[mm] | 75 mm |
| Sensor pocket conn. size | 1/2 |
| Sensor pocket conn. type | G |
| Sensor pocket length min. [in] | 3 in |
| Sensor pocket length min. [mm] | 75 mm |
| Sensor pocket material | Brass |
| Sensor size (Ø x L) [in] | 1/2 x 2 in |
| Sensor size (Ø x L) [mm] | 13 x 50 mm |
| Sensor type | Rigid sensor |
| Serviceable | No |
| Specification key | 2611-1A00075 |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | 60 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | 140 °F |
| Alarm Signal | Rising |
| Ambient temperature range [°C] [max] | 70 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 158 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | ABS BV CCC CCS CE DNV EAC GL KRS LLC CDC EURO-TYSK LR LVD NKK RINA RMRS RoHS RoHS China TYSK |
| CE evaluated | Yes |
| Charge type | Adsorption |
| China RoHS compliance | Yes |
| Connection for pocket or hose | M 18 x 1.5 |
| Contact function | SPDT |
| Contact rating | AC15=0.5 A, 250 V DC13=12 W, 125 V |
| Contains batteries | No |
| Differential (FS) [K] | 6 K |
| Differential type | Fixed (max. value) |
| Electrical conn. Male/Female | Female |
| Electrical connection | DIN-plug |
| Electrical connection size | Pg 11 |
| Electrical connection standard | EN 175301-803-A |
| Electrical spec. standard | EN 60947-5 |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Out of scope |
| Factory setting (FS) [°C] | 105 °C |
| Max. sensor temperature [°C] | 250 °C |
| Max. sensor temperature [°F] | 482 °F |
| Packing format | Multi pack |
| Product accessories | Switches accessories |
| Product description | Thermostat |
| Quantity per packing format | 6 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Reset function | Auto |
| SCIP dossier no. | 18ff26a2-cbcf-44c1-8f28-74e482b38eed |
| SCIP dossier product name | MBC 8100 8000 Temperature Switch |
| Sensor pocket conn. length[mm] | 75 mm |
| Sensor pocket conn. size | 1/2 |
| Sensor pocket conn. type | G |
| Sensor pocket length min. [in] | 3 in |
| Sensor pocket length min. [mm] | 75 mm |
| Sensor pocket material | Brass |
| Sensor size (Ø x L) [in] | 1/2 x 2 in |
| Sensor size (Ø x L) [mm] | 13 x 50 mm |
| Sensor type | Rigid sensor |
| Serviceable | No |
| Specification key | 2611-1A00075 |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | 60 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | 140 °F |
