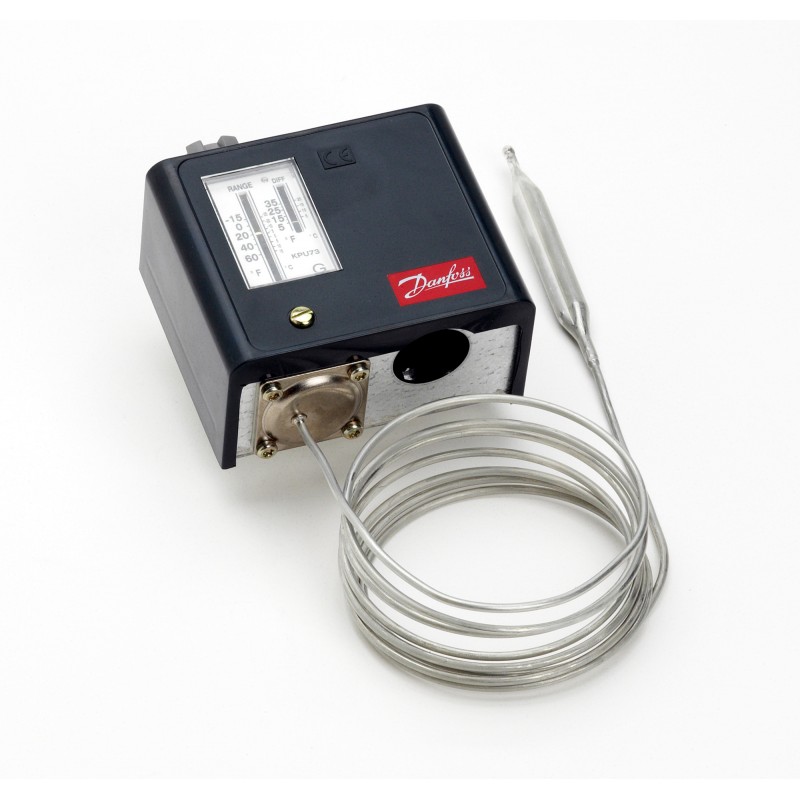

060L5212 DANFOSS REFRIGERATION KPU73 Thermostat M/16
Reference: 060L5212
Manufacturer: DANFOSS REFRIGERATION
Description:
KPU73 Thermostat M/16
Thermostat, KPU73
Categories:
- DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
LAST VIEWED
MORE INFO
Product name: Thermostat, Type: KPU73, Reset function: Auto, Contact function: SPDT, Sensor type: Double contact remote sensor, Temperature range [°C] [Min]: -26, Temperature range [°C] [Max]: 15
Product details
| Gross weight | 0.81 kg |
| Net weight | 0.74 kg |
| EAN | 5702428075664 |
| Gross weight | 0.81 kg |
| Net weight | 0.74 kg |
| EAN | 5702428075664 |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [Max] | 50 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 122 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | CE LVD RoHS c UL us UL873, CS C22.2 |
| Cap. tube length fraction [in] | 80 in |
| Capillary tube length [mm] | 2030 mm |
| Charge type | Adsorption |
| Contact function | SPDT |
| Contact rating | 120/240 V ac, 24 FLA, 144 LRA Pilot Duty: 120/240 V dc 12W |
| Diff. @ Max. range setting[°F] [Max] | 32 °F |
| Diff. @ Max. range setting[°F] [Min] | 5 °F |
| Diff. @ Min. range setting[°F] [Max] | 36 °F |
| Diff. @ Min. range setting[°F] [Min] | 6 °F |
| Differential type | Adjustable |
| Electrical conn. comments | for ½ in male pipe thread |
| Electrical connection | Hole |
| Electrical connection size | 7/8 in |
| Electrical spec. standard | EN 60947-4/-5 |
| EN 60947 electrical properties | Pollution degree: 3 Rated impulse voltage: 4 kV |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| Equipment | Sensors with double contact |
| Max. sensor temperature [°C] | 80 °C |
| Max. sensor temperature [°F] | 175 °F |
| Packing format | Multi pack |
| Parts included | Angle bracket Screws |
| Product accessories | Switches accessories |
| Product description | Temperature Control |
| Product family name | KPU |
| Product group | Switches and thermostats |
| Product name | Thermostat |
| Quantity per packing format | 14 pc |
| Reset function | Auto |
| Sensor size (Ø x L) [in] | 13/32 x 3 3/8 in |
| Sensor size (Ø x L) [mm] | 10 x 85 mm |
| Sensor type | Double contact remote sensor |
| Serviceable | No |
| Temperature range [°C] [Max] | 15 °C |
| Temperature range [°C] [Min] | -26 °C |
| Temperature range [°F] [Max] | 60 °F |
| Temperature range [°F] [Min] | -15 °F |
| Type | KPU73 |
| UL approval file name | E31024 |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [Max] | 50 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 122 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | CE LVD RoHS c UL us UL873, CS C22.2 |
| Cap. tube length fraction [in] | 80 in |
| Capillary tube length [mm] | 2030 mm |
| Charge type | Adsorption |
| Contact function | SPDT |
| Contact rating | 120/240 V ac, 24 FLA, 144 LRA Pilot Duty: 120/240 V dc 12W |
| Diff. @ Max. range setting[°F] [Max] | 32 °F |
| Diff. @ Max. range setting[°F] [Min] | 5 °F |
| Diff. @ Min. range setting[°F] [Max] | 36 °F |
| Diff. @ Min. range setting[°F] [Min] | 6 °F |
| Differential type | Adjustable |
| Electrical conn. comments | for ½ in male pipe thread |
| Electrical connection | Hole |
| Electrical connection size | 7/8 in |
| Electrical spec. standard | EN 60947-4/-5 |
| EN 60947 electrical properties | Pollution degree: 3 Rated impulse voltage: 4 kV |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| Equipment | Sensors with double contact |
| Max. sensor temperature [°C] | 80 °C |
| Max. sensor temperature [°F] | 175 °F |
| Packing format | Multi pack |
| Parts included | Angle bracket Screws |
| Product accessories | Switches accessories |
| Product description | Temperature Control |
| Product family name | KPU |
| Product group | Switches and thermostats |
| Product name | Thermostat |
| Quantity per packing format | 14 pc |
| Reset function | Auto |
| Sensor size (Ø x L) [in] | 13/32 x 3 3/8 in |
| Sensor size (Ø x L) [mm] | 10 x 85 mm |
| Sensor type | Double contact remote sensor |
| Serviceable | No |
| Temperature range [°C] [Max] | 15 °C |
| Temperature range [°C] [Min] | -26 °C |
| Temperature range [°F] [Max] | 60 °F |
| Temperature range [°F] [Min] | -15 °F |
| Type | KPU73 |
| UL approval file name | E31024 |
