DANFOSS REFRIGERATION060L5208 DANFOSS REFRIGERATION KPU73 Thermostat M/16

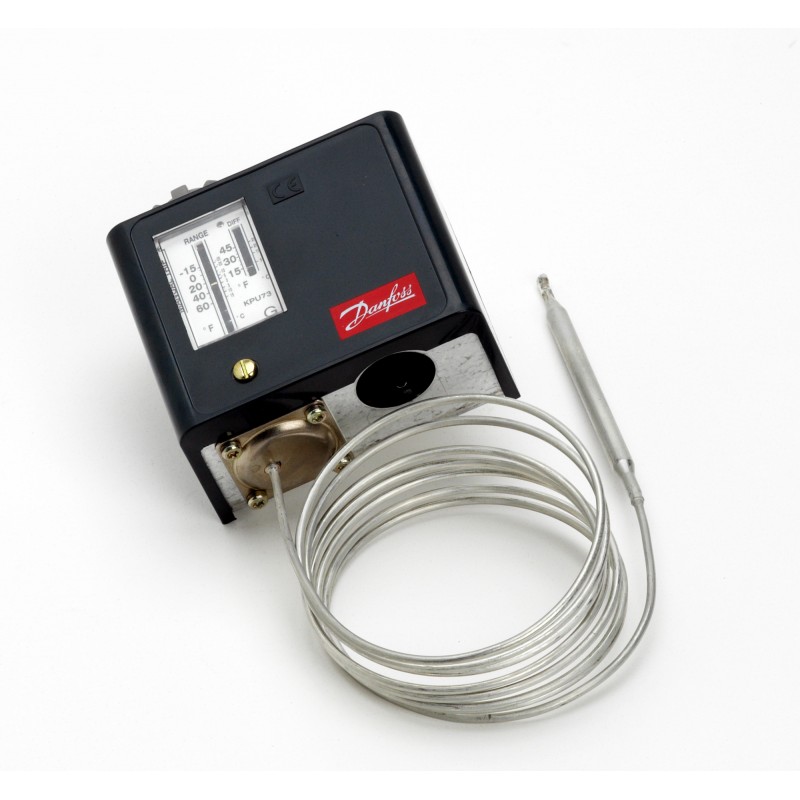

DANFOSS REFRIGERATION 060L5208 060L5208 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

060L5208 DANFOSS REFRIGERATION KPU73 Thermostat M/16

Reference: 060L5208

Manufacturer: DANFOSS REFRIGERATION

Description:

KPU73 Thermostat M/16
Thermostat, KPU73

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Thermostat, Product Type: KPU73, Reset function: Auto, Contact function: SPDT, Sensor type: Remote bulb, Temperature range [°C] [min]: -26, Temperature range [°C] [max]: 15

Product details

Gross weight0.785 Kilogram
Net weight0.746 Kilogram
Volume1.624 Liter
EAN5702428075626
TypeKPU73
Product groupSwitches and thermostats
Product Name DescriptionThermostat
Gross weight0.785 Kilogram
Net weight0.746 Kilogram
Volume1.624 Liter
EAN5702428075626
TypeKPU73
Product groupSwitches and thermostats
Product Name DescriptionThermostat

Amb. Temp. Note80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]50 °C
Ambient temperature range [°C] [min]-40 °C
Ambient temperature range [°F] [max]122 °F
Ambient temperature range [°F] [min]-40 °F
ApprovalCE
LVD
RoHS
c UL us UL873, CS C22.2
Cap. tube length fraction [in]80 in
Capillary tube length [mm]2030 mm
CE evaluatedYes
Charge typeAdsorption
China RoHS complianceOut of scope
Contact functionSPDT
Contact rating120/240 V AC, 24 FLA, 144 LRA
Pilot Duty: 120/240 V dc 12W
Contains batteriesNo
Diff. @ Max. range setting[°F] [max]50 °F
Diff. @ Max. range setting[°F] [min]5 °F
Diff. @ Min. range setting[°F] [max]32 °F
Diff. @ Min. range setting[°F] [min]6.5 °F
Differential typeAdjustable
Electrical conn. commentsfor ½ in male pipe thread
Electrical connectionHole
Electrical connection size7/8 in
Electrical spec. standardEN 60947-4/-5
EN 60947 electrical propertiesInsulation: 400V
Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 16A
EN 60947 wiring propertiesFlex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2
Enclosure rating IPIP30
Enclosure rating Nema (~)1
EU RoHS complianceYes
EU RoHS exemption clauseNo
Max. sensor temperature [°C]80 °C
Max. sensor temperature [°F]175 °F
Packing formatMulti pack
Parts includedAngle bracket
Screws
Product accessoriesSwitches accessories
Product descriptionTemperature Control
Quantity per packing format14 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Cadmium oxide (CAS no.1306-19-0)
Reset functionAuto
SCIP dossier no.c1a694ec-501f-43db-83d2-8a9a314459e0
SCIP dossier product nameKP KPS KPU Thermostat
Sensor size (Ø x L) [in]3/8 x 3 3/8 in
Sensor size (Ø x L) [mm]9.5 x 85 mm
Sensor typeRemote bulb
ServiceableNo
Temperature range [°C] [max]15 °C
Temperature range [°C] [min]-26 °C
Temperature range [°F] [max]60 °F
Temperature range [°F] [min]-15 °F
UL approval file nameE31024
UL markYes
Amb. Temp. Note80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]50 °C
Ambient temperature range [°C] [min]-40 °C
Ambient temperature range [°F] [max]122 °F
Ambient temperature range [°F] [min]-40 °F
ApprovalCE
LVD
RoHS
c UL us UL873, CS C22.2
Cap. tube length fraction [in]80 in
Capillary tube length [mm]2030 mm
CE evaluatedYes
Charge typeAdsorption
China RoHS complianceOut of scope
Contact functionSPDT
Contact rating120/240 V AC, 24 FLA, 144 LRA
Pilot Duty: 120/240 V dc 12W
Contains batteriesNo
Diff. @ Max. range setting[°F] [max]50 °F
Diff. @ Max. range setting[°F] [min]5 °F
Diff. @ Min. range setting[°F] [max]32 °F
Diff. @ Min. range setting[°F] [min]6.5 °F
Differential typeAdjustable
Electrical conn. commentsfor ½ in male pipe thread
Electrical connectionHole
Electrical connection size7/8 in
Electrical spec. standardEN 60947-4/-5
EN 60947 electrical propertiesInsulation: 400V
Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 16A
EN 60947 wiring propertiesFlex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2
Enclosure rating IPIP30
Enclosure rating Nema (~)1
EU RoHS complianceYes
EU RoHS exemption clauseNo
Max. sensor temperature [°C]80 °C
Max. sensor temperature [°F]175 °F
Packing formatMulti pack
Parts includedAngle bracket
Screws
Product accessoriesSwitches accessories
Product descriptionTemperature Control
Quantity per packing format14 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Cadmium oxide (CAS no.1306-19-0)
Reset functionAuto
SCIP dossier no.c1a694ec-501f-43db-83d2-8a9a314459e0
SCIP dossier product nameKP KPS KPU Thermostat
Sensor size (Ø x L) [in]3/8 x 3 3/8 in
Sensor size (Ø x L) [mm]9.5 x 85 mm
Sensor typeRemote bulb
ServiceableNo
Temperature range [°C] [max]15 °C
Temperature range [°C] [min]-26 °C
Temperature range [°F] [max]60 °F
Temperature range [°F] [min]-15 °F
UL approval file nameE31024
UL markYes
