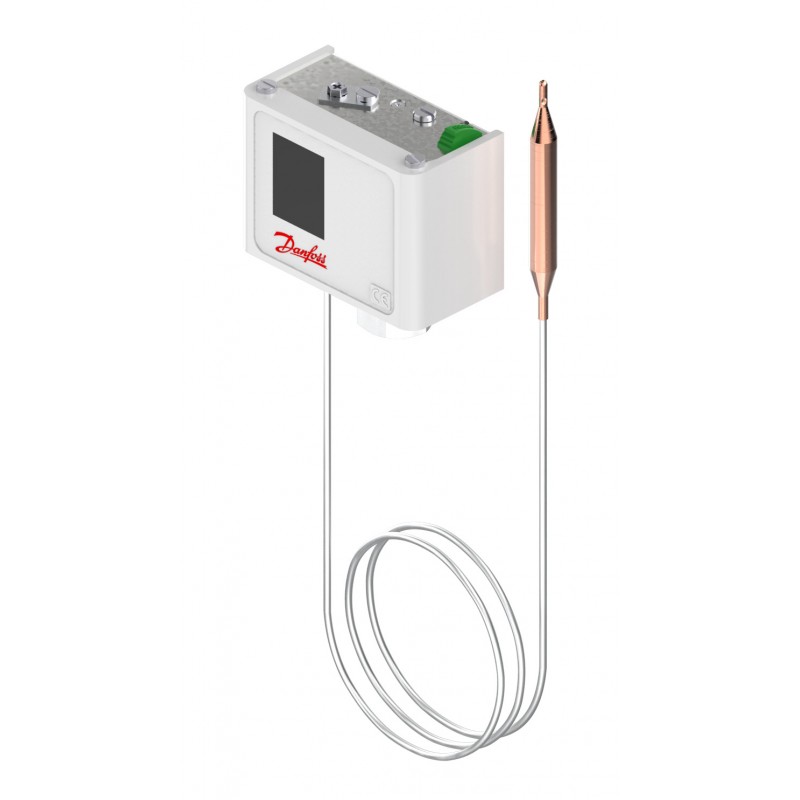

060L224166 DANFOSS REFRIGERATION KP81 Термостат M/32
060L224166
DANFOSS REFRIGERATION
KP81 Термостат M/32
Thermostat, KP81
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Temperature range [°C]: 80 - 116, Reset function: Manual Max, Contact function: SPDT, Sensor type: Remote bulb, Capillary tube length [mm]: 2030, Enclosure rating IP: IP30
Product details
| Gross weight | 0.46 kg |
| Net weight | 0.39 kg |
| EAN | 5702423229505 |
| Gross weight | 0.46 kg |
| Net weight | 0.39 kg |
| EAN | 5702423229505 |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [Max] | 65 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 150 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | BV CCC CE CMIM DNV EAC GL LLC CDC EURO-TYSK LVD PZH RINA RMRS RoHS China c UL us UL353, CS C22.2 c UL us UL873, CS C22.2 UKCA |
| Cap. tube length fraction [in] | 80 in |
| Capillary tube length [mm] | 2030 mm |
| Charge type | Adsorption |
| Contact function | SPDT |
| Contact rating | 16 A resistive, single phase 240 V ac, 8 FLA, 48 LRA 8 A resistive, single phase Pilot Duty: 120/240 V ac 3A Pilot Duty: 240V dc 12W(0.05A) |
| Diff. @ Max. range setting [K] | 9 K |
| Diff. @ Max. range setting[°C] | 9 °C |
| Diff. @ Max. range setting[°F] | 16 °F |
| Diff. @ Min. range setting [K] | 9 K |
| Diff. @ Min. range setting[°C] | 9 °C |
| Diff. @ Min. range setting[°F] | 16 °F |
| Differential type | Fixed |
| Electrical conn. Male/Female | Female |
| Electrical connection | Swivel cable connector |
| Electrical connection size | NPSM 1/2 - 14 |
| Electrical connection standard | ANSI/ASME B1.20.1 |
| Electrical spec. standard | EN 60947-4/-5 |
| EN 60947 electrical properties | Pollution degree: 3 Rated impulse voltage: 4 kV |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| Max. sensor temperature [°C] | 200 °C |
| Max. sensor temperature [°F] | 392 °F |
| Packing format | Multi pack |
| Parts included | Screws |
| Product accessories | Switches accessories |
| Product description | Thermostat |
| Product family name | KP |
| Product group | Switches and thermostats |
| Product name | Thermostat |
| Quantity per packing format | 32 pc |
| Reset function | Manual Max |
| Sensor size (Ø x L) [in] | 3/8 x 3 3/8 in |
| Sensor size (Ø x L) [mm] | 9.5 x 85 mm |
| Sensor type | Remote bulb |
| Serviceable | No |
| Temperature range [°C] [Max] | 116 °C |
| Temperature range [°C] [Min] | 80 °C |
| Temperature range [°F] [Max] | 240 °F |
| Temperature range [°F] [Min] | 175 °F |
| Type | KP81 |
| UL approval file name | E31024 MH27572 |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [Max] | 65 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 150 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | BV CCC CE CMIM DNV EAC GL LLC CDC EURO-TYSK LVD PZH RINA RMRS RoHS China c UL us UL353, CS C22.2 c UL us UL873, CS C22.2 UKCA |
| Cap. tube length fraction [in] | 80 in |
| Capillary tube length [mm] | 2030 mm |
| Charge type | Adsorption |
| Contact function | SPDT |
| Contact rating | 16 A resistive, single phase 240 V ac, 8 FLA, 48 LRA 8 A resistive, single phase Pilot Duty: 120/240 V ac 3A Pilot Duty: 240V dc 12W(0.05A) |
| Diff. @ Max. range setting [K] | 9 K |
| Diff. @ Max. range setting[°C] | 9 °C |
| Diff. @ Max. range setting[°F] | 16 °F |
| Diff. @ Min. range setting [K] | 9 K |
| Diff. @ Min. range setting[°C] | 9 °C |
| Diff. @ Min. range setting[°F] | 16 °F |
| Differential type | Fixed |
| Electrical conn. Male/Female | Female |
| Electrical connection | Swivel cable connector |
| Electrical connection size | NPSM 1/2 - 14 |
| Electrical connection standard | ANSI/ASME B1.20.1 |
| Electrical spec. standard | EN 60947-4/-5 |
| EN 60947 electrical properties | Pollution degree: 3 Rated impulse voltage: 4 kV |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| Max. sensor temperature [°C] | 200 °C |
| Max. sensor temperature [°F] | 392 °F |
| Packing format | Multi pack |
| Parts included | Screws |
| Product accessories | Switches accessories |
| Product description | Thermostat |
| Product family name | KP |
| Product group | Switches and thermostats |
| Product name | Thermostat |
| Quantity per packing format | 32 pc |
| Reset function | Manual Max |
| Sensor size (Ø x L) [in] | 3/8 x 3 3/8 in |
| Sensor size (Ø x L) [mm] | 9.5 x 85 mm |
| Sensor type | Remote bulb |
| Serviceable | No |
| Temperature range [°C] [Max] | 116 °C |
| Temperature range [°C] [Min] | 80 °C |
| Temperature range [°F] [Max] | 240 °F |
| Temperature range [°F] [Min] | 175 °F |
| Type | KP81 |
| UL approval file name | E31024 MH27572 |
Datasheet - PDF
