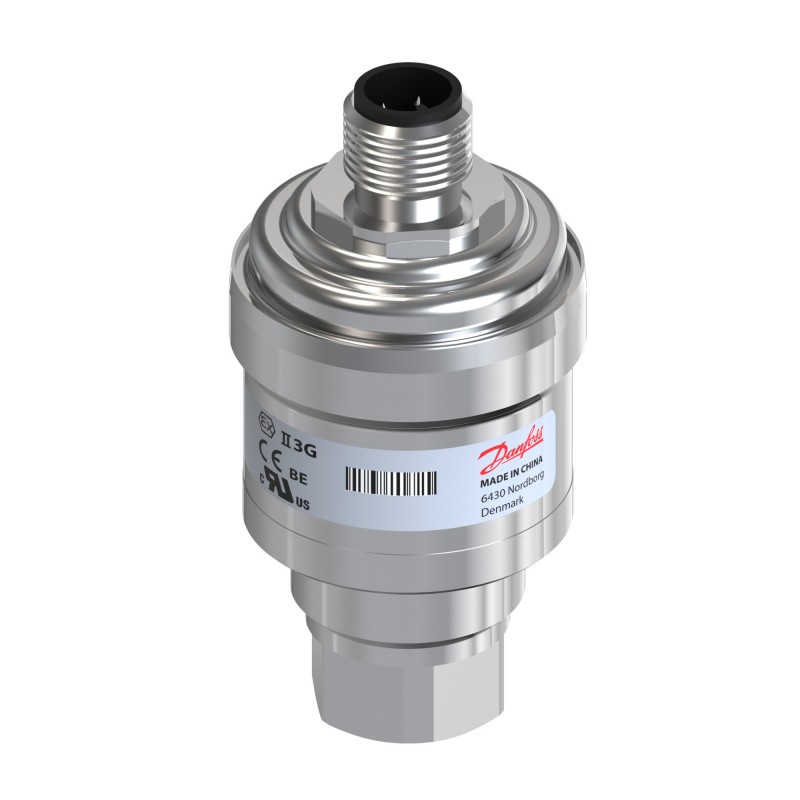

060G6798 DANFOSS REFRIGERATION Датчик AKS 3000-2031-E3BF08-0
060G6798
DANFOSS REFRIGERATION
Датчик AKS 3000-2031-E3BF08-0
Pressure transmitter, AKS 3000, 0.00 bar - 10.00 bar, 0.00 psi - 145.03 psi
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Pressure reference: Sealed gauge, Output signal: Current, Electrical connection: M12 x 1, Pressure connection type: UNF, Pressure connection size: 7/16-20, Specification key: AKS 3000-2031-E3BF08-0
Product details
| Gross weight | 0.12 kg |
| Net weight | 0.11 kg |
| EAN | 5702428657389 |
| Gross weight | 0.12 kg |
| Net weight | 0.11 kg |
| EAN | 5702428657389 |
| + supply | Pin 1 |
| - supply | Pin 3 |
| Accuracy, max. [±FS%] | 2 % |
| Accuracy, typical [±FS%] | 1 % |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [Max] | 85 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 185 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | GOST POCC cUR |
| Approval standard | 6967179 E227388 E31024 |
| Compensated temp. range [°C] [Max] | 40 °C |
| Compensated temp. range [°C] [Min] | -30 °C |
| Compensated temp. range [°F] [Max] | 104 °F |
| Compensated temp. range [°F] [Min] | -22 °F |
| Electrical conn. Male/Female | Male |
| Electrical connection | M12 x 1 |
| Electrical connection size | 4 pin |
| Electrical connection standard | EN 60947-5-2 |
| Enclosure rating IP | IP67 |
| Flush diaphragm | No |
| High Clipping Level | 22.4 |
| International Article Number | 5702428657389 |
| Intrinsically safe | No |
| Low Clipping Level | 3.6 |
| Medium temperature range [°C] [Max] | 85 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 185 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| Non-linearity BFSL [±FS%] | 0.5 % |
| Output signal | Current |
| Output signal [mA] [Max] | 20 mA |
| Output signal [mA] [Min] | 4 mA |
| Overload pressure max. [bar] | 33 bar |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 17 mm |
| Pressure connection notes | Flare 1/4 in w/ valvedepressor |
| Pressure connection size | 7/16-20 |
| Pressure connection type | UNF |
| Pressure Male/Female | Female |
| Pressure range [bar] [Max] | 10 bar |
| Pressure range [bar] [Min] | 0 bar |
| Pressure range [psi] [Max] | 145.03 psi |
| Pressure range [psi] [Min] | 0 psi |
| Pressure reference | Sealed gauge |
| Product group | Sensors |
| Product name | Pressure transmitter |
| Pulse-snubber | No |
| Quantity per packing format | 20 pc |
| Response time max. [ms] | 4 ms |
| Specification key | AKS 3000-2031-E3BF08-0 |
| Supply voltage [V] DC [Max] | 32 V |
| Supply voltage [V] DC [Min] | 9 V |
| Type | AKS 3000 |
| + supply | Pin 1 |
| - supply | Pin 3 |
| Accuracy, max. [±FS%] | 2 % |
| Accuracy, typical [±FS%] | 1 % |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [Max] | 85 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 185 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | GOST POCC cUR |
| Approval standard | 6967179 E227388 E31024 |
| Compensated temp. range [°C] [Max] | 40 °C |
| Compensated temp. range [°C] [Min] | -30 °C |
| Compensated temp. range [°F] [Max] | 104 °F |
| Compensated temp. range [°F] [Min] | -22 °F |
| Electrical conn. Male/Female | Male |
| Electrical connection | M12 x 1 |
| Electrical connection size | 4 pin |
| Electrical connection standard | EN 60947-5-2 |
| Enclosure rating IP | IP67 |
| Flush diaphragm | No |
| High Clipping Level | 22.4 |
| International Article Number | 5702428657389 |
| Intrinsically safe | No |
| Low Clipping Level | 3.6 |
| Medium temperature range [°C] [Max] | 85 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 185 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| Non-linearity BFSL [±FS%] | 0.5 % |
| Output signal | Current |
| Output signal [mA] [Max] | 20 mA |
| Output signal [mA] [Min] | 4 mA |
| Overload pressure max. [bar] | 33 bar |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 17 mm |
| Pressure connection notes | Flare 1/4 in w/ valvedepressor |
| Pressure connection size | 7/16-20 |
| Pressure connection type | UNF |
| Pressure Male/Female | Female |
| Pressure range [bar] [Max] | 10 bar |
| Pressure range [bar] [Min] | 0 bar |
| Pressure range [psi] [Max] | 145.03 psi |
| Pressure range [psi] [Min] | 0 psi |
| Pressure reference | Sealed gauge |
| Product group | Sensors |
| Product name | Pressure transmitter |
| Pulse-snubber | No |
| Quantity per packing format | 20 pc |
| Response time max. [ms] | 4 ms |
| Specification key | AKS 3000-2031-E3BF08-0 |
| Supply voltage [V] DC [Max] | 32 V |
| Supply voltage [V] DC [Min] | 9 V |
| Type | AKS 3000 |
Datasheet - PDF
