DANFOSS REFRIGERATION060G6492 DANFOSS REFRIGERATION Pressure transmitter

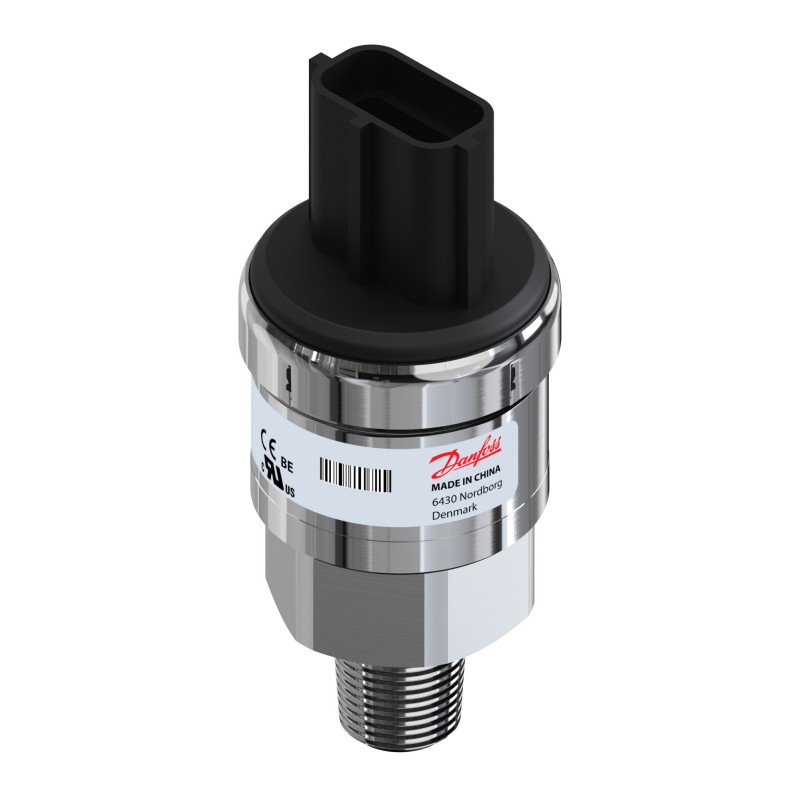

DANFOSS REFRIGERATION 060G6492 060G6492 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

060G6492 DANFOSS REFRIGERATION Pressure transmitter

Reference: 060G6492

Manufacturer: DANFOSS REFRIGERATION

Description:

Pressure transmitter
Sensor AKS 32R 1/4 NPTF, 0-400psi
Pressure transmitter, AKS 32R, 0 bar - 27.6 bar, 0 psi - 400 psi

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 153,25 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Pressure reference: Sealed gauge, Output signal: Ratio metric, Electrical connection: AMP Econoseal, J-series, Pressure connection type: NPTF, Pressure connection size: 1/4-18, Specification key: AKS 32R-CC36-G1AF08-0

Product details

Gross weight0.133 Kilogram
Net weight0.119 Kilogram
Volume0.251 Liter
EAN5702428940870
TypeAKS 32R
Product groupSensors
Product Name DescriptionPressure transmitter
Gross weight0.133 Kilogram
Net weight0.119 Kilogram
Volume0.251 Liter
EAN5702428940870
TypeAKS 32R
Product groupSensors
Product Name DescriptionPressure transmitter

+ outputPin 3
+ supplyPin 1
- commonPin 2
Adj. zero point and spanNo
Ambient temperature range [°C] [max]85 °C
Ambient temperature range [°C] [min]-40 °C
Ambient temperature range [°F] [max]185 °F
Ambient temperature range [°F] [min]-40 °F
ApprovalC UL US UL Recognized
CE
GOST POCC
Approval standard6967179
E227388
E31024
CE evaluatedYes
China RoHS complianceOut of scope
CommentsNOMAL LABEL 060A3328
Compensated temp. range [°C] [max]80 °C
Compensated temp. range [°C] [min]0 °C
Compensated temp. range [°F] [max]176 °F
Compensated temp. range [°F] [min]32 °F
Contains batteriesNo
EEE category5 small equipment (any external dimension < 50 cm)
Electrical conn. commentsIntegrated
Electrical conn. Male/FemaleMale
Electrical connectionAMP Econoseal, J-series
Electrical connection size3 pin
Enclosure rating IPIP67
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flush diaphragmNo
High Clipping Level98
In scope of WEEEYes
International Article Number5702428940870
Intrinsically safeNo
Low Clipping level4
Medium temperature range [°C] [max]85 °C
Medium temperature range [°C] [min]-40 °C
Medium temperature range [°F] [max]185 °F
Medium temperature range [°F] [min]-40 °F
Output signalRatio metric
Overload pressure max. [psi]400 psi
Packing formatMulti pack
Pressure connection size1/4-18
Pressure connection standardANSI/ASME B1.20.1
Pressure connection typeNPTF
Pressure Male/FemaleMale
Pressure range [bar] [max]27.6 bar
Pressure range [bar] [min]0 bar
Pressure range [psi] [max]400 psi
Pressure range [psi] [min]0 psi
Pressure referenceSealed gauge
Pulse-snubberNo
Quantity per packing format20 pc
Ratiometric [V] [max]4.5 V
Ratiometric [V] [min]0.5 V
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Response time max. [ms]4 ms
SCIP dossier no.16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
SCIP dossier product nameAKS/MBS
Specification keyAKS 32R-CC36-G1AF08-0
Supply voltage [V] DC5 V
UL evaluatedYes
+ outputPin 3
+ supplyPin 1
- commonPin 2
Adj. zero point and spanNo
Ambient temperature range [°C] [max]85 °C
Ambient temperature range [°C] [min]-40 °C
Ambient temperature range [°F] [max]185 °F
Ambient temperature range [°F] [min]-40 °F
ApprovalC UL US UL Recognized
CE
GOST POCC
Approval standard6967179
E227388
E31024
CE evaluatedYes
China RoHS complianceOut of scope
CommentsNOMAL LABEL 060A3328
Compensated temp. range [°C] [max]80 °C
Compensated temp. range [°C] [min]0 °C
Compensated temp. range [°F] [max]176 °F
Compensated temp. range [°F] [min]32 °F
Contains batteriesNo
EEE category5 small equipment (any external dimension < 50 cm)
Electrical conn. commentsIntegrated
Electrical conn. Male/FemaleMale
Electrical connectionAMP Econoseal, J-series
Electrical connection size3 pin
Enclosure rating IPIP67
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flush diaphragmNo
High Clipping Level98
In scope of WEEEYes
International Article Number5702428940870
Intrinsically safeNo
Low Clipping level4
Medium temperature range [°C] [max]85 °C
Medium temperature range [°C] [min]-40 °C
Medium temperature range [°F] [max]185 °F
Medium temperature range [°F] [min]-40 °F
Output signalRatio metric
Overload pressure max. [psi]400 psi
Packing formatMulti pack
Pressure connection size1/4-18
Pressure connection standardANSI/ASME B1.20.1
Pressure connection typeNPTF
Pressure Male/FemaleMale
Pressure range [bar] [max]27.6 bar
Pressure range [bar] [min]0 bar
Pressure range [psi] [max]400 psi
Pressure range [psi] [min]0 psi
Pressure referenceSealed gauge
Pulse-snubberNo
Quantity per packing format20 pc
Ratiometric [V] [max]4.5 V
Ratiometric [V] [min]0.5 V
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Response time max. [ms]4 ms
SCIP dossier no.16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
SCIP dossier product nameAKS/MBS
Specification keyAKS 32R-CC36-G1AF08-0
Supply voltage [V] DC5 V
UL evaluatedYes
