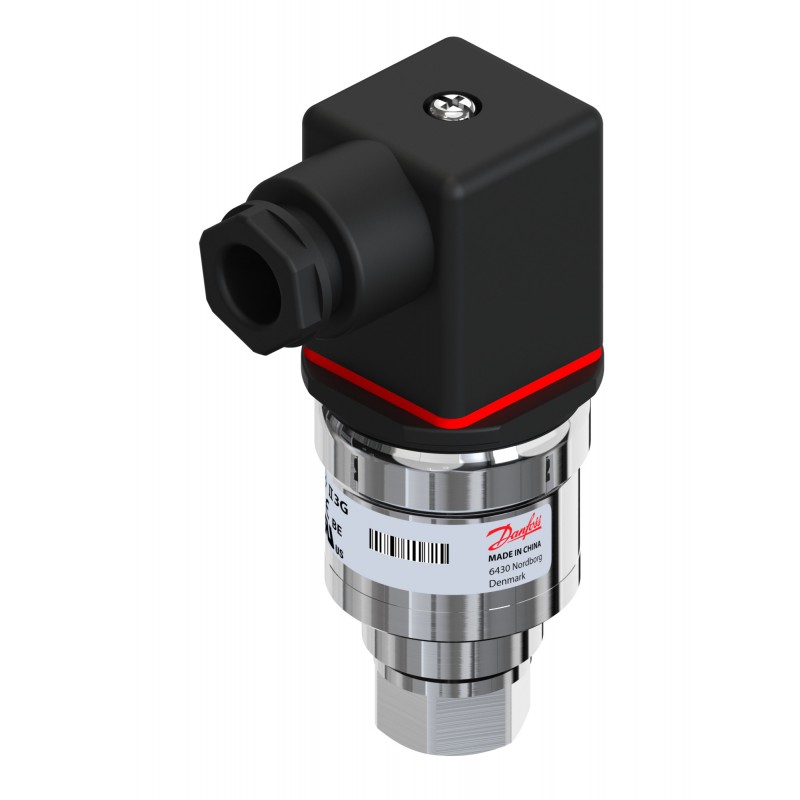

060G6458 DANFOSS REFRIGERATION Датчик AKS 3000
060G6458
DANFOSS REFRIGERATION
Датчик AKS 3000
Pressure transmitter, AKS 3000, 0.00 bar - 48.26 bar, 0.00 psi - 700.00 psi
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Pressure reference: Sealed gauge, Output signal: Voltage, Electrical connection: DIN-plug, Pressure connection type: UNF, Pressure connection size: 7/16-20, Specification key: AKS 3000-J235-A1BF08-0
Product details
| Gross weight | 0.17 kg |
| Net weight | 0.12 kg |
| EAN | 5702428930208 |
| Gross weight | 0.17 kg |
| Net weight | 0.12 kg |
| EAN | 5702428930208 |
| + output | Pin 3 |
| + supply | Pin 1 |
| - common | Pin 2 |
| Accuracy, max. [±FS%] | 2 % |
| Accuracy, typical [±FS%] | 1 % |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [Max] | 105 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 221 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | ATEX GOST POCC cUR |
| Approval comments | ATEX Ex nA IIA T3 Gc |
| Approval standard | 6967179 E227388 E31024 |
| Compensated temp. range [°C] [Max] | 100 °C |
| Compensated temp. range [°C] [Min] | 0 °C |
| Compensated temp. range [°F] [Max] | 212 °F |
| Compensated temp. range [°F] [Min] | 32 °F |
| Electrical conn. Male/Female | Male and Female |
| Electrical connection | DIN-plug |
| Electrical connection size | Pg 9 |
| Electrical connection standard | EN 175301-803-A |
| Enclosure rating IP | IP65 |
| Flush diaphragm | No |
| High Clipping Level | 11.5 |
| International Article Number | 5702428930208 |
| Intrinsically safe | No |
| Low Clipping Level | 0 |
| Medium temperature range [°C] [Max] | 125 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 257 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| Non-linearity BFSL [±FS%] | 0.5 % |
| Output signal | Voltage |
| Output signal [V] [Max] | 10 V |
| Output signal [V] [Min] | 0 V |
| Overload pressure max. [bar] | 289.5 bar |
| Overload pressure max. [psi] | 4200 psi |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 17 mm |
| Pressure connection notes | Flare 1/4” with valve depresso |
| Pressure connection size | 7/16-20 |
| Pressure connection type | UNF |
| Pressure Male/Female | Female |
| Pressure range [bar] [Max] | 48.26 bar |
| Pressure range [bar] [Min] | 0 bar |
| Pressure range [psi] [Max] | 700 psi |
| Pressure range [psi] [Min] | 0 psi |
| Pressure reference | Sealed gauge |
| Product family name | AKS |
| Product group | Sensors |
| Product name | Pressure transmitter |
| Pulse-snubber | No |
| Quantity per packing format | 14 pc |
| Response time max. [ms] | 4 ms |
| Specification key | AKS 3000-J235-A1BF08-0 |
| Supply voltage [V] DC [Max] | 32 V |
| Supply voltage [V] DC [Min] | 15 V |
| Type | AKS 3000 |
| + output | Pin 3 |
| + supply | Pin 1 |
| - common | Pin 2 |
| Accuracy, max. [±FS%] | 2 % |
| Accuracy, typical [±FS%] | 1 % |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [Max] | 105 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 221 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | ATEX GOST POCC cUR |
| Approval comments | ATEX Ex nA IIA T3 Gc |
| Approval standard | 6967179 E227388 E31024 |
| Compensated temp. range [°C] [Max] | 100 °C |
| Compensated temp. range [°C] [Min] | 0 °C |
| Compensated temp. range [°F] [Max] | 212 °F |
| Compensated temp. range [°F] [Min] | 32 °F |
| Electrical conn. Male/Female | Male and Female |
| Electrical connection | DIN-plug |
| Electrical connection size | Pg 9 |
| Electrical connection standard | EN 175301-803-A |
| Enclosure rating IP | IP65 |
| Flush diaphragm | No |
| High Clipping Level | 11.5 |
| International Article Number | 5702428930208 |
| Intrinsically safe | No |
| Low Clipping Level | 0 |
| Medium temperature range [°C] [Max] | 125 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 257 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| Non-linearity BFSL [±FS%] | 0.5 % |
| Output signal | Voltage |
| Output signal [V] [Max] | 10 V |
| Output signal [V] [Min] | 0 V |
| Overload pressure max. [bar] | 289.5 bar |
| Overload pressure max. [psi] | 4200 psi |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 17 mm |
| Pressure connection notes | Flare 1/4” with valve depresso |
| Pressure connection size | 7/16-20 |
| Pressure connection type | UNF |
| Pressure Male/Female | Female |
| Pressure range [bar] [Max] | 48.26 bar |
| Pressure range [bar] [Min] | 0 bar |
| Pressure range [psi] [Max] | 700 psi |
| Pressure range [psi] [Min] | 0 psi |
| Pressure reference | Sealed gauge |
| Product family name | AKS |
| Product group | Sensors |
| Product name | Pressure transmitter |
| Pulse-snubber | No |
| Quantity per packing format | 14 pc |
| Response time max. [ms] | 4 ms |
| Specification key | AKS 3000-J235-A1BF08-0 |
| Supply voltage [V] DC [Max] | 32 V |
| Supply voltage [V] DC [Min] | 15 V |
| Type | AKS 3000 |
Datasheet - PDF
