DANFOSS REFRIGERATION060G2155 DANFOSS REFRIGERATION Pressure transmitter

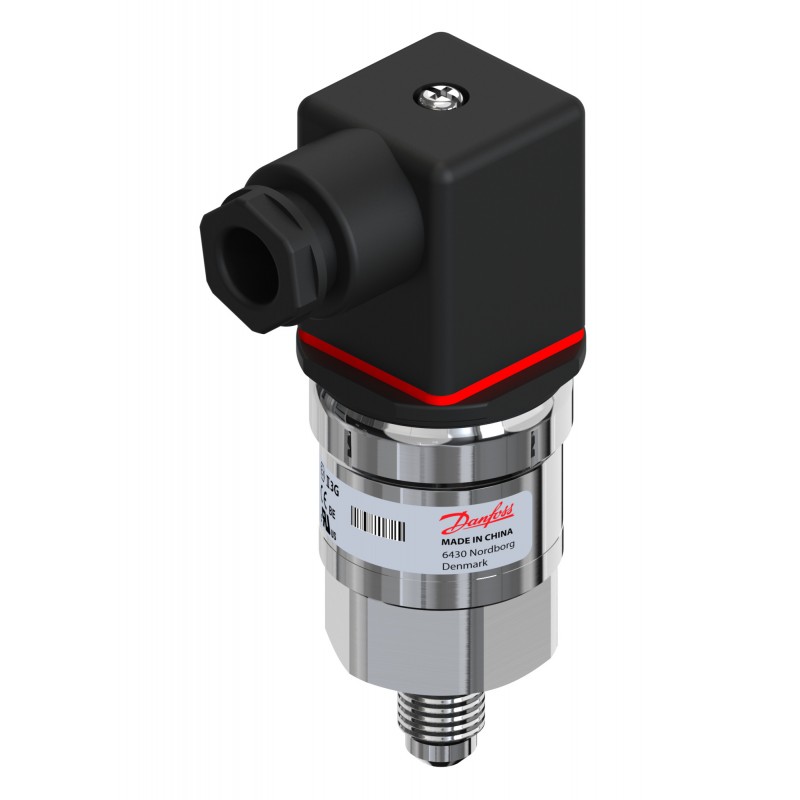

DANFOSS REFRIGERATION 060G2155 060G2155 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

060G2155 DANFOSS REFRIGERATION Pressure transmitter

Reference: 060G2155

Manufacturer: DANFOSS REFRIGERATION

Description:

Pressure transmitter
Sensor AKS 32 1/4 Flare, -1-50bar
Pressure transmitter, AKS 32, -1 bar - 50 bar, -14.5 psi - 725 psi

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 216,35 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Pressure reference: Sealed gauge, Output signal: Voltage, Electrical connection: Angular connector, Pressure connection type: UNF, Pressure connection size: 7/16-20, Specification key: AKS 32-DL33-A1BC08-0

Product details

Gross weight0.174 Kilogram
Net weight0.153 Kilogram
Volume0.408 Liter
EAN5702422162964
TypeAKS 32
Product groupSensors
Product Name DescriptionPressure transmitter
Gross weight0.174 Kilogram
Net weight0.153 Kilogram
Volume0.408 Liter
EAN5702422162964
TypeAKS 32
Product groupSensors
Product Name DescriptionPressure transmitter

+ outputPin 3
+ supplyPin 1
- commonPin 2
Accuracy, max. [±FS%]0.8 %
Accuracy, typical [±FS%]0.3 %
Adj. zero point and spanNo
Ambient temperature range [°C] [max]85 °C
Ambient temperature range [°C] [min]-40 °C
Ambient temperature range [°F] [max]185 °F
Ambient temperature range [°F] [min]-40 °F
Approval commentsATEX Ex ec IIA T4 Gc
Approval standard6967179
E227388
E31024
CE markYes
China RoHS complianceOut of scope
Compensated temp. range [°C] [max]80 °C
Compensated temp. range [°C] [min]0 °C
Compensated temp. range [°F] [max]176 °F
Compensated temp. range [°F] [min]32 °F
Contains batteriesNo
EEE category5 small equipment (any external dimension < 50 cm)
Electrical conn. Male/FemaleMale and Female
Electrical connectionAngular connector
Electrical connection sizePg 9
Electrical connection standardEN 175301-803-A
Enclosure rating IPIP65
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flush diaphragmNo
High Clipping Level5.6
In scope of WEEEYes
International Article Number5702422162964
Intrinsically safeNo
Low Clipping level0.1
Medium temperature range [°C] [max]85 °C
Medium temperature range [°C] [min]-40 °C
Medium temperature range [°F] [max]185 °F
Medium temperature range [°F] [min]-40 °F
Non-linearity BFSL [±FS%]0.2 %
Output signalVoltage
Output signal [V] [max]5 V
Output signal [V] [min]1 V
Overload pressure max. [bar]100 bar
Packing formatMulti pack
Pressure connection notesFlare 1/4 in
Pressure connection size7/16-20
Pressure connection standardASME B1.1
Pressure connection typeUNF
Pressure Male/FemaleMale
Pressure range [bar] [max]50 bar
Pressure range [bar] [min]-1 bar
Pressure range [psi] [max]725 psi
Pressure range [psi] [min]-14.5 psi
Pressure referenceSealed gauge
Pulse-snubberNo
Quantity per packing format14 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Response time max. [ms]4 ms
SCIP dossier no.16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
SCIP dossier product nameAKS/MBS
Specification keyAKS 32-DL33-A1BC08-0
Supply voltage [V] DC [max]32 V
Supply voltage [V] DC [min]9 V
UL markYes
+ outputPin 3
+ supplyPin 1
- commonPin 2
Accuracy, max. [±FS%]0.8 %
Accuracy, typical [±FS%]0.3 %
Adj. zero point and spanNo
Ambient temperature range [°C] [max]85 °C
Ambient temperature range [°C] [min]-40 °C
Ambient temperature range [°F] [max]185 °F
Ambient temperature range [°F] [min]-40 °F
Approval commentsATEX Ex ec IIA T4 Gc
Approval standard6967179
E227388
E31024
CE markYes
China RoHS complianceOut of scope
Compensated temp. range [°C] [max]80 °C
Compensated temp. range [°C] [min]0 °C
Compensated temp. range [°F] [max]176 °F
Compensated temp. range [°F] [min]32 °F
Contains batteriesNo
EEE category5 small equipment (any external dimension < 50 cm)
Electrical conn. Male/FemaleMale and Female
Electrical connectionAngular connector
Electrical connection sizePg 9
Electrical connection standardEN 175301-803-A
Enclosure rating IPIP65
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flush diaphragmNo
High Clipping Level5.6
In scope of WEEEYes
International Article Number5702422162964
Intrinsically safeNo
Low Clipping level0.1
Medium temperature range [°C] [max]85 °C
Medium temperature range [°C] [min]-40 °C
Medium temperature range [°F] [max]185 °F
Medium temperature range [°F] [min]-40 °F
Non-linearity BFSL [±FS%]0.2 %
Output signalVoltage
Output signal [V] [max]5 V
Output signal [V] [min]1 V
Overload pressure max. [bar]100 bar
Packing formatMulti pack
Pressure connection notesFlare 1/4 in
Pressure connection size7/16-20
Pressure connection standardASME B1.1
Pressure connection typeUNF
Pressure Male/FemaleMale
Pressure range [bar] [max]50 bar
Pressure range [bar] [min]-1 bar
Pressure range [psi] [max]725 psi
Pressure range [psi] [min]-14.5 psi
Pressure referenceSealed gauge
Pulse-snubberNo
Quantity per packing format14 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Response time max. [ms]4 ms
SCIP dossier no.16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
SCIP dossier product nameAKS/MBS
Specification keyAKS 32-DL33-A1BC08-0
Supply voltage [V] DC [max]32 V
Supply voltage [V] DC [min]9 V
UL markYes
