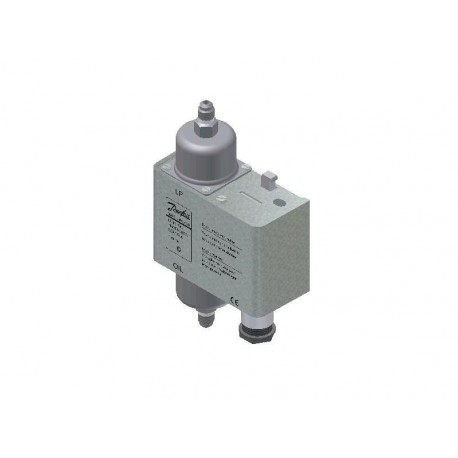

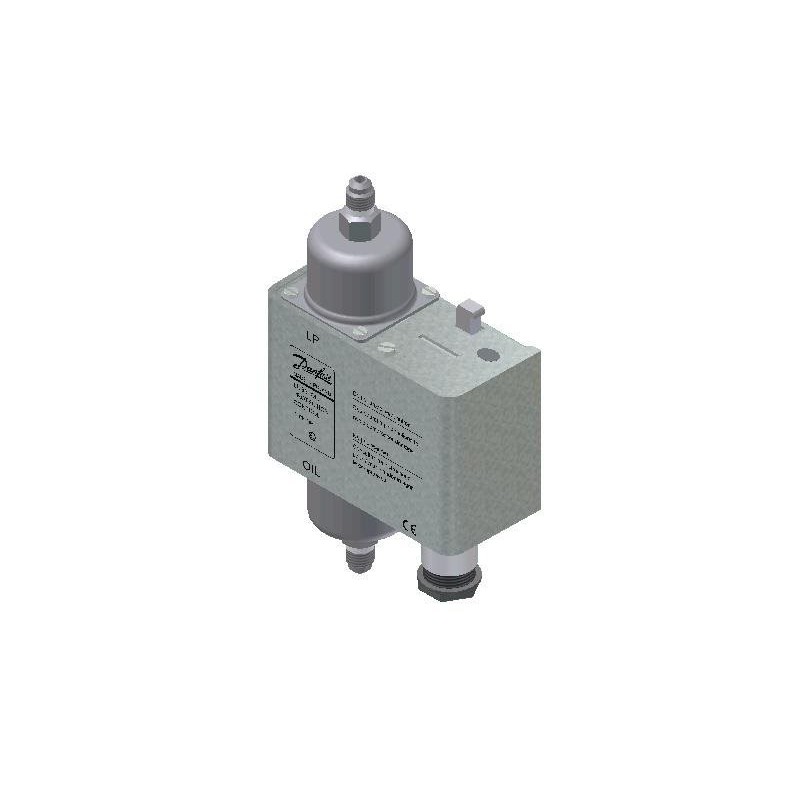

060B017391 DANFOSS REFRIGERATION MP55 Дифф. Переключатель давления M/21
060B017391
DANFOSS REFRIGERATION
MP55 Дифф. Переключатель давления M/21
Differential pressure switch, MP55
Home > DANFOSS REFRIGERATION
* Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Описание
▲Diff.press.setting range [bar]: 0.30 - 4.50, Reset function: Manual Min, Pressure connection type: Flare, Pressure connection size: 1/4 in, Enclosure rating IP: IP20, Max. Working Pressure [bar]: 17.0
Product details
| Gross weight | 0.78 kg |
| Net weight | 0.66 kg |
| EAN | 5702424499754 |
| Gross weight | 0.78 kg |
| Net weight | 0.66 kg |
| EAN | 5702424499754 |
| Adjustment | Cut out for falling pressure |
| Amb. Temp. Note | Bellows max 100 °C/212 °F |
| Ambient temperature range [°C] [Max] | 60 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 140 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | CCC CMIM EAC RINA RoHS China TYSK LLC CDC EURO-TYSK CE LVD |
| Contact differential [bar] | 0.2 bar |
| Contact function | SPDT |
| Contact rating | AC15=2 A, 250 V DC13=0.2 A, 250 V |
| Diff.press.setting range [bar] [Max] | 4.5 bar |
| Diff.press.setting range [bar] [Min] | 0.3 bar |
| Diff.press.setting range [MPa] [Max] | 0.45 MPa |
| Diff.press.setting range [MPa] [Min] | 0.03 MPa |
| Diff.press.setting range [psi] [Max] | 65 psi |
| Diff.press.setting range [psi] [Min] | 4.3 psi |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-5 |
| EN 60947 electrical properties | Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 2A |
| EN 60947 wiring properties | Flex, ferrules: 0.2-1.0 mm2 Flex, no ferrules: 0.2-1.5 mm2 Solid/stranded: 0.2-1.5 mm2 |
| Enclosure rating IP | IP20 |
| Equipment | Thermal time relay |
| Factory setting [bar] | 0.65 bar |
| Factory setting [psig] | 9 psig |
| Identical product | 060B101366 |
| Max. test pressure [bar] Pe | 22 bar |
| Max. test pressure [psig] | 319 psig |
| Max. Working Pressure [bar] | 17 bar |
| Max. Working Pressure [psig] | 245 psig |
| Operat. range LP side [bar] Pe [Max] | 12 bar |
| Operat. range LP side [bar] Pe [Min] | -1 bar |
| Operat. range LP side [psig]Pe [Max] | 175 psig |
| Operat. range LP side [psig]Pe [Min] | -15 psig |
| Packing format | Multi pack |
| Pressure connection size | 1/4 in |
| Pressure connection standard | DIN 8906 |
| Pressure connection type | Flare |
| Pressure Male/Female | Male |
| Product accessories | Generic accessories |
| Product description | Diff. Pressure Switch |
| Product family name | MP |
| Product group | Switches and thermostats |
| Product name | Differential pressure switch |
| Quantity per packing format | 21 pc |
| Refrigerants | R11 R113 R12 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507C R513A R515B |
| Relay release time [s] | 120 " |
| Reset function | Manual Min |
| Serviceable | No |
| Type | MP55 |
| UL approved refrigerants | R11 R113 R12 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507C R513A R515B |
| Adjustment | Cut out for falling pressure |
| Amb. Temp. Note | Bellows max 100 °C/212 °F |
| Ambient temperature range [°C] [Max] | 60 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 140 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | CCC CMIM EAC RINA RoHS China TYSK LLC CDC EURO-TYSK CE LVD |
| Contact differential [bar] | 0.2 bar |
| Contact function | SPDT |
| Contact rating | AC15=2 A, 250 V DC13=0.2 A, 250 V |
| Diff.press.setting range [bar] [Max] | 4.5 bar |
| Diff.press.setting range [bar] [Min] | 0.3 bar |
| Diff.press.setting range [MPa] [Max] | 0.45 MPa |
| Diff.press.setting range [MPa] [Min] | 0.03 MPa |
| Diff.press.setting range [psi] [Max] | 65 psi |
| Diff.press.setting range [psi] [Min] | 4.3 psi |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-5 |
| EN 60947 electrical properties | Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 2A |
| EN 60947 wiring properties | Flex, ferrules: 0.2-1.0 mm2 Flex, no ferrules: 0.2-1.5 mm2 Solid/stranded: 0.2-1.5 mm2 |
| Enclosure rating IP | IP20 |
| Equipment | Thermal time relay |
| Factory setting [bar] | 0.65 bar |
| Factory setting [psig] | 9 psig |
| Identical product | 060B101366 |
| Max. test pressure [bar] Pe | 22 bar |
| Max. test pressure [psig] | 319 psig |
| Max. Working Pressure [bar] | 17 bar |
| Max. Working Pressure [psig] | 245 psig |
| Operat. range LP side [bar] Pe [Max] | 12 bar |
| Operat. range LP side [bar] Pe [Min] | -1 bar |
| Operat. range LP side [psig]Pe [Max] | 175 psig |
| Operat. range LP side [psig]Pe [Min] | -15 psig |
| Packing format | Multi pack |
| Pressure connection size | 1/4 in |
| Pressure connection standard | DIN 8906 |
| Pressure connection type | Flare |
| Pressure Male/Female | Male |
| Product accessories | Generic accessories |
| Product description | Diff. Pressure Switch |
| Product family name | MP |
| Product group | Switches and thermostats |
| Product name | Differential pressure switch |
| Quantity per packing format | 21 pc |
| Refrigerants | R11 R113 R12 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507C R513A R515B |
| Relay release time [s] | 120 " |
| Reset function | Manual Min |
| Serviceable | No |
| Type | MP55 |
| UL approved refrigerants | R11 R113 R12 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507C R513A R515B |
