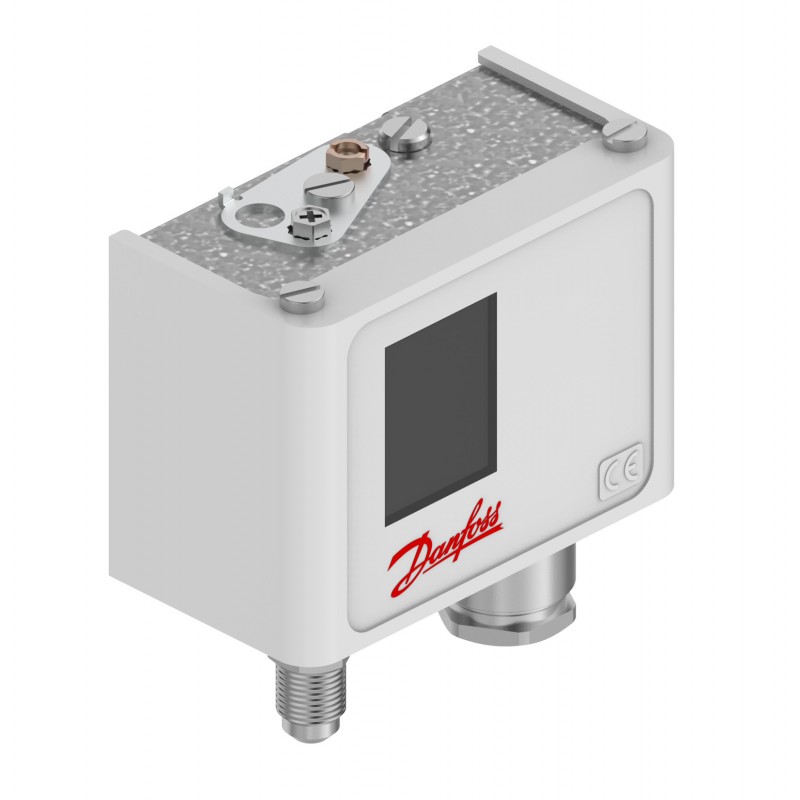

060-533666 DANFOSS REFRIGERATION KP1E Переключатель давления M/36 ATEX
060-533666
DANFOSS REFRIGERATION
KP1E Переключатель давления M/36 ATEX
Pressure switch, KP1E
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Regulation range [bar] Pe: -0.20 - 7.50, Differential [bar]: 0.70 - 4.00, Reset function: Auto, Pressure connection type: Flare, Pressure connection size: 1/4, Enclosure rating IP: IP44, Max. Working Pressure [bar]: 17.0
Product details
| Gross weight | 0.39 kg |
| Net weight | 0.37 kg |
| EAN | 5702424066888 |
| Gross weight | 0.39 kg |
| Net weight | 0.37 kg |
| EAN | 5702424066888 |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [Max] | 40 °C |
| Ambient temperature range [°C] [Min] | -20 °C |
| Ambient temperature range [°F] [Max] | 104 °F |
| Ambient temperature range [°F] [Min] | -4 °F |
| Approval | ATEX - Cat. 3 - Zone 2 CCC CE EAC LLC CDC EURO-TYSK LVD PED PZH RINA RMRS RoHS China UKCA |
| Approval file name | DEMKO 02 ATEX 132887X |
| ATEX Sales text | -20CII 3G Ex ic IIB T6 Gc |
| Category | IV |
| Contact function | SPDT gold |
| Contact rating | Ci max: 0,5 nF Ii max: 0,1 A Li max: 0,2 uH Pi max: 1 W Ui max. 30 V |
| Differential [bar] [Max] | 4 bar |
| Differential [bar] [Min] | 0.7 bar |
| Differential [psi] [Max] | 58 psi |
| Differential [psi] [Min] | 10 psi |
| Electrical conn. comments | Metal cable gland |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| EN 60947 electrical properties | Pollution degree: 3 Rated impulse voltage: 4 kV |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP44 |
| Enclosure rating Nema (~) | 2 |
| Equipment | Bellows stop |
| Fluid Group | 1 |
| Lubricants compatibility | Oilfree applications |
| Max. test pressure [bar] Pe | 20 bar |
| Max. test pressure [psig] | 138 psig |
| Max. Working Pressure [bar] | 17 bar |
| Max. Working Pressure [psig] | 246 psig |
| Oil free refrigerants | R1234ze(E) R516A |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 8906 |
| Pressure connection type | Flare |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 36 pc |
| Refrigerants | R1234yf R1234ze(E) R1270 R170 R290 R444B R454A R454C R455A R516A R600 R600a |
| Regulation range | 6 inHg - 108 psig |
| Regulation range [bar] Pe [Max] | 7.5 bar |
| Regulation range [bar] Pe [Min] | -0.2 bar |
| Reset function | Auto |
| Serviceable | No |
| Type | KP1E |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [Max] | 40 °C |
| Ambient temperature range [°C] [Min] | -20 °C |
| Ambient temperature range [°F] [Max] | 104 °F |
| Ambient temperature range [°F] [Min] | -4 °F |
| Approval | ATEX - Cat. 3 - Zone 2 CCC CE EAC LLC CDC EURO-TYSK LVD PED PZH RINA RMRS RoHS China UKCA |
| Approval file name | DEMKO 02 ATEX 132887X |
| ATEX Sales text | -20CII 3G Ex ic IIB T6 Gc |
| Category | IV |
| Contact function | SPDT gold |
| Contact rating | Ci max: 0,5 nF Ii max: 0,1 A Li max: 0,2 uH Pi max: 1 W Ui max. 30 V |
| Differential [bar] [Max] | 4 bar |
| Differential [bar] [Min] | 0.7 bar |
| Differential [psi] [Max] | 58 psi |
| Differential [psi] [Min] | 10 psi |
| Electrical conn. comments | Metal cable gland |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| EN 60947 electrical properties | Pollution degree: 3 Rated impulse voltage: 4 kV |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP44 |
| Enclosure rating Nema (~) | 2 |
| Equipment | Bellows stop |
| Fluid Group | 1 |
| Lubricants compatibility | Oilfree applications |
| Max. test pressure [bar] Pe | 20 bar |
| Max. test pressure [psig] | 138 psig |
| Max. Working Pressure [bar] | 17 bar |
| Max. Working Pressure [psig] | 246 psig |
| Oil free refrigerants | R1234ze(E) R516A |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 8906 |
| Pressure connection type | Flare |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 36 pc |
| Refrigerants | R1234yf R1234ze(E) R1270 R170 R290 R444B R454A R454C R455A R516A R600 R600a |
| Regulation range | 6 inHg - 108 psig |
| Regulation range [bar] Pe [Max] | 7.5 bar |
| Regulation range [bar] Pe [Min] | -0.2 bar |
| Reset function | Auto |
| Serviceable | No |
| Type | KP1E |
Datasheet - PDF
