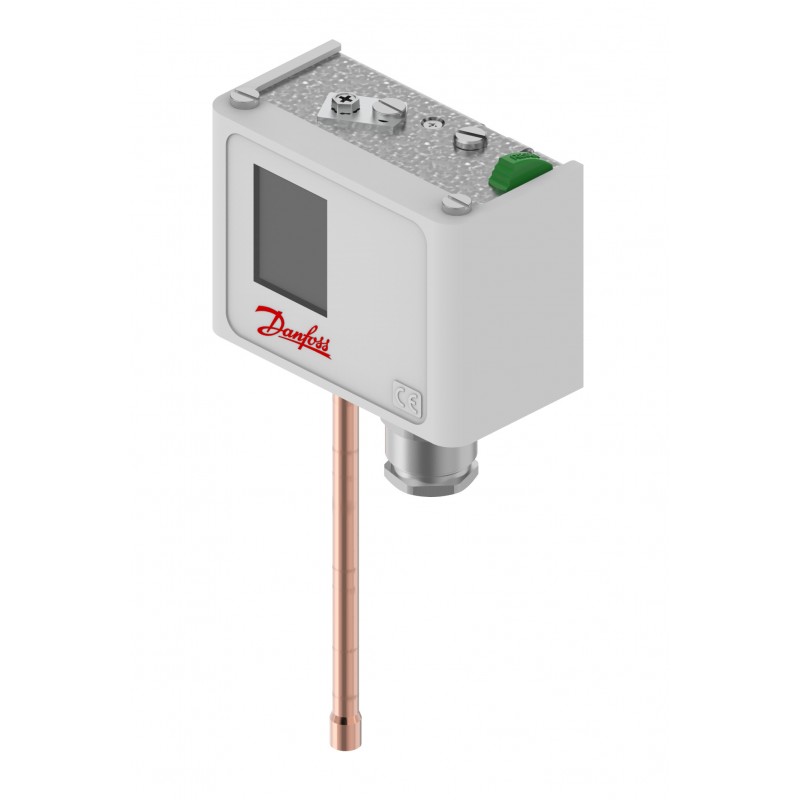

060-522566 DANFOSS REFRIGERATION KP6EB Переключатель давления M/32 ATEX
060-522566
DANFOSS REFRIGERATION
KP6EB Переключатель давления M/32 ATEX
Pressure switch, KP6EB
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Regulation range [bar] Pe: 8.00 - 42.00, Differential [bar]: 4.00, Reset function: Manual Max, Pressure connection type: Solder, ODF, Pressure connection size: 1/4, Enclosure rating IP: IP30, Max. Working Pressure [bar]: 46.5
Product details
| Gross weight | 0.41 kg |
| Net weight | 0.39 kg |
| EAN | 5702428659802 |
| Gross weight | 0.41 kg |
| Net weight | 0.39 kg |
| EAN | 5702428659802 |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [Max] | 60 °C |
| Ambient temperature range [°C] [Min] | -20 °C |
| Ambient temperature range [°F] [Max] | 140 °F |
| Ambient temperature range [°F] [Min] | -4 °F |
| Approval | ATEX - Cat. 3 - Zone 2 CCC CE EAC LLC CDC EURO-TYSK LVD PED PZH RINA RMRS RoHS China UKCA |
| Approval file name | DEMKO 02 ATEX 132887X |
| ATEX Sales text | -20CII 3G Ex ic IIB T6 Gc |
| Category | IV |
| Contact function | SPDT gold |
| Contact rating | Ci max: 0.5 nF Ii max: 0.1 A Li max: 0.2 μH Pi max: 1 W Ui max: 30 V |
| Differential [bar] | 4 bar |
| Differential [psi] | 58 psi |
| Electrical conn. comments | Metal cable gland |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| EN 60947 electrical properties | Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 10A |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| Fluid Group | 1 |
| Lubricants compatibility | Oilfree applications |
| Max. test pressure [bar] Pe | 46.5 bar |
| Max. test pressure [psig] | 675 psig |
| Max. Working Pressure [bar] | 46.5 bar |
| Max. Working Pressure [psig] | 675 psig |
| Oil free refrigerants | R1234ze(E) R516A |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | EN 1254-1 |
| Pressure connection type | Solder, ODF |
| Pressure Male/Female | Female |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 32 pc |
| Refrigerant oil compatibility | Oilfree applications R1234ze(E) R516A |
| Refrigerants | R1234yf R1234ze(E) R1270 R170 R290 R32 R444B R452B R454A R454B R454C R455A R516A R600 R600a |
| Regulation range [bar] Pe [Max] | 42 bar |
| Regulation range [bar] Pe [Min] | 8 bar |
| Regulation range [psig] Pe [Max] | 610 psig |
| Regulation range [psig] Pe [Min] | 116 psig |
| Reset function | Manual Max |
| Serviceable | No |
| Type | KP6EB |
| UL approved refrigerants | R516A |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [Max] | 60 °C |
| Ambient temperature range [°C] [Min] | -20 °C |
| Ambient temperature range [°F] [Max] | 140 °F |
| Ambient temperature range [°F] [Min] | -4 °F |
| Approval | ATEX - Cat. 3 - Zone 2 CCC CE EAC LLC CDC EURO-TYSK LVD PED PZH RINA RMRS RoHS China UKCA |
| Approval file name | DEMKO 02 ATEX 132887X |
| ATEX Sales text | -20CII 3G Ex ic IIB T6 Gc |
| Category | IV |
| Contact function | SPDT gold |
| Contact rating | Ci max: 0.5 nF Ii max: 0.1 A Li max: 0.2 μH Pi max: 1 W Ui max: 30 V |
| Differential [bar] | 4 bar |
| Differential [psi] | 58 psi |
| Electrical conn. comments | Metal cable gland |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| EN 60947 electrical properties | Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 10A |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| Fluid Group | 1 |
| Lubricants compatibility | Oilfree applications |
| Max. test pressure [bar] Pe | 46.5 bar |
| Max. test pressure [psig] | 675 psig |
| Max. Working Pressure [bar] | 46.5 bar |
| Max. Working Pressure [psig] | 675 psig |
| Oil free refrigerants | R1234ze(E) R516A |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | EN 1254-1 |
| Pressure connection type | Solder, ODF |
| Pressure Male/Female | Female |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 32 pc |
| Refrigerant oil compatibility | Oilfree applications R1234ze(E) R516A |
| Refrigerants | R1234yf R1234ze(E) R1270 R170 R290 R32 R444B R452B R454A R454B R454C R455A R516A R600 R600a |
| Regulation range [bar] Pe [Max] | 42 bar |
| Regulation range [bar] Pe [Min] | 8 bar |
| Regulation range [psig] Pe [Max] | 610 psig |
| Regulation range [psig] Pe [Min] | 116 psig |
| Reset function | Manual Max |
| Serviceable | No |
| Type | KP6EB |
| UL approved refrigerants | R516A |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
