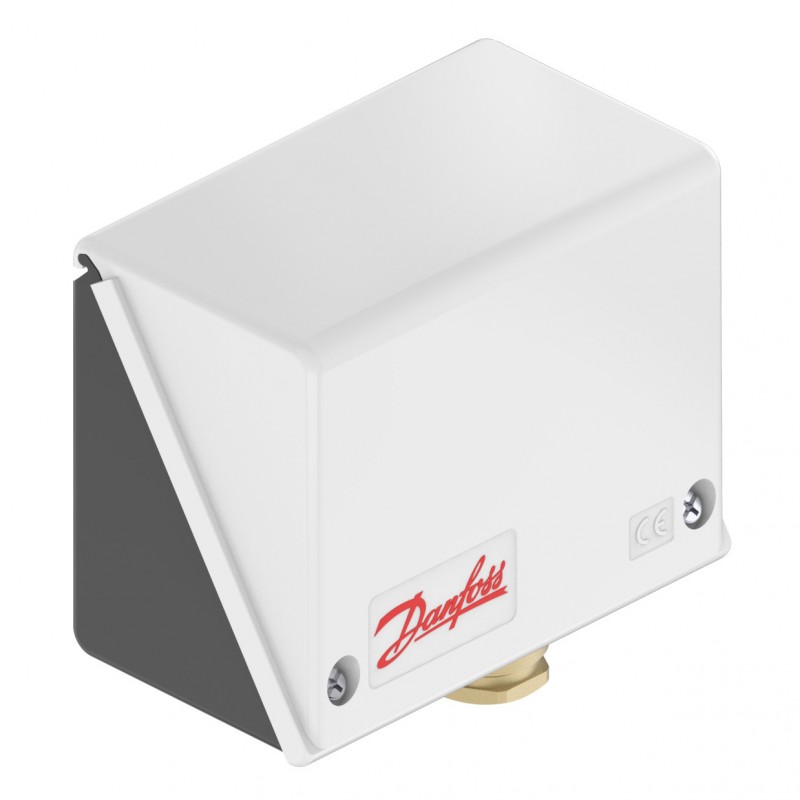

KPI36 060-319466 DANFOSS REFRIGERATION KPI36 давления переключатель I/30
KPI36
060-319466
DANFOSS REFRIGERATION
30
KPI36 давления переключатель I/30
KPI36 Реле давления I/30
Pressure switch, KPI36
Home > DANFOSS REFRIGERATION
* Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Описание
▲Regulation range [bar] Pe: 2.00 - 12.00, Differential [bar]: 0.50 - 1.60, Reset function: Auto, Pressure connection type: G, Pressure connection size: 1/4, Enclosure rating IP: IP55, Max. Working Pressure [bar]: 18.0
Product details
| Gross weight | 0.47 kg |
| Net weight | 0.41 kg |
| EAN | 5702423185634 |
| Gross weight | 0.47 kg |
| Net weight | 0.41 kg |
| EAN | 5702423185634 |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [Max] | 65 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 149 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | CCC CE CMIM EAC LLC CDC EURO-TYSK LVD PZH RINA RoHS China c UL us UL873, CS C22.2 |
| Contact function | SPDT |
| Contact rating | AC15=4 A, 440 V AC1=10 A, 440 V AC3=6 A, 440 V DC13=12 W, 220 V |
| Differential [bar] [Max] | 1.6 bar |
| Differential [bar] [Min] | 0.5 bar |
| Differential [psi] [Max] | 23 psi |
| Differential [psi] [Min] | 7 psi |
| Electrical conn. comments | Metal cable gland |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| EN 60947 electrical properties | Pollution degree: 3 Rated impulse voltage: 4 kV |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP55 |
| Identical product | 060-319366 |
| Max. test pressure [bar] Pe | 18 bar |
| Max. test pressure [psig] | 261 psig |
| Max. Working Pressure [bar] | 18 bar |
| Max. Working Pressure [psig] | 261 psig |
| Packing format | Industrial pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range category | Medium pressure |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product family name | KPI |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 30 pc |
| Regulation range [bar] Pe [Max] | 12 bar |
| Regulation range [bar] Pe [Min] | 2 bar |
| Regulation range [psig] Pe [Max] | 174 psig |
| Regulation range [psig] Pe [Min] | 29 psig |
| Reset function | Auto |
| Serviceable | No |
| Type | KPI36 |
| UL approval file name | E31024 |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [Max] | 65 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 149 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | CCC CE CMIM EAC LLC CDC EURO-TYSK LVD PZH RINA RoHS China c UL us UL873, CS C22.2 |
| Contact function | SPDT |
| Contact rating | AC15=4 A, 440 V AC1=10 A, 440 V AC3=6 A, 440 V DC13=12 W, 220 V |
| Differential [bar] [Max] | 1.6 bar |
| Differential [bar] [Min] | 0.5 bar |
| Differential [psi] [Max] | 23 psi |
| Differential [psi] [Min] | 7 psi |
| Electrical conn. comments | Metal cable gland |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| EN 60947 electrical properties | Pollution degree: 3 Rated impulse voltage: 4 kV |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP55 |
| Identical product | 060-319366 |
| Max. test pressure [bar] Pe | 18 bar |
| Max. test pressure [psig] | 261 psig |
| Max. Working Pressure [bar] | 18 bar |
| Max. Working Pressure [psig] | 261 psig |
| Packing format | Industrial pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range category | Medium pressure |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product family name | KPI |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 30 pc |
| Regulation range [bar] Pe [Max] | 12 bar |
| Regulation range [bar] Pe [Min] | 2 bar |
| Regulation range [psig] Pe [Max] | 174 psig |
| Regulation range [psig] Pe [Min] | 29 psig |
| Reset function | Auto |
| Serviceable | No |
| Type | KPI36 |
| UL approval file name | E31024 |
