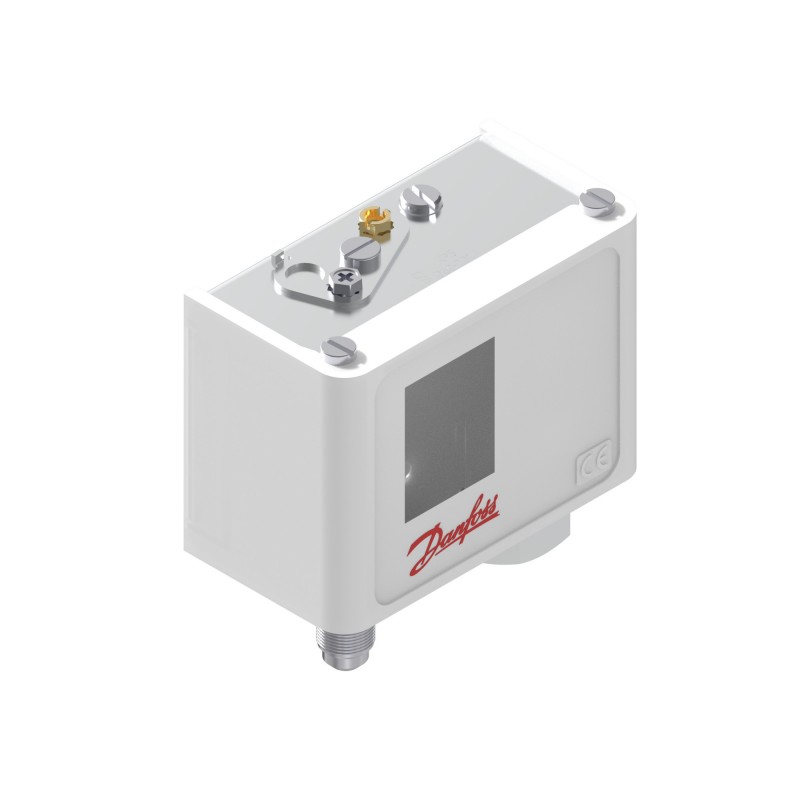

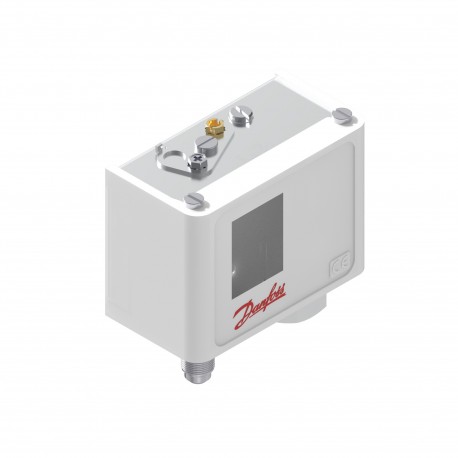

060-201466 DANFOSS REFRIGERATION Del KP5 Переключатель давления M/36
060-201466
DANFOSS REFRIGERATION
Del - KP5 Переключатель давления M/36
Pressure switch, KP5
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Regulation range [bar] Pe: 8.00 - 32.00, Differential [bar]: 1.80 - 6.00, Reset function: Auto, Pressure connection type: Flare, Pressure connection size: 1/4, Enclosure rating IP: IP30, Max. Working Pressure [bar]: 32.0
Product details
| Gross weight | 0.36 kg |
| Net weight | 0.33 kg |
| EAN | 5702428015233 |
| Gross weight | 0.36 kg |
| Net weight | 0.33 kg |
| EAN | 5702428015233 |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [Max] | 65 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 149 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | BV CCC CE CMIM DNV EAC GL LLC CDC EURO-TYSK LR LVD PZH RINA RMRS RoHS China c UL us UL873, CS C22.2 UKCA |
| Contact function | SPDT |
| Contact rating | 120Vac,16FLA,96LRA,3APilotDuty 16 A resistive, single phase 240 V ac, 8 FLA, 48 LRA 240V dc,12W pilot duty(0.05 A) 8 A resistive, single phase |
| Differential [bar] [Max] | 6 bar |
| Differential [bar] [Min] | 1.8 bar |
| Differential [psi] [Max] | 87 psi |
| Differential [psi] [Min] | 26 psi |
| Electrical conn. Male/Female | Female |
| Electrical connection | Swivel cable connector |
| Electrical connection size | NPSM 1/2 - 14 |
| EN 60947 electrical properties | Pollution degree: 3 Rated impulse voltage: 4 kV |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| Further information | Not applicable for liquid line |
| Lubricants compatibility | Oilfree applications |
| Max. test pressure [bar] Pe | 35 bar |
| Max. test pressure [psig] | 510 psig |
| Max. Working Pressure [bar] | 32 bar |
| Max. Working Pressure [psig] | 465 psig |
| Oil free refrigerants | R134a R513A R515B |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 8906 |
| Pressure connection type | Flare |
| Pressure Male/Female | Male |
| Pressure range category | High pressure |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product family name | KP |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 36 pc |
| Refrigerant oil compatibility | Oilfree applications R134a R513A R515B |
| Refrigerants | R113 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A R515B |
| Regulation range [bar] Pe [Max] | 32 bar |
| Regulation range [bar] Pe [Min] | 8 bar |
| Regulation range [psig] Pe [Max] | 464 psig |
| Regulation range [psig] Pe [Min] | 116 psig |
| Reset function | Auto |
| Serviceable | No |
| Type | KP5 |
| UL approval file name | E31024 |
| UL approved refrigerants | R113 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A R515B |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [Max] | 65 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 149 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | BV CCC CE CMIM DNV EAC GL LLC CDC EURO-TYSK LR LVD PZH RINA RMRS RoHS China c UL us UL873, CS C22.2 UKCA |
| Contact function | SPDT |
| Contact rating | 120Vac,16FLA,96LRA,3APilotDuty 16 A resistive, single phase 240 V ac, 8 FLA, 48 LRA 240V dc,12W pilot duty(0.05 A) 8 A resistive, single phase |
| Differential [bar] [Max] | 6 bar |
| Differential [bar] [Min] | 1.8 bar |
| Differential [psi] [Max] | 87 psi |
| Differential [psi] [Min] | 26 psi |
| Electrical conn. Male/Female | Female |
| Electrical connection | Swivel cable connector |
| Electrical connection size | NPSM 1/2 - 14 |
| EN 60947 electrical properties | Pollution degree: 3 Rated impulse voltage: 4 kV |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| Further information | Not applicable for liquid line |
| Lubricants compatibility | Oilfree applications |
| Max. test pressure [bar] Pe | 35 bar |
| Max. test pressure [psig] | 510 psig |
| Max. Working Pressure [bar] | 32 bar |
| Max. Working Pressure [psig] | 465 psig |
| Oil free refrigerants | R134a R513A R515B |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 8906 |
| Pressure connection type | Flare |
| Pressure Male/Female | Male |
| Pressure range category | High pressure |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product family name | KP |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 36 pc |
| Refrigerant oil compatibility | Oilfree applications R134a R513A R515B |
| Refrigerants | R113 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A R515B |
| Regulation range [bar] Pe [Max] | 32 bar |
| Regulation range [bar] Pe [Min] | 8 bar |
| Regulation range [psig] Pe [Max] | 464 psig |
| Regulation range [psig] Pe [Min] | 116 psig |
| Reset function | Auto |
| Serviceable | No |
| Type | KP5 |
| UL approval file name | E31024 |
| UL approved refrigerants | R113 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A R515B |
