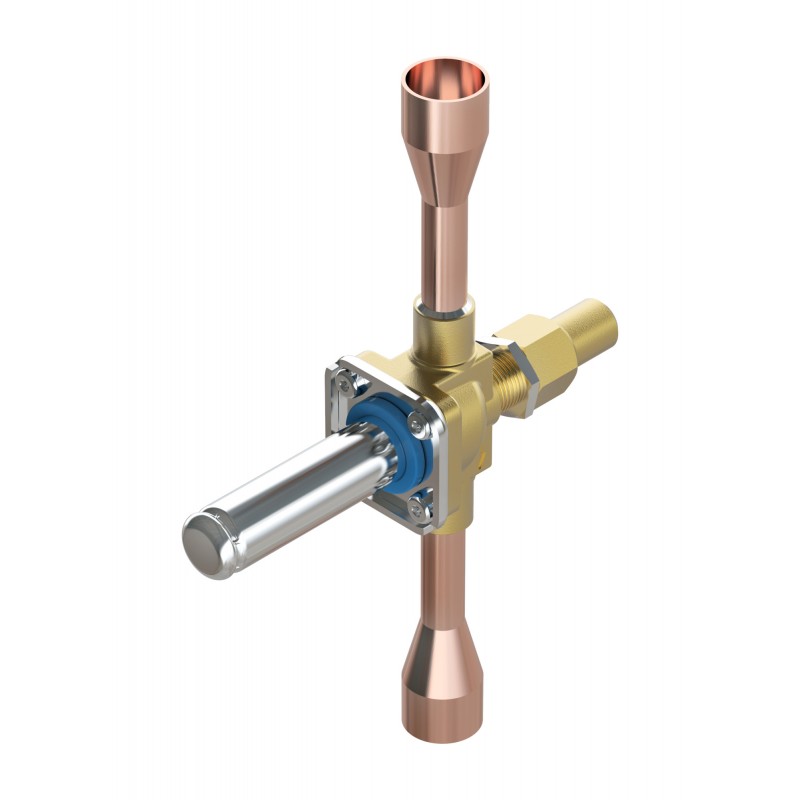

032L8130 DANFOSS REFRIGERATION EVR 8 Valve ODF 5/8in человек Multi 12
032L8130
DANFOSS REFRIGERATION
EVR 8 Valve ODF 5/8in человек Multi 12
Solenoid valve, EVR 8, SOLDER, ODF, 5/8 in, Function: NC
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Kv value [m³/h]: 1.090, Manual operation option: Yes, Packing format: Multi pack
Product details
| Gross weight | 0.34 kg |
| Net weight | 0.27 kg |
| EAN | 5702428960465 |
| Gross weight | 0.34 kg |
| Net weight | 0.27 kg |
| EAN | 5702428960465 |
| Actuator system [mm] | 13.5 mm |
| Approval | UL |
| Category | Art. 4, par. 3 |
| Coil | No |
| Cv value [gal/min] | 1.26 gal/min |
| Direction | Straightway |
| Fluid Group | 1;2 |
| Function | NC |
| Inlet connection type | SOLDER, ODF |
| Inlet size [in] | 5/8 in |
| Kv value [m³/h] | 1.09 m³/h |
| Manual operation option | Yes |
| Max. Working Pressure [bar] | 45.2 bar |
| Max. Working Pressure [psig] | 655 psig |
| MaxOPD[bar] 10W AC | 38 bar |
| MaxOPD[bar] 20W DC | 28 bar |
| MaxOPD[bar] coil BJ/BX | 38 bar |
| MaxOPD[psi] 10W AC | 550 psi |
| MaxOPD[psi] 20W DC | 406 psi |
| MaxOPD[psi] coil BJ/BX | 550 psi |
| Medium temperature range [°C] [Max] | 105 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 221 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| MinODP [bar] | 0.03 bar |
| MinODP [psi] | 0.44 psi |
| MOPD[bar/psi] | COIL DEPENDEND |
| Orifice size [mm] | 7 mm |
| Outlet connection type | SOLDER, ODF |
| Outlet size [in] | 5/8 in |
| Packing format | Multi pack |
| Parts Program name | EVR |
| Product accessories | Solenoid valve accessories |
| Product family name | EVR v2 |
| Product group | Solenoid valves |
| Product name | Solenoid valve |
| Quantity per packing format | 12 pc |
| Refrigerants | R1234yf R125 R134a R152a R22 R290 R32 R404A R407A R407C R407F R410A R417A R448A R449A R450A R452A R600 R600a R1234ze(E) R407H R413A R422A R422B R422D R438A R444B R447A R449B R452B R454B R454C R455A R463A R513A R513B R515A R515B R516A R442A R447B R512A R454A R507A |
| Serviceable | Solenoid valve spare parts |
| Type | EVR 8 |
| Type designation | Solenoid valve, Solder |
| UL approved refrigerants | R125 R134a R152a R22 R404A R407A R407C R407F R407H R410A R413A R417A R422A R422B R422D R438A R442A R447A R447B R448A R449A R449B R450A R452A R455A R463A R507A R512A R513A R513B R515A R515B R516A |
| Valve operation | SERVO-DIAPHRAGM |
| Actuator system [mm] | 13.5 mm |
| Approval | UL |
| Category | Art. 4, par. 3 |
| Coil | No |
| Cv value [gal/min] | 1.26 gal/min |
| Direction | Straightway |
| Fluid Group | 1;2 |
| Function | NC |
| Inlet connection type | SOLDER, ODF |
| Inlet size [in] | 5/8 in |
| Kv value [m³/h] | 1.09 m³/h |
| Manual operation option | Yes |
| Max. Working Pressure [bar] | 45.2 bar |
| Max. Working Pressure [psig] | 655 psig |
| MaxOPD[bar] 10W AC | 38 bar |
| MaxOPD[bar] 20W DC | 28 bar |
| MaxOPD[bar] coil BJ/BX | 38 bar |
| MaxOPD[psi] 10W AC | 550 psi |
| MaxOPD[psi] 20W DC | 406 psi |
| MaxOPD[psi] coil BJ/BX | 550 psi |
| Medium temperature range [°C] [Max] | 105 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 221 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| MinODP [bar] | 0.03 bar |
| MinODP [psi] | 0.44 psi |
| MOPD[bar/psi] | COIL DEPENDEND |
| Orifice size [mm] | 7 mm |
| Outlet connection type | SOLDER, ODF |
| Outlet size [in] | 5/8 in |
| Packing format | Multi pack |
| Parts Program name | EVR |
| Product accessories | Solenoid valve accessories |
| Product family name | EVR v2 |
| Product group | Solenoid valves |
| Product name | Solenoid valve |
| Quantity per packing format | 12 pc |
| Refrigerants | R1234yf R125 R134a R152a R22 R290 R32 R404A R407A R407C R407F R410A R417A R448A R449A R450A R452A R600 R600a R1234ze(E) R407H R413A R422A R422B R422D R438A R444B R447A R449B R452B R454B R454C R455A R463A R513A R513B R515A R515B R516A R442A R447B R512A R454A R507A |
| Serviceable | Solenoid valve spare parts |
| Type | EVR 8 |
| Type designation | Solenoid valve, Solder |
| UL approved refrigerants | R125 R134a R152a R22 R404A R407A R407C R407F R407H R410A R413A R417A R422A R422B R422D R438A R442A R447A R447B R448A R449A R449B R450A R452A R455A R463A R507A R512A R513A R513B R515A R515B R516A |
| Valve operation | SERVO-DIAPHRAGM |
Datasheet - PDF
